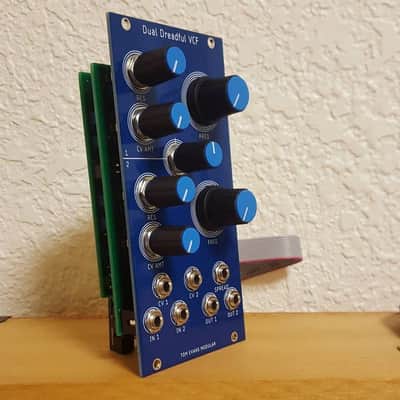

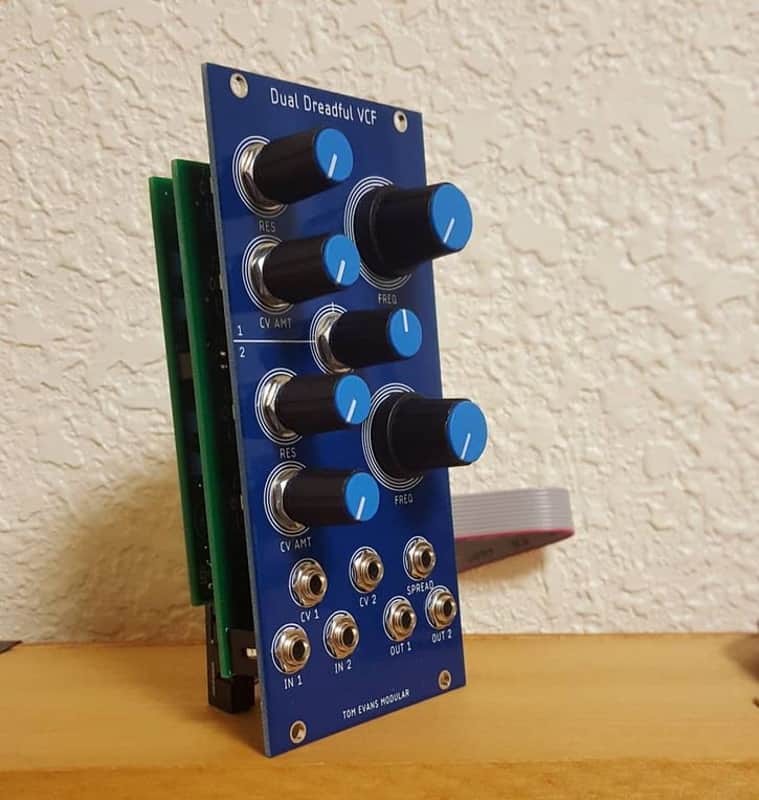

Tom Evans Modular Dual Dreadful VCF
Ce matériel a été vendu
Découvrez du matériel similaire proposé par d'autres vendeurs Reverb
Nos utilisateurs évaluent Reverb
The Dual Dreadful VCF is a 2-channel resonant low-pass filter. Each channel has an independent audio path with frequency and resonance controls and dedicated frequency CV input.
The filters have a shared Spread control on an attenuverter that causes the cutoff frequencies of each channel to move in opposite directions. Spread can also be controlled by CV.
Channel 1 Audio and CV inputs are normaled to channel 2. A mono signal into channel 1 will go through both filters in parallel.
Can self oscillate at high resonance and high resonance does not lose input signal bass response.
Specifications:
Pitch: 12hp
Power Requirements: +12V 30mA, -12V 30mA
Depth: 40mm
Blue FR4 material panel, Hand soldered components,
Eurorack power ribbon cable included
Please message me with any questions.
Thank you! Tom Evans
