Overview

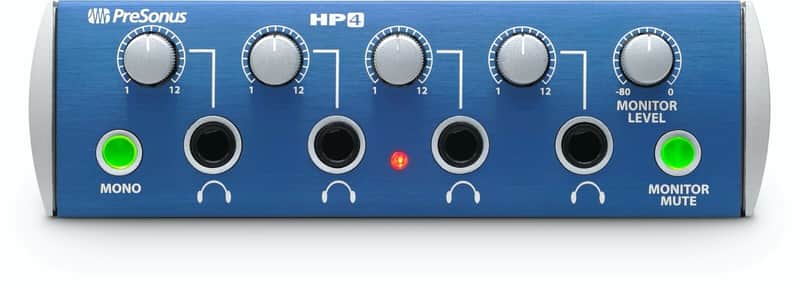

Tired of straining to hear the headphones? The HP4's four 130 mW headphone outputs are clear, clean, and screaming loud, all packed in a compact, 1/3U chassis. Features include balanced L/R line inputs and outputs, global mute, overall level control, and sum to mono. The line outputs can feed another HP4 or an HP60 for expanded monitoring setups.

Features

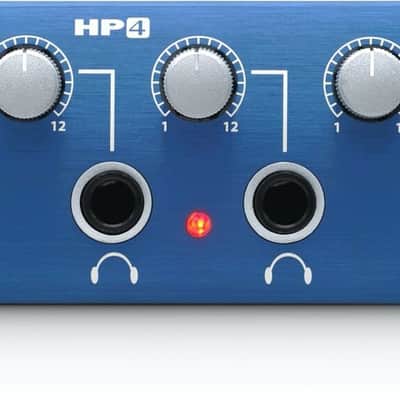

• Headphone Outputs: 4 stereo ¼” headphone outputs (130 mW per channel) on the front panel.
• Line Outputs: 2 balanced ¼” monitor outputs.
• Line Inputs: 2 balanced ¼” inputs.
• Headphone Level Control: Individual control for each channel.
• Mono Summing: Switch for each channel to sum stereo signal to mono.
• Monitor Level Control: Adjust overall monitor output.
• Monitor Mute Switch: Silence monitor outputs when needed.
• Daisy-Chaining: Connect multiple units via monitor outputs for expanded setups.

Physical

• Chassis: Compact 1/3U rack-mount design.
• Controls: Sealed, detented, metal rotary knobs for reliable operation.
• Power Supply: External 16 VAC adapter provided.
