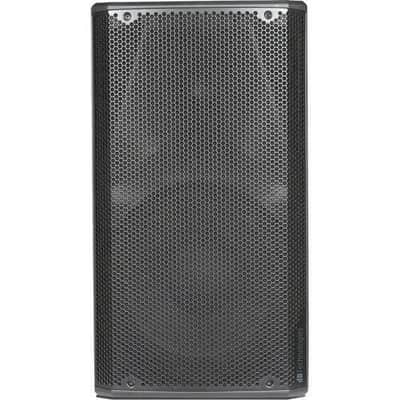

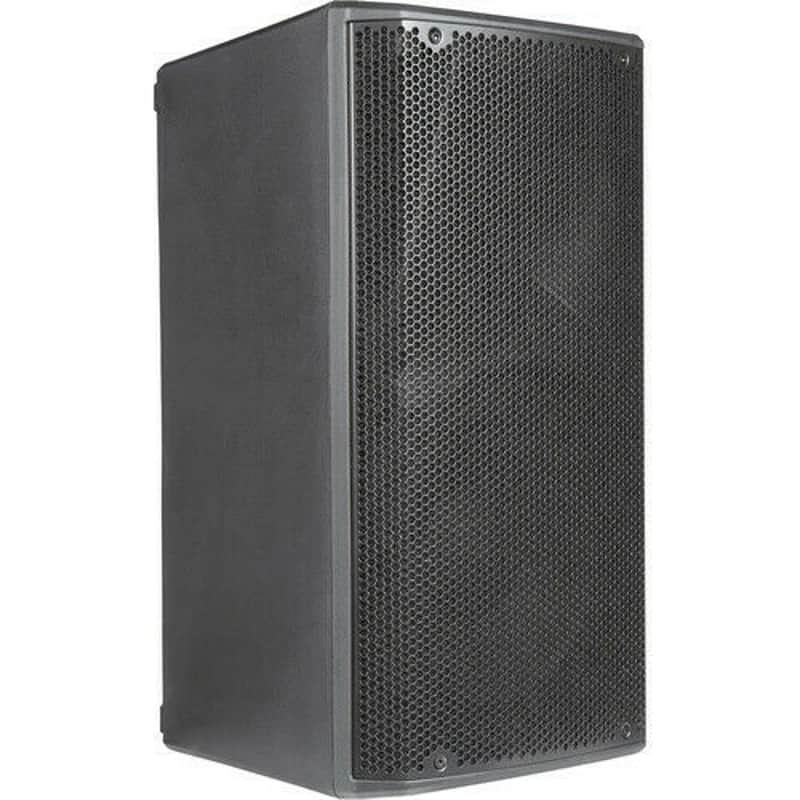

dB Technologies OPERA 12 Active Pro 12" Powered Speaker 1200W Amplified

dB Technologies OPERA-12 Active Professional 12" Powered Speaker 1200W Amplified

• With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range.
• Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.
• Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.
• The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Features

• 1200 W PEAK POWER
• 600 W RMS POWER
• NEWLY DESIGNED ASYMMETRICAL HORN
• ADVANCED DSP WITH FIR FILTERS
• 2 INPUT CHANNELS (MIC-LINE/MIC-INSTR)
• SELECTABLE OUTPUT CHANNEL (LINK CH1/MIX CH 1+2)
• 8 EQ PRESETS
• FRESH FULL GRILLE DESIGN
• STAGE MONITOR USE

Specifications

• Acoustical data
• • Frequency response [-10dB]: 52 - 20.000 Hz
  • Frequency response [- 3dB]: 67 - 19.600 Hz
  • Max SPL: 129 dB
  • HF: 1" exit, 1.4 v.c.
  • Type HF: compression driver
  • Horizontal directivity: 100° (85° up/120° down)
  • Vertical directivity: 85° (+ 25°/-60°)
  • Horn: asymmetrical horn
  • LF: 12", 2" v.c.
• Amplifier
• • Amp technology: amp SMPS power supply dual range
  • Amp class: class D
  • RMS power: 600W
  • Peak power: 1200W
• Processor
• • Controller: DSP 56 bit
  • AD/DA converter: 24 bit/48 KHz
  • System presets: rotary encoder (8 Presets)
  • Cross over frequency: 2000 Hz
  • Limiter: peak, RMS, thermal
  • Advanced DSP functions: linear phase FIR filters
• Input
• • Signal input 1 combo (XLR/jack 6.3 mm) mic/line, 1 combo (XLR/jack 6.3 mm) mic/inst
  • Signal output: 1 XLR male (ch1 link/mix out), selectable
• Mechanics
• • Housing: polyporpylene PP
  • Grille: full grille
  • Handles: 1 on left Side, 1 on Top
  • Rigging points: 2XM10 on top + 1x M10 on back
  • Pole mount: D36 mm
  • Angles up: monitor use 45°
  • Dimensions: 13.78" x 25.28" x 13.74" (W x H x D)
  • Weight: 31.53 lbs.
