STCA360-6Z | 360W 6-Zone 70V/100V Commercial Power Amplifier with Bluetooth, Optical, Phantom Power, for Restaurants, Lounges, Bars, Pubs, Schools

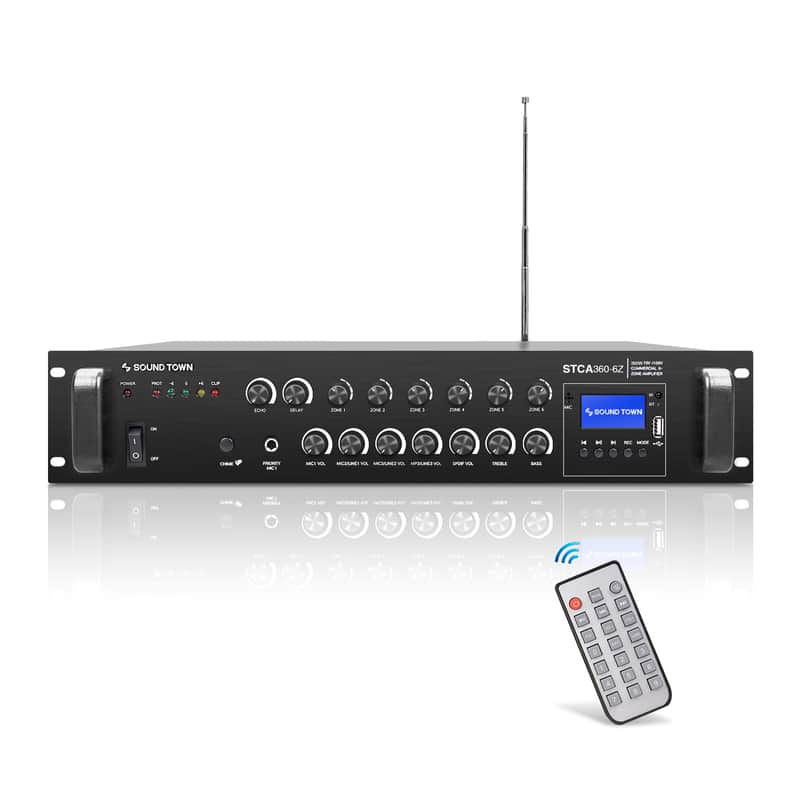

The Sound Town STCA360-6Z is a 6-zone 19” rack mountable commercial power amplifier. It comes with 360W RMS output and can be split into 6 zones. Its integrated clipping limiter protects your speakers and amp from overheating. Better yet, it is capable of 70-volt, 100-volt, 8-ohm, and 4-ohm and is ideal for applications such as restaurants, bars, pubs, schools and warehouse. Designed for commercial and public address applications.

The multi-zone power amplifier comes with RCA input, 3 mic inputs, Optical (SPDIF) input, and Bluetooth, USB, FM radio, FM antenna and RCA line output, 70V / 100V / 4~16-ohm red positive speaker output terminals and shared negative speaker output terminal.

FEATURES

• The commercial (public address) power amplifier has a 6-zone speaker output with individual volume control
• Two phantom-powered mic inputs make using condenser microphones convenient
• Versatile inputs with RCA, 3 mic inputs with 1 priority mic input on the front, Optical (SPDIF) input, USB input, FM radio tuner, FM antenna and Bluetooth for easy connection to audio streaming devices; each mic has repeat, speed, echo control
• Built-in clipping limiter and reliable cooling system protect your speakers and amplifiers from overheating
• The audio amplifier is ideal for multi-room applications or broadcasting system such as restaurants, lounges, bars, pubs, schools and warehouses


SPECIFICATIONS

Specifications

Model
STCA360-6Z  Output Power
360W RMS Output Type 70V/100V/4~16Ω Mic Input 3mV, 600 Ω Line Input
200mV, 10k Ω Frequency Range
50 Hz~20k Hz Distortion
0.5% (1k Hz) S/N Ratio AUX 88 dB S/N Ratio MIC 116 dB Voltage
AC110V~230V  Fuse Remote Controller Replacement

Dimension & Weight

Product Width (in.) 19.0" Package Width (in.) 20.9" Product Height (in.) 3.5" Package Height (in.) 6.9" Product Depth (in.) 15.3" Package Depth (in.) 18.7" Product Weight (lb.) 26.0 lbs Package Weight (lb.) 32.8 lbs

Warranty/Certifications

Manufacturer Warranty 1 Year

FAQ

Q: Can the amplifier support 8-Ohms on one channel and 70V on the rest?

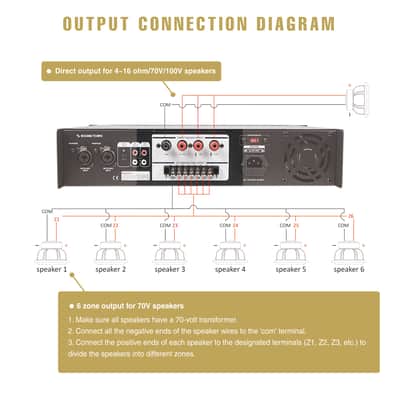

A: Distortion may occur when certain source signals exceed the input capacity. It's important to note that using 70V and 8-Ohm configurations simultaneously is not feasible. Specifically, the 6-zone cannot accommodate 8-Ohm speakers. If you intend to connect 8-Ohm speakers, they should be connected solely to the 4-16 Ohms terminal of the main output, with no connection to any other 70V terminals.

However, if all the speakers are rated for 70V, multiple speakers can be connected simultaneously. In this scenario, they can be connected to both the main output of 70V-100V and the 6-zone. Each zone within the 6-zone can handle approximately 200W but the total amplifier capacity is capped at 360W, including the main output and 6-zone sum.



Q: What type of speakers can the 6-zone connect to?

A: Speakers that do not have a transformer can't be connected to the 6-zone settings on the amp, it can only connect to the 4~16 ohm terminal and can only connect a certain amount depending on the impedance. If the impedance of one speaker is 8-ohm, 2 in parallel is 4-ohm, so the amp can only connect to two 8-ohm speakers. The 6-zone connection can only be connected to a high impedance speaker (with transformer). Connecting a low impedance speaker to a high output impedance amplifier causes impedance mismatching, resulting in amplifier malfunction or damage.



Q: Does it have the ability to connect an exterior medium such as a phone line or IP phone, or similar to be able to dial into it and page via a communication medium while not being directly in the same building as the amplifier itself?

A: No, the amp does not have IP communication.



Q: Can your amplifier work with multiple lines at different voltages at the same time; for example: 100V, 70V, 4 Ohms & 8 Ohms etc?

A: Low impedance 4-16 Ohms can't work at the same time with 70V/100V.



Q: What speaker wire should be used for this system?

A: Speaker wire is not included. To ensure optimal performance and minimize signal loss, select the appropriate wire gauge based on the distance between your amplifier and speakers:

Distance Wire Gauge 10–15 ft 18 AWG 15–25 ft 16 AWG 25–50 ft 14 AWG 50–100 ft 12 AWG Over 100 ft 10 AWG

Using a thicker (lower gauge) wire for longer runs helps maintain signal strength and overall audio quality.



Q: Can the USB tracks be randomized and not in the same order?

A: Yes
