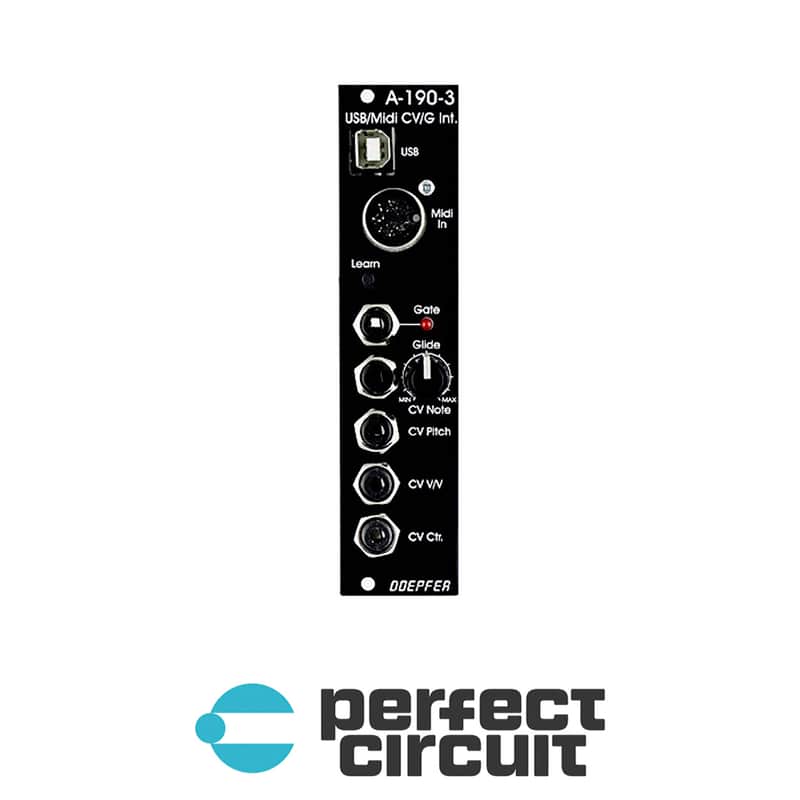

Module A-190-3v is a Midi/USB-to-CV/Gate interface that allows the integration of the A-100 system into a USB or Midi environment. It has available 4 analog control voltage outputs (CV1...4) and one Gate output. A-190-3 is the modular version of Dark Link.

The main difference between A-190-2 and A-190-3 is the additional USB interface of the A-190-3 and the type of LED display. The Midi control functions are the same for both modules (i.e. the function of note, program change and control change messages in learn mode). In the A-190-2 the LED shows the gate function (i.e. LED = on while gate = high / LED = off while gate = low). In the A-190-3 the LED is permanently on and turns off only for a short time when an incoming Midi message is recognized.

Features

  • USB
  • Midi Input
  • Learn button
  • Gate Out (with LED for Gate display and learn function), 0/+5V
  • CV1: controlled by Midi note messages, 1V/Octave, 0...+5V
  • CV2: controlled by Midi pitch bend, ~ -2.5...+2.5V or ~ 0...+5V (can be selected by an internal jumper)
  • CV3: controlled by Midi velocity, 0...+5V
  • CV4: controlled by Midi control change messages, free assignale controller in learn mode
  • Glide control (portamento function for CV1

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.learn more
Brand
Model
  • A-190-3v USB / MIDI-to-CV / Gate Interface (Vintage Series)
