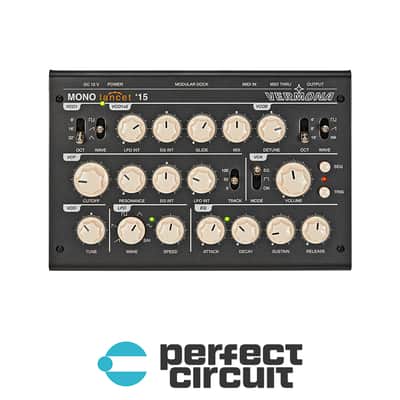

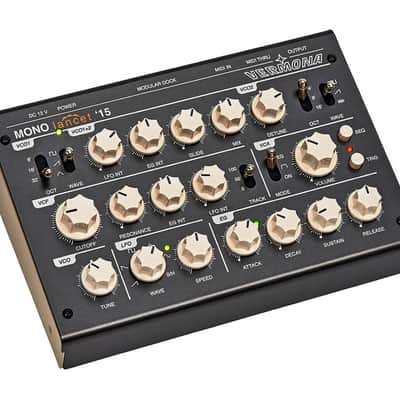

True greatness comes from within! The Mono Lancet is a compact synthesizer with a big sound, with an uncomplicated user interface and lots of charm.

Oscillators

Two analogue oscillators ensure a solid sound foundation. Oscillator one creates triangle-, sawtooth- and square waves and can be set one octave lower than the second oscillator. The latter produces white noise instead of the triangle wave.
The pulse width can be modulated via the modulation wheel (MIDI) and/or an external control voltage source (see “Extension”). The glide generator has a legato mode or (alternatively) can remain permanently active.

Filter

The voltage controlled lowpass filter has a slope of 24db per octave. On high resonance settings it self-oscillates, producing a stable sine wave that can be played in a range of about 2 ½ octaves. Using MIDI the cutoff frequency can be controlled by velocity and/or aftertouch.

Amplifier

There’s a strong VCA inside the Mono Lancet that can be modulated by the ADSR or a fixed organ-like envelope. On demand it can additionally respond to velocity.

Modulation

The classical ADSR envelope generator can modulate the VCO- and VCF frequency and the VCA. The LFO has six waveforms (ramp, saw, square, triangle, sine and sample and hold) and is a modulation source for VCF and VCO.

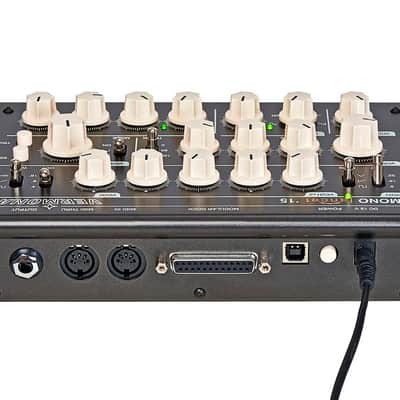

Extension

There’s a 25pin sub-D connector on the rear of the Mono Lancet. The optional “Mono Lancet Modular Dock” widens the potential of the synthesizer enormously through numerous in- and outputs for control voltages and audio signals. PWM and filter inputs are just two of these.
