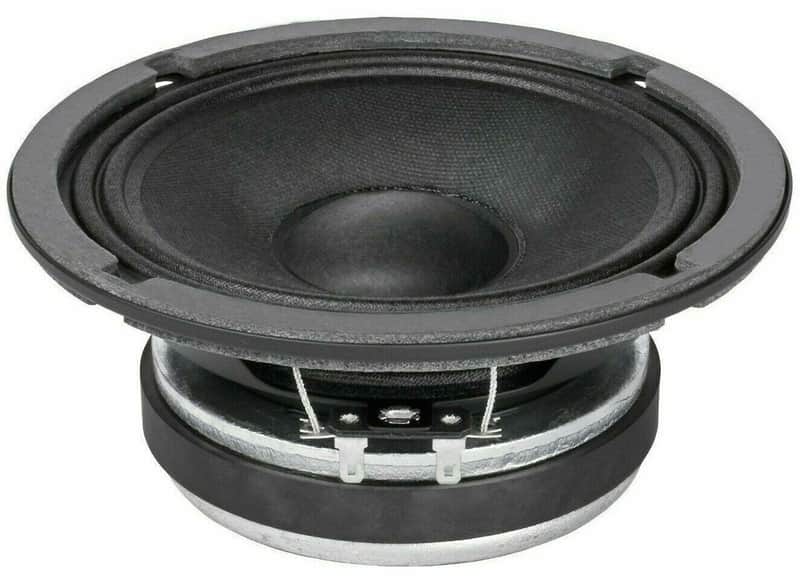

Faital Pro 8FE200 8" Midrange / Midbass 260 Watts Car Audio Speaker 8-Ohms 95dB Woofer

Nominal Specifications

Nominal Diameter

• 200 mm (8 in)

Overall Diameter

• 209.2 mm (8.24 in)

Bolt Circle Diameter

• 196.9 mm (7.75 in)

Baffle Cutout Diameter

• 178 mm (7.01 in)

Depth

• 89 mm (3.50 in)

Flange and Gasket Thickness

• 8 mm (0.31 in)

Net Weight

• 2.2 Kg (4.7 lb)

Shipping Box
(Single Carton Box)

• 227 x 224 x 113 mm
  (8.9 x 8.8 x 4.4 in)

Shipping Weight

• 3 Kg (6.6 lb)

Technical Parameters

Nominal Impedance

• 8 Ohm

Minimum Impedance

• 6.8 Ohm

AES Power Handling (1)

• 130 W

Maximum Power Handling (2)

• 260 W

Sensitivity (1W/1m)

• 95 dB

Frequency Range

• 60÷5000 Hz

Voice Coil Diameter

• 37 mm (1.46 in)

Winding Material

• Al

Former Material

• Kapton

Winding Depth

• 12 mm (0.47 in)

Magnetic Gap Depth

• 8 mm (0.31 in)

Flux Density

• 1 T

Magnet

• Ferrite Ring

Basket Material

• Steel

Demodulation

• No

Cone Surround (3)

• Triple Roll

NET Air Volume filled by Loudspeaker

• 0.6 dm^3 (0.021 ft^3)

Spider Profile

• 1x constant height waves

Thiele and small parameters

Fs

• 80 Hz

Re

• 5.9 Ohm

Qes

• 0.66

Qms

• 13.0

Qts

• 0.63

Vas

• 13.6 dm^3 (0.48 ft^3)

Sd

• 191 cm^2 (29.61 in^2)

Xmax (4)

• 4.67 mm

Xdamage (5)

• 10.4 mm

Mms

• 15.0 g

Bl

• 8.2 N/A

Le

• 0.44 mH

Mmd

• 13.5 g

Cms

• 0.26 mm/N

Rms

• 0.6 Kg/s

Eta Zero

• 1.02 %

EBP

• 121 Hz

PART NUMBER (P/N)

Faston Terminals - 8 Ohm Version

• 02004018

Notes: (1) 2 Hours Test According to AES 2-1984 Rev. 2003 (2) Maximum power is defined as 3dB greater than nominal power. (3) Treated Polycotton (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) (5) Maximum excursion before permanent damage
