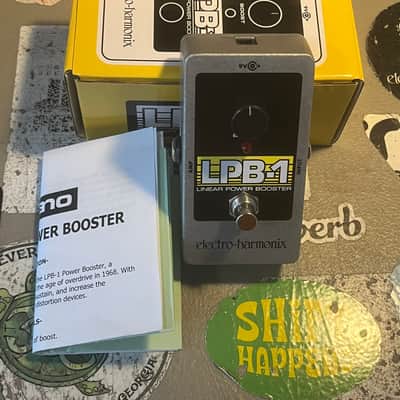

Gently Used.

An exact recreation of the original LPB-1 circuit that ushered in the
age of overdrive in 1968. Put the LPB-1 in line with any effect to
provide boost and definition. Improve the gain and saturation of your
amp.

Quick Specs

- True bypass - Tough and compact die-cast chassis - 9-volt battery included - Optional 96DC-200BI power supply available - Dimensions in inches: 2.75 (w) x 4.5 (l) x 2.1 (h) - Dimensions in inches: 2.75 (w) x 4.5 (l) x 2.1 (h)

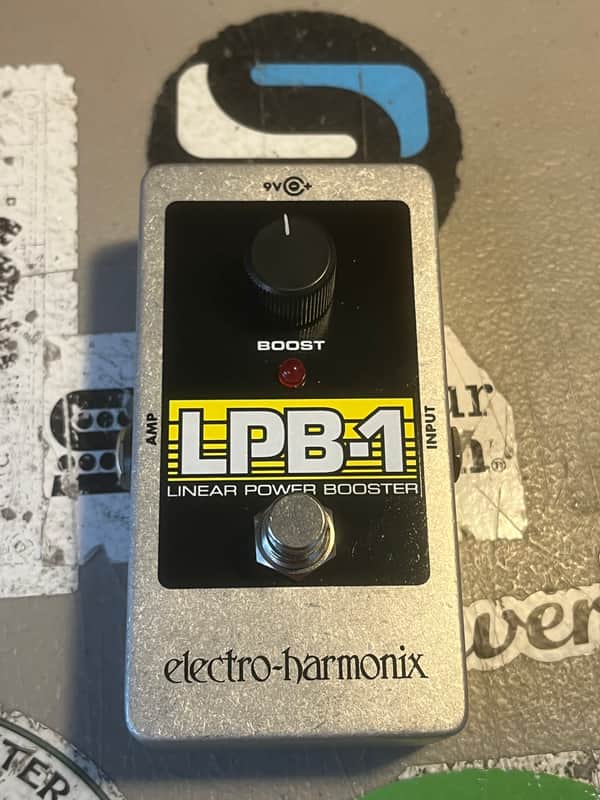

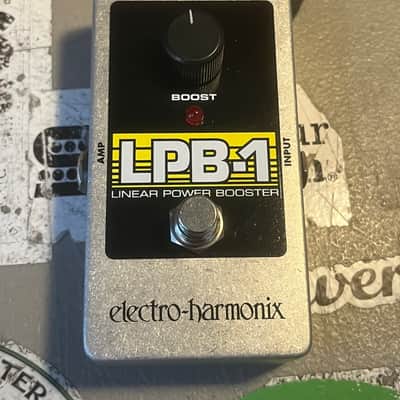

-CONTROLS-

BOOST CONTROL- Adjusts the amount of boost.

FOOTSWITCH- Engages and disengages the effect. When the LED is on the pedal is engaged. When off, it is in True Bypass mode.

-OPERATION AND WARNINGS-

Power, from the internal 9-volt battery or external battery
eliminator, is activated by plugging into the input. The input cable
should be removed when the unit is not in use to avoid running down the
battery. The input impedance presented at the Input Jack is 43 kohms.
The output impedance at the Output Jack is 10 kohms.

The barrel connector on the front of LPB-1 is for a 9-volt battery
eliminator capable of delivering 100 mA of current. The inner ring of
the 9-volt battery eliminator must be negative, the outer ring positive.
The units battery may be left in or taken out when the eliminator is
in use.

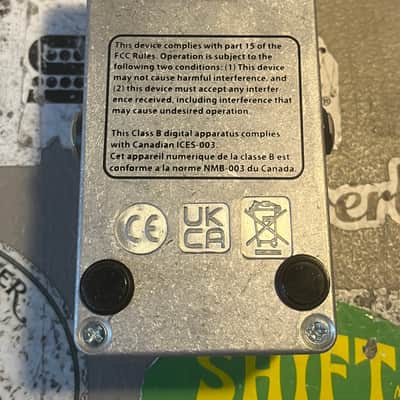

To change the 9-volt battery, you must remove the 4 screws on the
bottom of the LPB-1. Once the screws are removed, you can take off the
bottom plate and change the battery. Please do not touch the circuit
board while the bottom plate is off or you may damage a component.

The optional 9V power supply from Electro-Harmonix is US96DC-200BI
(same as used by Boss (tm) & Ibanez(tm)) 9.6 volts/DC 200ma. The
barrel connector on the front of the LPB-1 is for the 9-volt battery
eliminator capable of delivering 100 mA of current. The inner ring of
the 9-volt battery eliminator must be negative, the outer ring positive.
The units battery may be left in or taken out when the eliminator is
in use.
