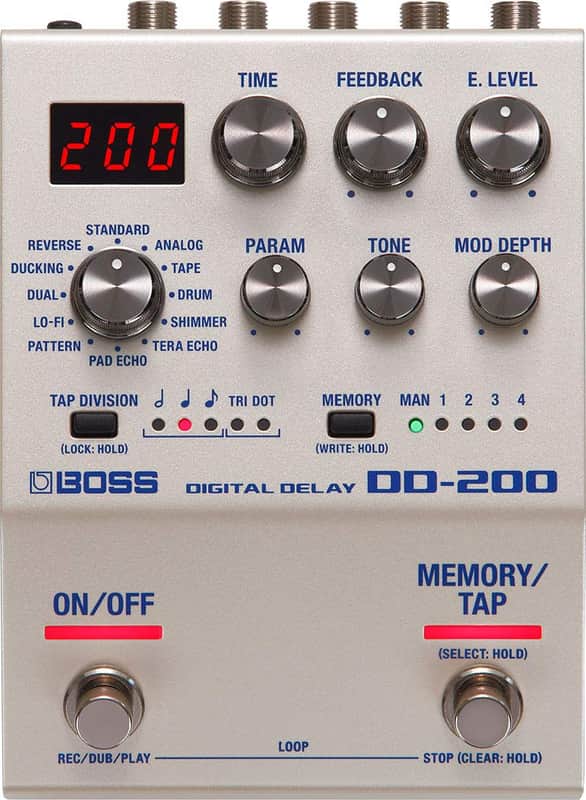

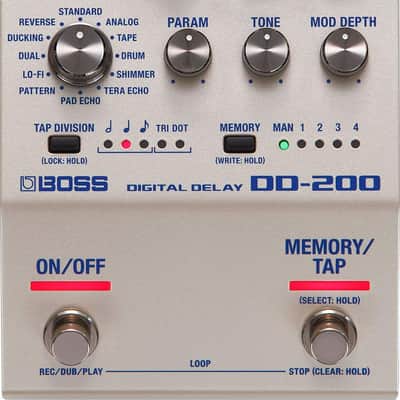

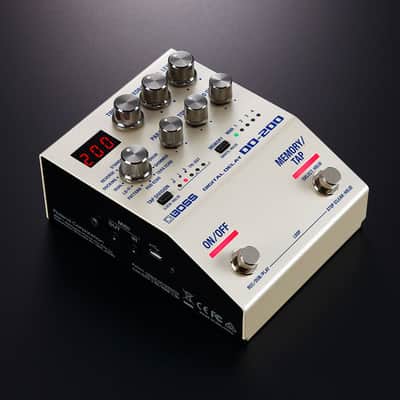

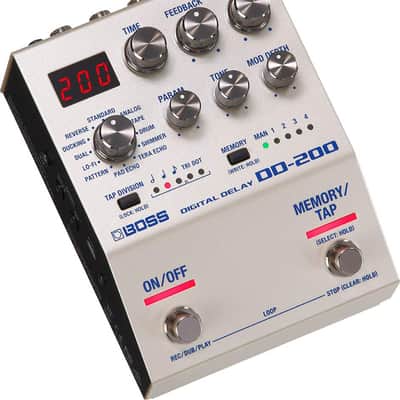

Boss DD-200 Digital Delay

Austin Bazaar is an authorized Boss dealer.

Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate

Twelve versatile modes provide a wide range of delay types

Fast, easy operation with hands-on controls

Real-time panel setting and four memories for storing favorite sounds

Phrase looper with up to 60 seconds of recording time

SIMPLY SOPHISTICATED: With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit AD/DA, 32-bit internal processing, and 96 kHz sampling rate, as well as support for additional control via external switches, an expression pedal, or MIDI. The DD-200 Digital Delay brings together sounds and features inherited from the flagship DD-500 into an even smaller footprint. Twelve different modes offer an inspiring variety of delay colors from modern digital to classic analog, letting you dial up everything from basic echoes to rich ambient pads and everything in-between. There?ÇÖs also a looper that?ÇÖs always ready to use, plus a selectable carryover function for seamless transitions between memories.

Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Modes: 12 modes (STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSE)
Memory: 4 + Manual
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +7 dBu
Input Impedance: INPUT A/MONO, B: 2 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: ON/OFF switch, MEMORY/TAP switch, MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob, TAP DIVISION button, MEMORY button
Display: 7 segments, 3 characters (LED)
Indicator: TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators

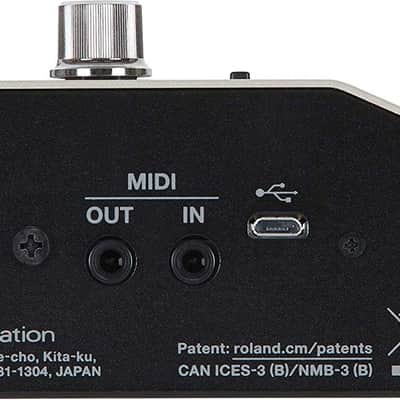

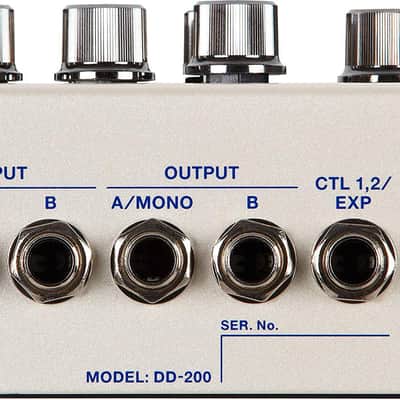

Connectors: INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type, CTL 1, 2/EXP jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: Stereo miniature phone type, DC IN jack, USB port: USB micro B-type (program update only)
Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw: 225 mA
Expected Battery Life Under Continuous Use: Alkaline: Approx. 4 Hours,* These figures will vary depending on the actual conditions of use
Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 3, Rubber foot x 4
Options (sold separately): AC adaptor: PSA-S series, Footswitch: FS-5U, Dual footswitch: FS-6, FS-7, Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5, TRS/MIDI cable: BMIDI-5-35
SIZE AND WEIGHT
Width: 4 inches
Depth: 5-7/16 inches
Height: 2-1/2 inches
Height (including rubber foot): 2-9/16 inches
Weight: 1 lb 6 oz
Weight (including battery): 1 lb 8 oz

SKU: BOS-DD-200
