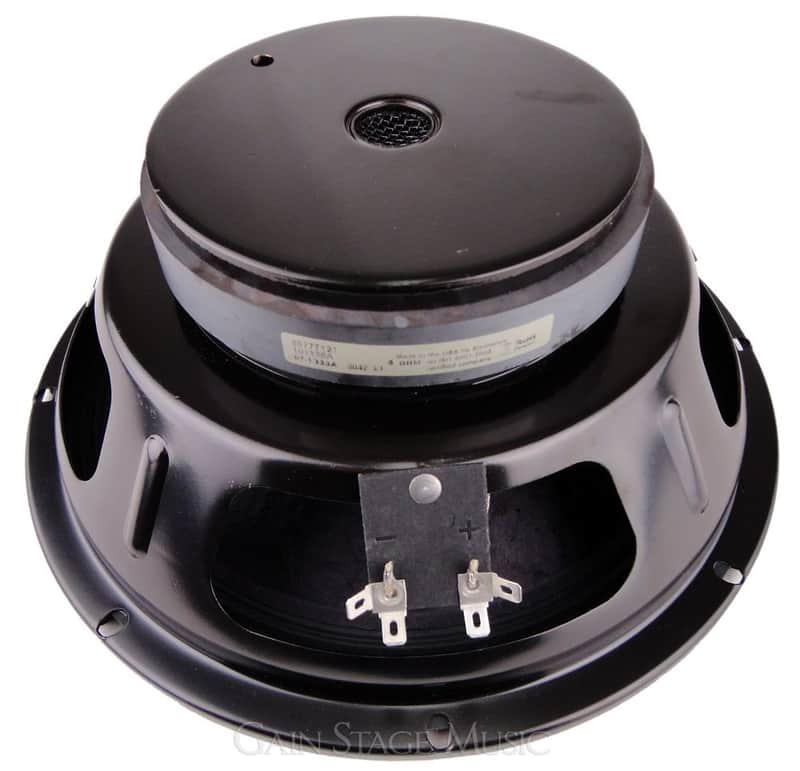

This made in the USA speaker from Peavey makes a killer addition to any bass cabinet out there.

Peavey uses these as stock in the following models: 410TX, 210TX, Combo 210TX, 810TX, T-Max 210, Classic 810TX, Classic 410TX, 210TXR, 210TXF, 410TXF, 210TVX, 410 TVX and 810TVX.

Features:

  • 10"
  • Impedance: 8 Ohms
  • Power capacity: 300 W Peak 150 W Program 75 W Continuous
  • Sensitivity: 89.1 dB 1 Watt / 1 meter
  • Usable frequency range: 60 Hz ~ 4 kHz
  • Cone: Kevlar® impregnated cellulose
  • Voice coil diameter: 1.75" / 44.4 mm
  • Voice coil material: 2 layers, thermally bonded copper wire Kapton former Nomex® stiffener
  • Net weight lb. / kg: 7.4 lbs. / 3.4 kg
  • Znom (ohms) 8
  • Revc (ohms) 5.88
  • Sd (Square Meters) 0.335
  • BL (T/M) 9.37
  • Fo (Hz) 49.3
  • Vas (liters) 38.7
  • Cms (uM/N) 243.5
  • Mms (gm) 42.8
  • Qms 4.030
  • Qes 0.880
  • Qts 0.720
  • Xmax (mm) 3.5
  • Le (mH) 0.14
  • SPL (1W 1m) 89.1
  • No (%) 0.5%
  • Vd (cu. in. / ml) 7.1 / 117
  • Pmax (Watts pgm.) 150

Dimensions 10.125" W x 10.125" H x 4.375" D (Unpacked)
7.5 lbs. (Unpacked)
