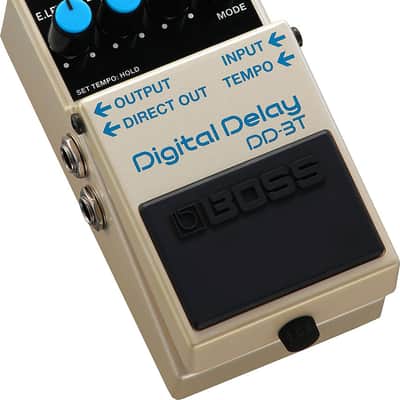

Boss DD-3T Digital Delay Pedal

Austin Bazaar is an authorized Boss dealer.

Delay time of 12.5 to 800 ms, divided into three ranges for quick setup

Tap in tempos with the onboard pedal switch or an external footswitch

Direct output for sending dry and wet sounds to separate amps

Main and direct output jacks now positioned on one side of the pedal

Short Loop setting for creating phrase loops (same as the Hold function on the original DD-3)

BOSS's iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we've updated the classic stomp with enhanced functionality while fully retaining the original's sound and control layout. It's now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.

PRODUCT SPECS

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass

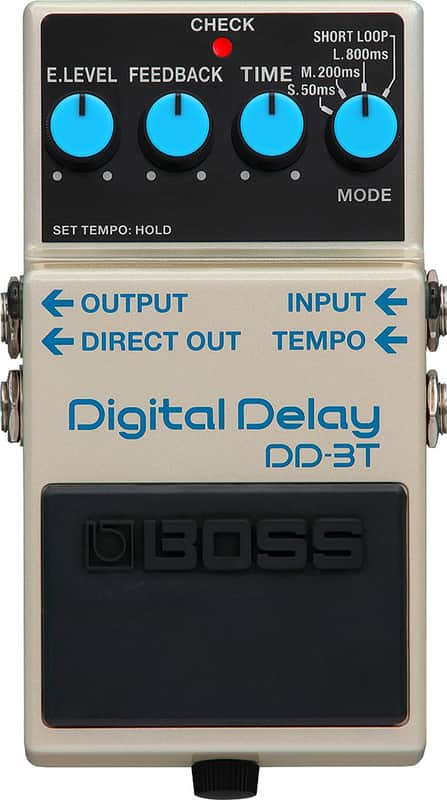

Controls: MODE knob, TIME knob, FEEDBACK knob, E.LEVEL(Effect Level) knob, Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)
Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DIRECT OUT jack: 1/4-inch phone type, TEMPO jack: 1/4-inch phone type, DC IN jack
Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 45 mA
Expected battery life under continuous use: Alkaline: Approx. 11.5 hours, Carbon: Approx. 3 hours *These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)
Options (sold separately): AC adaptor: PSA series, Footswitch: FS-5U, FS-6, FS-7

SIZE AND WEIGHT: Width 73 mm (2-7/8 inches), Depth 129 mm (5-1/8 inches), Height 59 mm (2-3/8 inches), Weight (including battery)420 g (15 oz)

SKU: BOS-DD-3T
