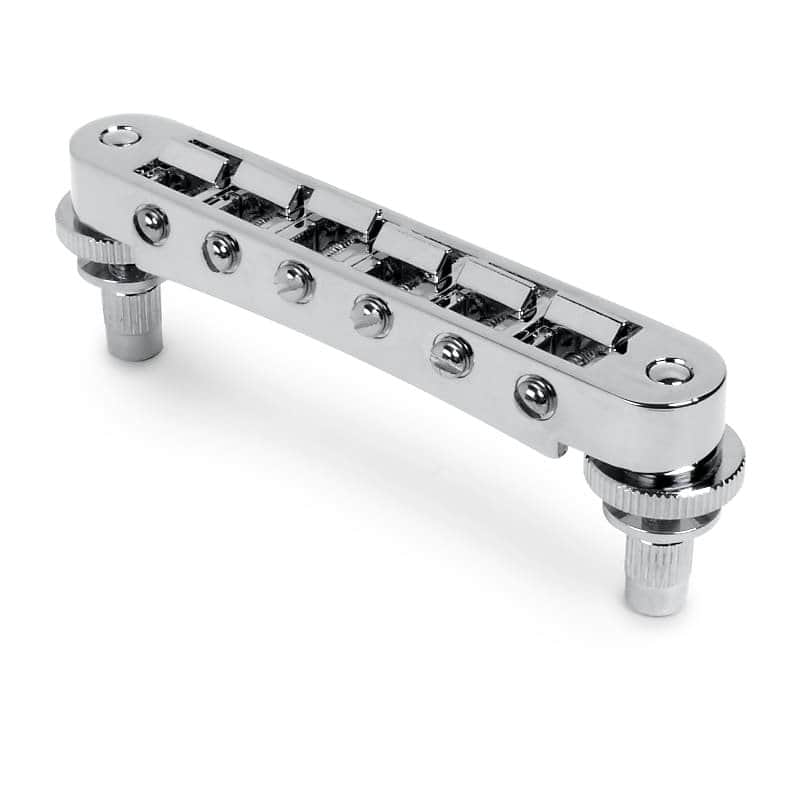

Nashville Tune-o-matic Bridge, Chrome, with studs and bushings
This seller has not set a shipping cost for Luxembourg. Please contact them to ask about shipping.
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
The adjustable bridge design found on current Gibson solidbodies, with unnotched saddles with individual saddle screw retainer clips.
Thumbwheel height-adjustment studs and bushings are included.
Use a 1/4" drill bit to install the bushings.
Dimensions:
- String Spread: 2-1/32"
- Saddle Radius: 12"
- Post Spacing: 2-15/16"
- Post Threads: M5 x .8
About bridge & tailpiece measurements
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or 'stop' tailpiece.
Tip: Slotting Tune-o-matic style saddles
Nut slotting files work great for metal saddles. Choose your file size as you would when slotting a nut: use the same gauge as the string, or a few thousandths larger.
