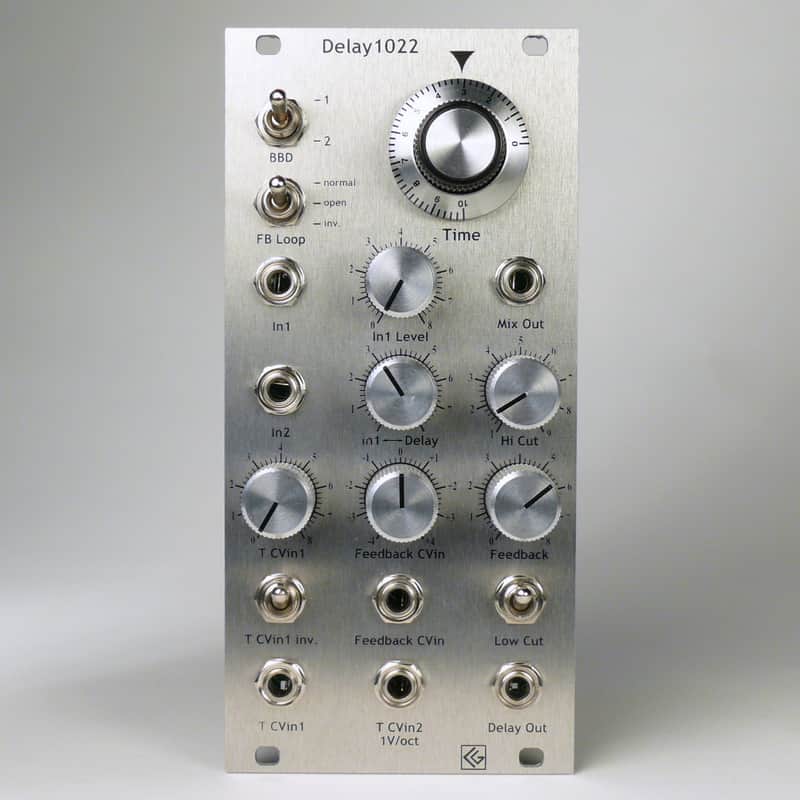

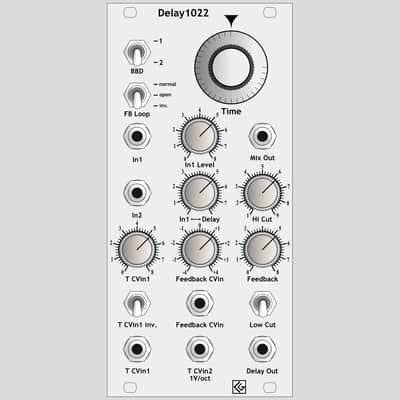

Delay 1022 - analog BBD delay - minijack version

Analog BBD delay with voltage controllable feedback
This module is no classic echo, but a delay with short delay times designed for audio rate feedback.
It can be used - triggered and/or in feedback mode - as its own synthesizer voice or for VCO-like applications (Karplus-Strong synthesis). It has a good 1V/oct. tracking over several octaves and suits well for creating drum and string-like sounds. A manually controllable lowpass filter and the feedback VCA are enhancing the sound modelling options.
Furthermore, the Delay1022 allows frequency modulation of audio signals as well as flanging and phasing effects or the realization of room ambience and spatial depth.
There is a certain amount of noise, as to be expected from analog BBD delay modules, however the Delay1022’s clear and brillant sound in combination with the manually controllable output low pass filter makes this completely tolerable.

• Width: 12 HP (60,6 x 128,5 mm)
• Depth:  ca. 52mm
• Delay times from 2,5 to 50ms (without CV input)
• CV controllable delay time (good 1V/oct. tracking)
• Feedback CV control input
• 2nd delay output behind feedback-controlling VCA
  - Delay muting
  - Noise reduction
  - Effect inserts
• Manually controllable 12dB lowpass: 'Hi Cut'
  - Sound control
  - Noise reduction
• Switchable highpass: 'Low Cut'
• Power consumption ca 90mA
