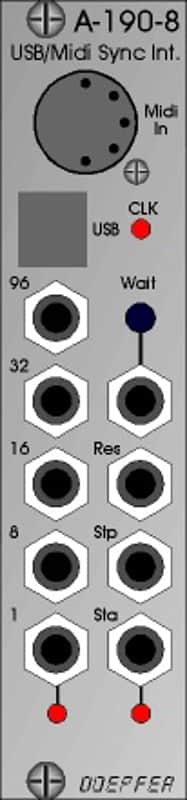

Midi input (recognizes only Midi realtime messages clock, start, stop and continue)
USB input for Midi via USB
Clock outputs:

• 96: outputs the Midi clock 1:1 (96 pulses per measure/ppm or 24 pulses per quarter note/ppq)


• 32: outputs the Midi clock divided by 3 (32 pulses per measure/ppm or 8 pulses per quarter note/ppq)


• 16: outputs the Midi clock divided by 6 (16 pulses per measure/ppm or 4 pulses per quarter note/ppq)


• 8: outputs the Midi clock divided by 12 (8 pulses per measure/ppm or 2 pulses per quarter note/ppq)


• 1: outputs a pulse at the start of each measure

Other outputs:

• Start: outputs a pulse at each Midi Start or Continue message or generates a gate signal that remains in the high state until a Midi Stop message occurs (selectable via jumper)


• Stop: outputs a pulse at each Midi Stop message


• Reset: outputs a pulse at each Midi Start message that follows a Midi Stop message


• Wait control input, can be selected by means of a jumper between Gate function or Switch function: in Gate mode the positive edge of a gate signal is used to init the Wait state, in Switch mode an external switch that connects to GND is used to init the Wait state (equivalent to Switch-Trigger)


• Wait button / Wait control input: Whenever the Wait button is operated or a positive voltage is applied to the Wait input the module waits for the next measure start until the clock signals are generated.


• LED displays for clock, "1" and start (display of Start depends upon the chosen Start mode, see above)

output voltages can be selected between +5V and +12V by means of an internal jumper (for DIN Sync applications +5V has to be used !)

firmware updates via USB (provided that there will be updates available)
Technical Specs.:

• Width: 6HP


• Depth: 50mm


• Current Draw: 50mA
