This kit is NOT recommended for beginners!

The Klein Bottle was designed for the noise makers, soundscape artists, endless tinkerers and tone wizards. This epic pedal starts by splitting the input signal into three FX loops. Each FX loop has dedicated controls for pre-gain, HPF/LPF (bandwidth filters), and main mix level. This allows you to send different parts of the signal to different effects, and blend them all back together to create new tones out of your existing pedals.

But wait, there's more! The magic happens when you use the independent feedback controls to send the signal from one FX loop into another...and then back again! Keep your existing tone intact with the DRY knob, while layering a cornucopia of sonic goodness on top.

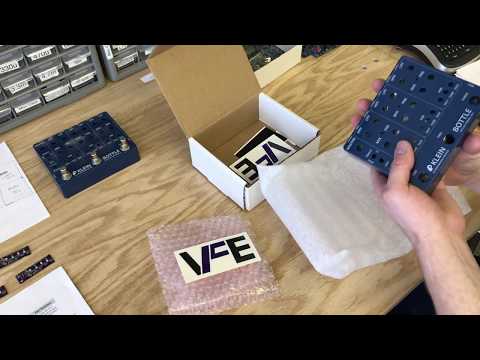

This DIY kit includes the enclosure (drilled, painted w/graphic as seen in the picture), PCB with soldered switching MCUs & op amps, potentiometers, footswitches, jacks, pre-cut & stripped wires, LEDs, and 15mm silver knobs.

This kit DOES NOT include the small circuit components (resistors, capacitors, through-hole ICs, etc.) that will be installed into the PCB. The time & cost to manually sort out all the parts would add more cost to the kit than the price you can get from Mouser or other part distributors directly. Mouser has a massive, highly automated distribution center. I would need to put all parts in the same bag, but Mouser will ship different parts in separate, labeled bags. Because of this, it is both cheaper and simpler to purchase these parts from Mouser directly.

After you order, I will send you links to all DIY documentation, including the schematic, board files, Mouser parts list, and more.

DIMENSIONS:
Enclosure dimensions: 5.7"W x 4.7"L x 1.5"H (145 x 119 x 38mm)
With knobs & jacks: 6.1"W x 4.9"L x 2.3"H (155 x 124 x 58mm)

POWER: Industry-standard 2.1mm, negative-tip DC power supply. Accepts 9V up to 18V (recommended).

INPUT IMPEDANCE: 1M-ohm

CURRENT DRAW: ~70ma @ 9V, ~130ma @ 18V

Shipping is included to the United States, $16 to Canada and $22 worldwide using USPS 1st Class International (fully insured).
