Rane MP2015 Rotary 4 Channel DJ Mixer

Rane MP2015 Rotary 4 Channel DJ Mixer

Key Features

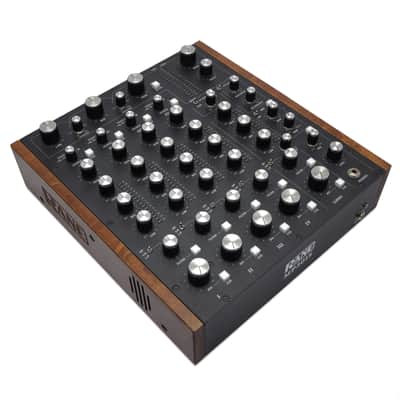

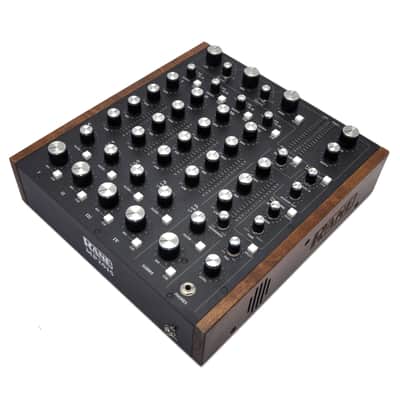

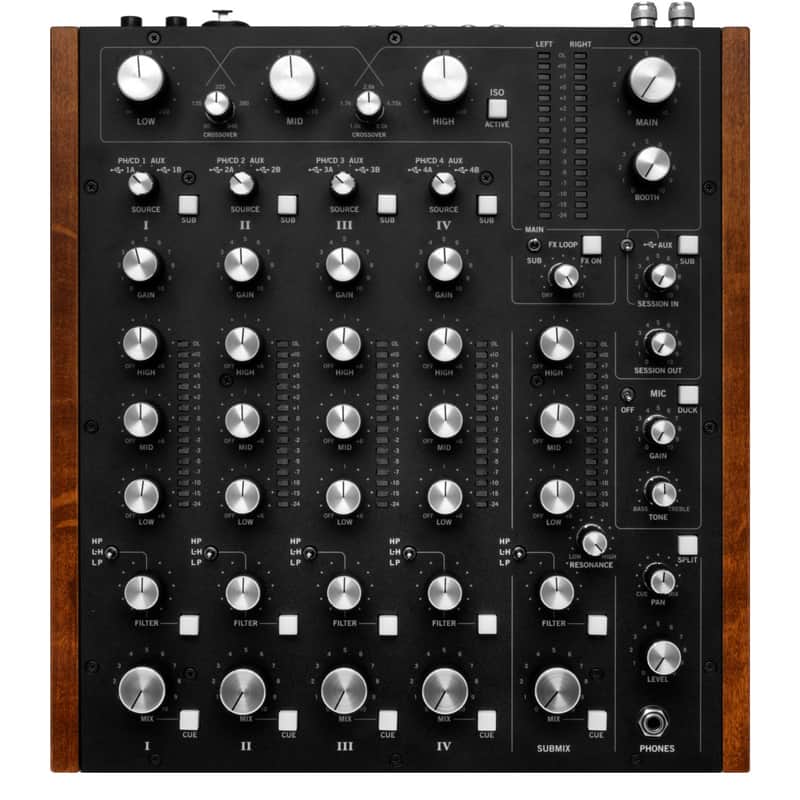

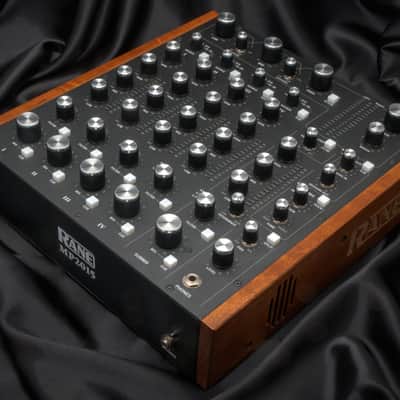

• Rotary Design Architecture: 4-channel rotary mixer featuring a solid chassis with classic laser-etched wood side panels and spun-aluminum knob caps.
• High-Resolution Audio: Designed for playback of 24-bit studio master quality sources, supporting sample rates of 44.1 kHz, 48 kHz, or 96 kHz.

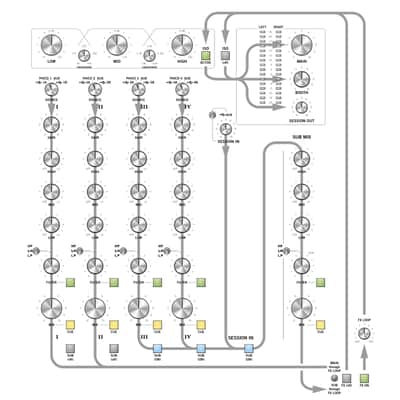

• Submix Channel: A unique input channel that allows grouping of any number of inputs for multi-source mixing and collective filtering/EQing.
• Isolator EQ Section: Proprietary 3-band output isolator with 24 dB/octave slopes and continuously adjustable crossover points (80 Hz–640 Hz and 1 kHz–8 kHz).
• Versatile Sweep Filters: Each input channel and the submix feature a sweepable filter with a toggle for Low-Pass (LP), High-Pass (HP), or L-H combo modes.
• Dual USB Interfaces: Equipped with two USB ports to support two computers simultaneously, facilitating seamless DJ changeovers.
• Studio-Quality Preamps: Features gold RCA connectors and true studio-quality phono preamplifiers with RIAA filter accuracy of +0.1/-0.2 dB.
• Extensive Software Compatibility: Certified for use with Serato DJ Pro, Traktor, and Virtual DJ.
• FlexFX Loop: Includes a stereo unbalanced 1/4" TS FlexFX send and return loop for integrating external effects hardware.

Technical Specifications

• Digital Signal Processing: 32-bit floating point.
• ADCs/DACs: 24-bit; supports 44.1, 48, or 96 kHz sample rates.
• Dynamic Range: 116 dB A-weighted (Digital/USB to Line Out).
• THD+N: 0.0009%.
• Frequency Response: 20 Hz to 20 kHz ±0.25 dB.

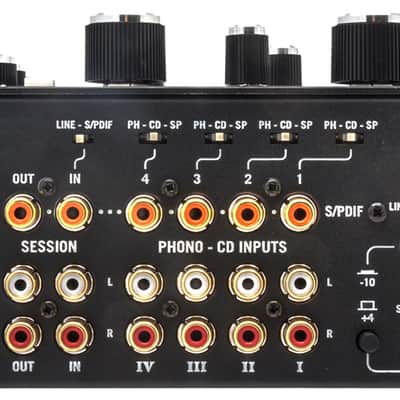

• Analog Inputs: (4) Phono-CD-S/PDIF switchable deck inputs; (1) XLR/TRS combo Mic input with phantom power.
• Digital Inputs: (4) S/PDIF RCA deck inputs; (1) Session S/PDIF RCA input.
• Main Outputs: Balanced XLR (Max 8 Vrms).
• Booth Outputs: Balanced 1/4" TRS (Max 8 Vrms).
• Session Outputs: Unbalanced RCA or S/PDIF digital.
• Headphone Outputs: (1) 1/4" top jack, (1) 1/4" front jack, and (1) 3.5mm front jack.
• USB Audio: 7 stereo record and 5 stereo playback channels per port.
• Unit Dimensions: 14" H x 13.1" W x 4.3" D (35.5 cm x 33.3 cm x 8.3 cm).
• Weight: 12.6 lbs. (5.7 kg).
