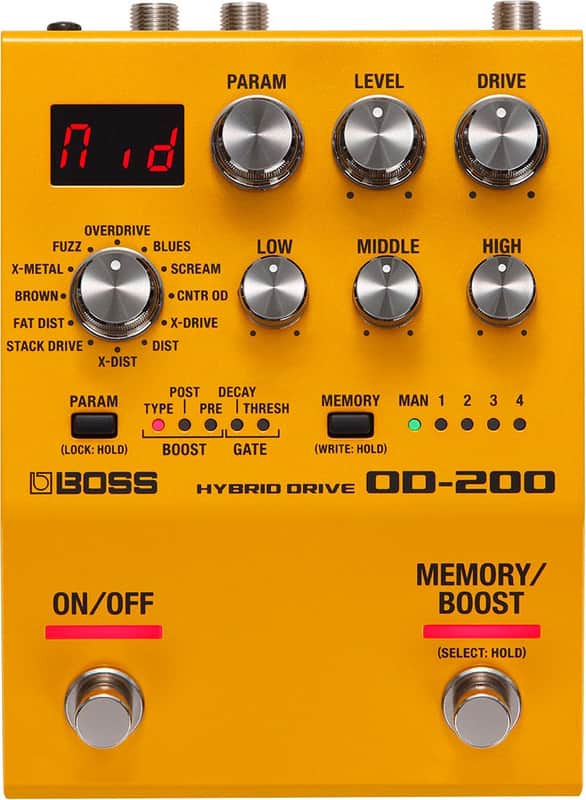

Boss OD-200 Hybrid Drive Pedal

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit AD/DA, 32-bit internal processing, and 96 kHz sampling rate, plus support for additional control via external switches, an expression pedal, or MIDI.

The OD-200 Hybrid Drive brings next-level sound, feel, and flexibility to overdrive and distortion, combining decades of BOSS tone expertise with innovative technologies. Powered by hybrid analog/digital circuitry, this dream pedal delivers any drive tone you can imagine via 12 primary modes, 15 boost types, series/parallel gain paths, and more. There’s even an advanced gate on board, ideal for both eliminating noise and adding tightness to high-gain drive tones.

Sampling Frequency 96 kHz AD/DA Conversion 32 bits Processing 32-bit floating point Drive Circuit Analog + Digital Modes 12 modes
OVERDRIVE, BLUES, SCREAM, CNTR OD, X-DRIVE, DIST, X-DIST, STACK DRIVE, FAT DIST, BROWN, X-METAL, FUZZ Memory 4 + Manual Nominal Input Level INPUT: -10 dBu Maximum Input Level INPUT: +7 dBu Input Impedance INPUT: 1 M ohm Nominal Output Level OUTPUT: -10 dBu Maximum Output Level OUTPUT: +7 dBu (Load Impedance: 220 k ohms or greater) Output Impedance OUTPUT: 1 k ohms Recommended Load Impedance OUTPUT: 10 k ohms or greater Bypass Buffered bypass Controls ON/OFF switch, MEMORY/BOOST switch
MODE knob, DRIVE knob, LEVEL knob, PARAM knob, LOW knob, MIDDLE knob, HIGH knob
PARAM button, MEMORY button Display 7 segments, 3 characters (LED) Indicator PARAM indicator, MEMORY (MAN, 1--4) indicators Connectors INPUT jack, OUTPUT jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only) Power Supply Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately) Current Draw 220 mA Expected Battery Life Under Continuous Use Alkaline: Approx. 6 Hours
* These figures will vary depending on the actual conditions of use. Accessories Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4 Options (sold separately) AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI cable: BMIDI-5-35 SIZE AND WEIGHT Width 101 mm
4 inches Depth 138 mm
5-7/16 inches Height 63 mm
2-1/2 inches Height (including rubber foot) 65 mm
2-9/16 inches Weight 600 g
1 lb 6 oz Weight (including battery) 670 g
1 lb 8 oz * 0 dBu = 0.775 Vrms *The specifications are subject to change without notice.
