Horita TR-100 SMPTE Time Code Reader: Large .8" LED Display
Condition:
This unit is in Mint Condition - ideal to display a bright, real-time SMPTE TC Readout across the room or through the window. It is an invaluable tool to expedite tracking overdubs: giving accurate, split-second location updates to the performer(s) in the tracking room or iso booth.
Includes original User's Manual/Engineering Application Guide. Includes Power Supply.
Ideal for a video production suite, a voice-over booth, or a tracking studio with an isolated control room. Also has a built-in SMPTE-synchronized MIDI Time Code generator, the unit is capable of synching LTC to MTC to run a MIDI sequencer or ADAT system.
Description

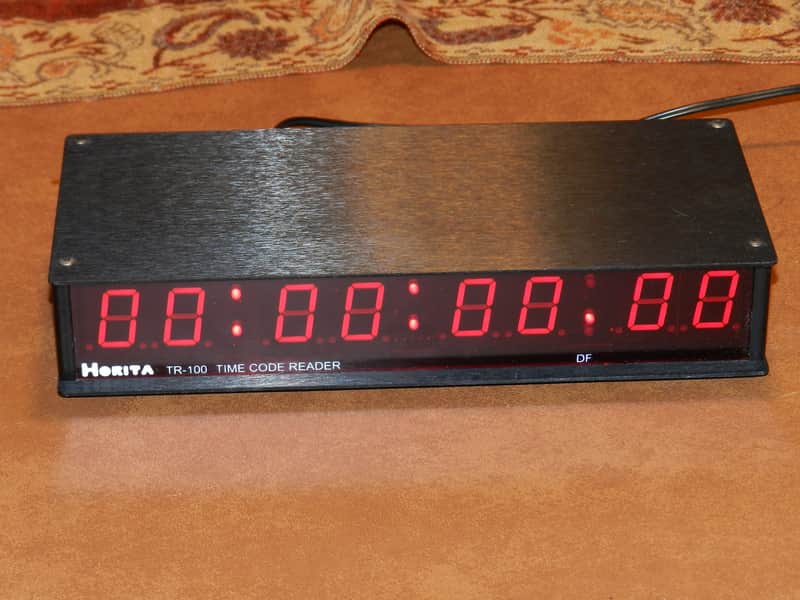

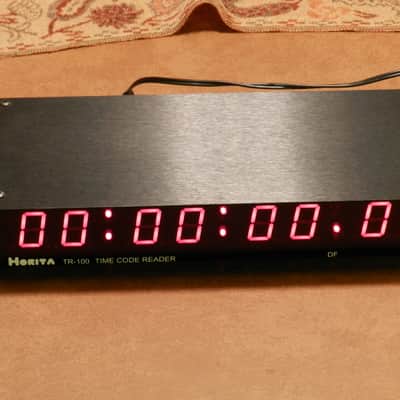

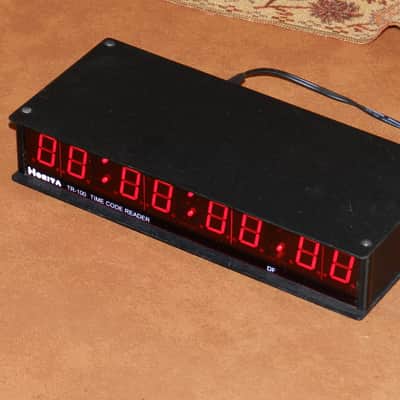

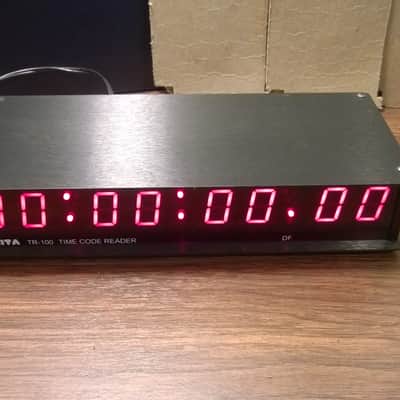

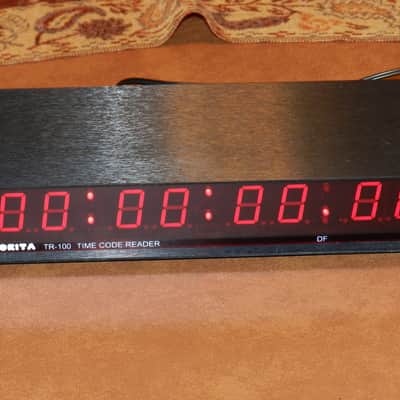

The TR-100 is an LTC reader featuring an adjustable brightness 0.8-inch LED display. The brightness control allows comfortable use in bright light or in a dimly lit studio, while the 0.8 character height is good for up close or across the room viewing.
The TR-100 also translates LTC time code into MIDI Time Code (MTC) for use in the audio/video workshop.
Features
- High Speed Reader: can read from 1/30th to over 10x play speed in either forward or reverse tape direction.
- Auto Select: Auto frame-read selects between 24 FPS (film), 25 FPS (PAL), 29.97 (NTSC drop frame) and 30 FPS (audio) time codes (FPS- frames-per-second)
- Large 0.8"LED TC display, auto-select frame rate and MIDI translation capabilities
- Outputs reshaped time code for time code copying needs
- Operates from 9 volt DC, supplied with an AC adapter
- Measures 1.5H x 8.5W x 3.25
- Can be can be rack or wall mounted by using an appropriate adapter kit
| Listed | 7 years ago |
|---|---|
| Condition | Mint (Used) Mint items are in essentially new original condition but have been opened or played.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
