Overview

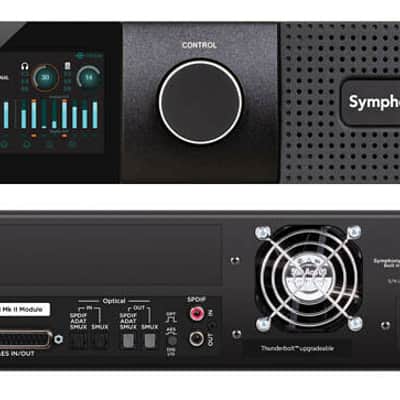

Symphony I/O Mk II HD is designed for the Pro Tools HD user who needs a multi-channel audio interface with the best sound quality at an incredible cost per channel value. Whether using a Mac or PC based studio, Symphony I/O Mk II HD can connect directly to your Pro Tools HDX, Pro Tools HD Native or Pro Tools Core/Accel systems. Symphony I/O Mk II HD can be utilized alongside or in place of Avid® or Digidesign® interfaces for Pro Tools HD. In fact, each I/O module installed in Symphony I/O Mk II HD appears and functions in Pro Tools HD the same if it were a separate Avid HD I/O interface, so set up is easy and you can take advantage of important Pro Tools features such as sample-accurate delay compensation. A single Symphony I/O Mk II HD unit can have up to 32 simultaneous analog I/O, so you can have more channels with less rack gear. Need even more channels? You can utilize multiple units simultaneously, with one Symphony I/O Mk II HD per every Pro Tools HD port in your system. Calibrating your I/O is easy with Symphony I/O Mk II HD’s front panel touchscreen.

Legendary Sound Quality

Apogee engineers have made it their passion to improve every new flagship product by using the latest in electrical components and designing optimized circuitry that often exceeds the expectations of the component manufacturer. This is the Apogee Advantage. Symphony I/O Mk II is the culmination of this 30 year commitment and raises the bar on all Apogee products before it with even better audio clarity and sonic transparency. In fact, when equipped with either the new 8×8 or 16×16 Mk II I/O modules, Symphony I/O Mk II outperforms all other multi-channel audio interfaces available for Pro Tools HD or Thunderbolt based systems, making it the flagship audio interface for the entire professional audio industry and the obvious choice for countless GRAMMY winning artists, producers, songwriters and engineers.

• Best performance of any multi-channel Pro Tools HD interface

• Best cost per channel value of any Pro Tools HD interface solution

• Connects directly to any Pro Tools HD system (Mac or PC)

• Emulates Avid HD I/O interface, including sample-accurate delay compensation

• Connect multiple units in a single system (1 unit per HD port)

• Easy I/O calibration with front panel touchscreen

INPUTS

• Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
• *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
• (192k single wide compatible)
• *Optical IN: Supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz
• SMUX: 8 channels 88.2-96 kHz
• S/PDIF: 2 channels, up to 96 kHz
• Coax IN: 2 channels of S/PDIF, up to 192 kHz

OUTPUTS

• Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
• *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
• (192k single wide compatible)
• *Optical OUT: Supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz
• SMUX: 8 channels 88.2-96 kHz
• S/PDIF: 2 channels, up to 96 kHz
• Coax OUT: 2 channels of S/PDIF, up to 192 kHz

*Dig I/O hardware switch selects AES or Optical digital I/O format

Connection:

• Pro Tools HD Core card
• Pro Tools Accel PCI card
• Pro Tools HD Native PCI card
• Pro Tools HD Native Thunderbolt
• Pro Tools HDX PCI card

Performance:

• 44.1kHz – 192kHz
• Sample accurate compatibility with Pro Tools Delay Compensation

Computer:

• Mac or PC

Control:

• Front panel touchscreen

Compatible Software:

• Pro Tools HD 9 or greater
