Elite Core PMA Personal Monitor Stereo Headphones / Earphones Amplifier
This seller has not set a shipping cost for Sweden. Please contact them to ask about shipping.
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb

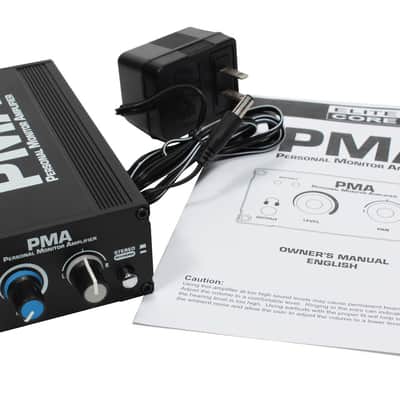

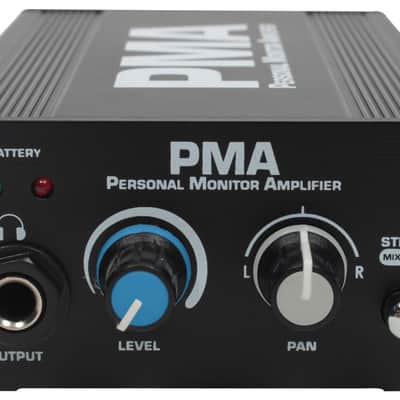

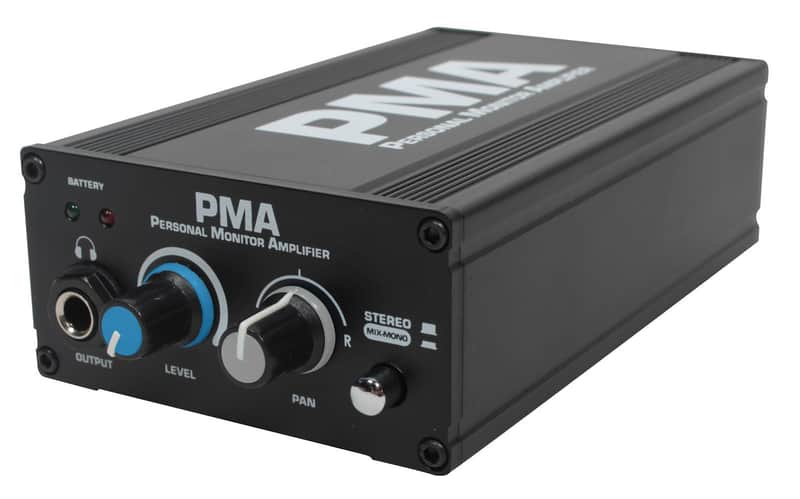

The Elite Core PMA is a high-powered stereo or mix-mono personal monitor headphone amp designed to provide loud and clear monitoring through headphones or earphones. Signals from AUX outs are connected to the inputs of the PMA via combo XLR/TRS jacks. Headphones or earphones are powered by a strong 50mW per channel amplifier. The PMA can be conveniently mounted onto standard mic stand threads. Powered by the included 9V adapter, or by a 9V battery.
Features
- 2 Direct Symmetric Combo XLR/TRS Inputs
- Stereo or Mix-Mono Mode Selection
- Level & Pan Controls
- Sturdy Aluminum Case
- 5/8" - 27 internal threads on bottom - suitable for mounting on standard microphone stand or SA001 stand adapter
- Operates with 9V Battery or included AC/DC adapter
Spec:
Dimensions: 170x93x47mm
Net Weight: 0.4kg
Input Jacks: 2 x Combo XLR/TRS
Output Jack: 1/4" Stereo
Frequency Response: 30Hz-20kHz ±2dB
Min Headphone Impedance: 16 ohms per side
Input Impedance: 15 Kohm
Nominal Input Level: 0dBV
Maximum Input Level: +4dBV
Limit Input Level: +5dB
Maximum Output Power (into 20ohm): 50mW per channel
Maximum Operating Current: 40mA
Power Supply: 9V Battery
DC Input Socket: DC 9V (PIN - / RING +)
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
