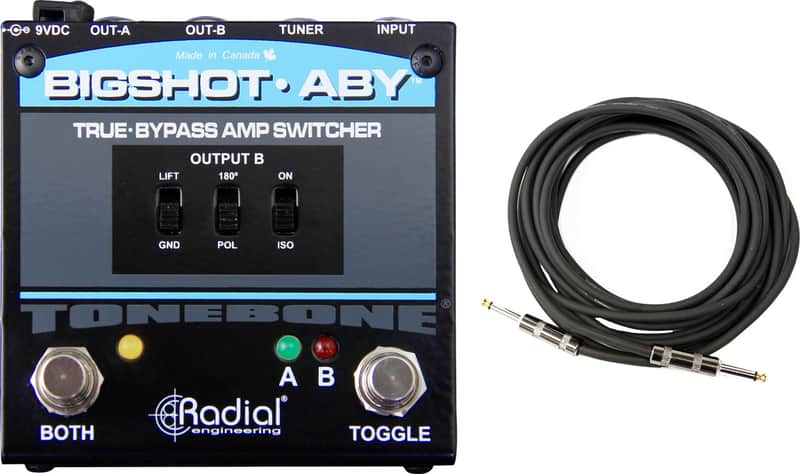

The Radial BigShot ABY is a compact ABY switcher that enables you to either switch between two amplifiers or combine the signal when you want both amps to play at the same time.Designed for the purist, this true-bypass ABY switcher is completely passive meaning that there are no tone altering buffers in between the guitar and the amplifier. With the BigShot ABY, you get the pure tone from your guitar plugged direct into your amp! To add versatility, the BigShot ABY is also equipped with a separate tuner out. This 'always on' output feeds your tuner for constant monitoring while keeping it out of the signal chain. Should you experience hum and buzz problems due to ground loops, the BigShot ABY comes to the rescue with a built-in isolation transformer and ground lift switch. Once engaged, you can toggle the polarity of the second amplifier to ensure both amps play in absolute phase.In use, the BigShot ABY is both simple to use and efficient on stage. When powered by an external 9V supply or pedalboard power brick, full size super-bright LEDs spring to life to provide instant on-stage amplifier status readout. When power is unavailable, the passive audio signal path still works, unaffected. The compact yet ultra-rugged design makes the BigShot ABY ideal for pedalboards where space is always at a premium.

Product Features

• True-bypass ABY amp selector with LED indicators
• On-board transformer to eliminate hum & buzz
• 180 degree polarity reverse to phase-match amps
• 100% passive audio path, does not require power

Attributes

• Type (X): Switchers
• Color (X): Black
• Number of Inputs (X): 1
• 1/4" Input (X): Yes
• XLR Outputs (X): No
• 1/4" Output (X): Yes
• 1/8" Input (X): No
• XLR Input (X): No

Included Items

The BigShot ABY makes it easy to run two amps on stage, without introducing noise or altering your tone. The pedal has two latching footswitches that allow you to choose which amp is active, or run through both simultaneously. The second amp output features a ground lift and an isolation transformer that can be engaged to eliminate buzz and hum from ground loops, while a 180° polarity reverse switch ensures both amps play back in phase to avoid frequency cancellation. When powered by an external 9V supply or pedalboard power brick, LEDs provide instant on-stage visual feedback - when power is unavailable, the passive audio circuit still works unaffected. Best of all, the BigShot ABY is true-bypass device, without any tone-altering buffers between the guitar and the amplifier to ensure you retain the pure tone of your instrument.

Attributes

• Color: Black

Technical Specifications

• Controls: Passive
• Dimensions: 2" H x 3.6" W x 3.9" D
• Weight: 1.25 lbs
• Inputs: 1 x 1/4" (Input)
• Outputs: 2 x 1/4" (Outputs A & B), 1 x 1/4" (Tuner Out)
• Power Source: 9V DC power supply (not included)
• Effects: Utility & Signal Router
• Processing Type: Analog

Strukture selected the top-selling cables in the industry and eliminated as much packaging cost as possible without sacrificing quality. The PVC outer covering is reinforced by a state-of-the-art shrink-wrap sleeve to resist separation at the termination points. Finally, they use the highest quality solder connections, which are protected by a thick ABS inner sleeve, to create a cable you can count on.

Attributes

• Color: Black

Technical Specifications

• Type: Instrument
• Unit Count: Single
• From Connector: 1/4"
• To Connector: 1/4"
• Connector Angle: Straight to Straight
• Balanced: No
• Cable Length: 18.6'
