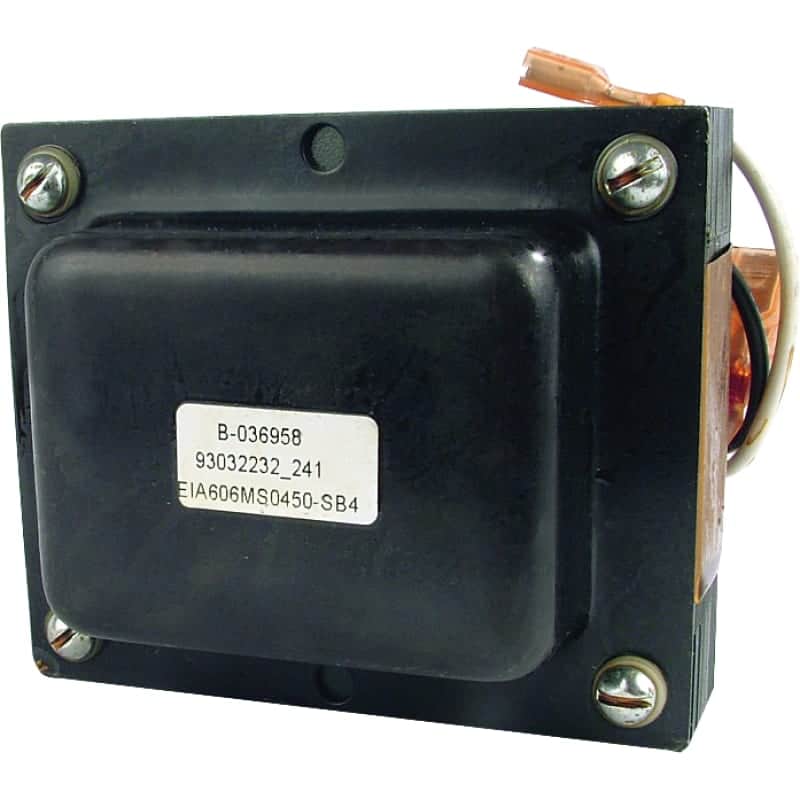

Transformer - Fender, Power, Hot Rod Deluxe

Fender Original Hot Rod Deluxe Power Transformer. Equivalent to #036958.

Specifications Primary 120 VAC @ 60 Hz (Black - White) Secondary 1 (Red - Red) 495 VDC unloaded, 440 VDC @ 65.7 mA DC, 388 VDC @ 200 mA DC Secondary 2 (Brown - Brown) 53.6 VAC @ 1.58 A AC Secondary 3 (Green - Green) 6.6 VAC @ 3.75 A AC

Warning: Not all amplifier models of the same name use the same transformer model. Please make sure the amplifier transformer which you are replacing has a Fender number matching the equivalent Fender transformer number listed here.

Fender part number: 003-6958-000

Product Measurements

Item Length: 3.134 in.
Item Width: 3.271 in.
Item Height: 3.804 in.
Mounting Hole Center to Center A: 3.14 in.
Mounting Hole Center to Center B: 2.52 in.
Primary: 120 VAC @ 60 Hz (Black - White)
Secondary 1, red-red: 495 VDC unloaded, 440 VDC @ 65.7 mA DC, 388 VDC @ 200 mA DC
Secondary 2, brown-brown: 53.6 VAC @ 1.58 A AC
Secondary 3, green-green: 6.6 VAC @ 3.75 A AC
