Takamine G Series CP-100 Pickup Assembly with SHIM SET / TGP0897

Takamine CP100 STEEL String pickup system / OEM

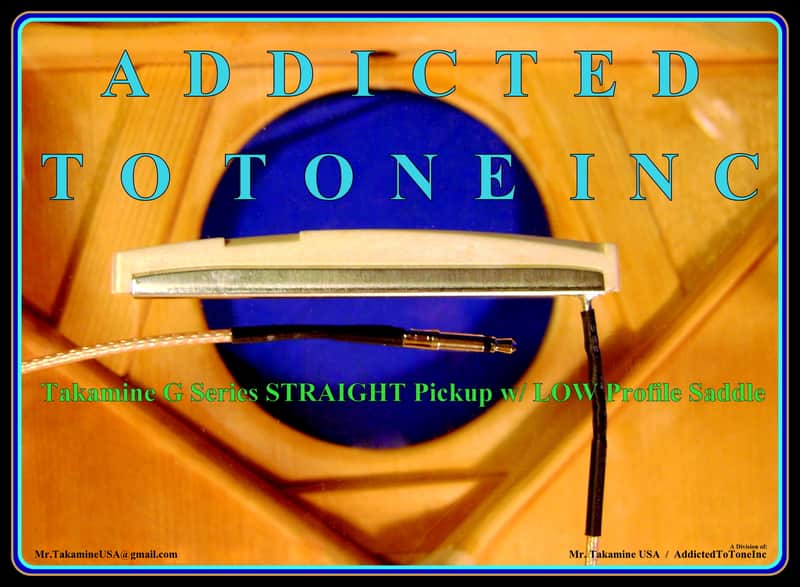

CP100 / TGP0897 Bridge Pickup with Integrated Compensated Saddle

This auction is for ONE (1) new CP100 unit

(Other items shown are for reference only and are not included in this sale.)

This OEM Integrated system is designed exclusively for Takamine G Series instruments.

Most likely if you are viewing this ad you need to replace your current pickup.

The CP-100 will work on just about any Takamine G series Guitar with a 3” straight saddle.

This pickup is NOT correct for a NYLON String or BASS guitar.

How to tell if your guitar can use this pickup:

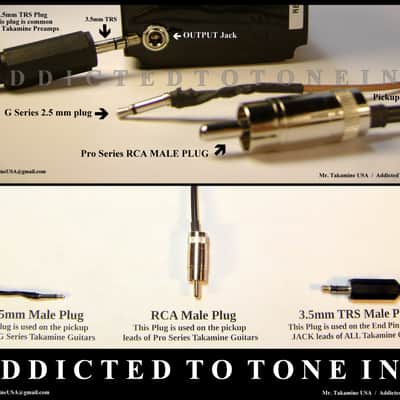

Verify that your current preamp accepts a 2.5mm male plug in the INPUT jack.

(NOTE: ALL Takamine Preamps use either the G Series 2.5mm input or the Pro Series RCA style input.)

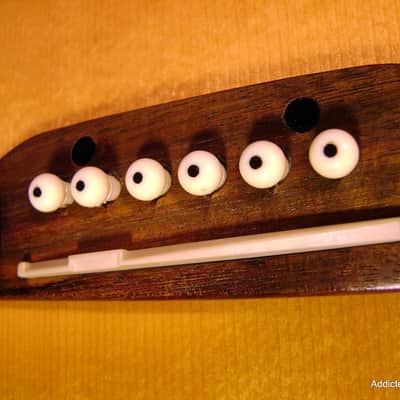

Verify the length of your guitars saddle slot.

The CP100 is 3” in length

(A folded dollar bill is about 3” in length)

Verify the width of your guitars saddle slot.

The CP100 is 3mm wide

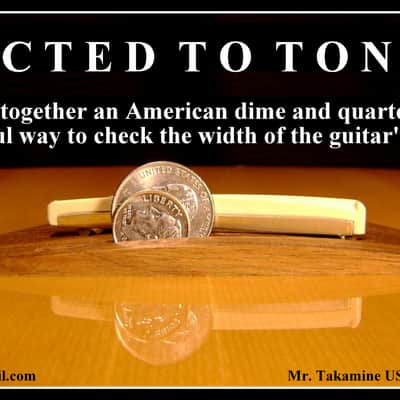

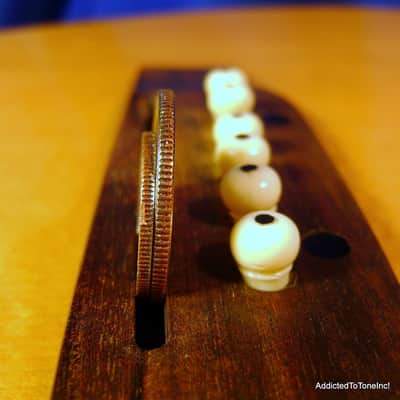

(a new American Quarter and Dime coin measure about 3mm when stacked

one on top of the other – Could these two stacked coins slide into and fit snugly inside the saddle slot? DO NOT Force.)

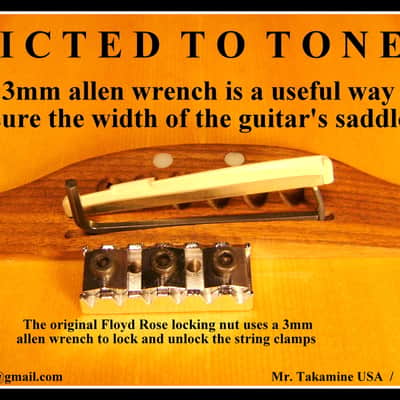

SIDE NOTE: If you have a guitar with an Original Floyd Rose Locking Vibrato system you can use the 3mm Allen Wrench you use to tighten the locking nut with to check the saddle slot width...

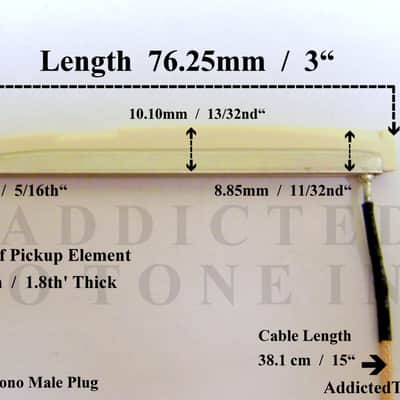

Specifications:

Saddle / Pickup element 3mm (3/32nd)wide

75.94mm length (3”)

10mm (13/32nds) tall at highest point between D & G string

15" cable lead

2.5mm male connector

Right handed guitars

6 or 12 String guitars

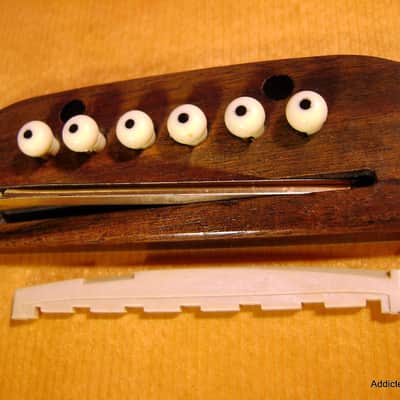

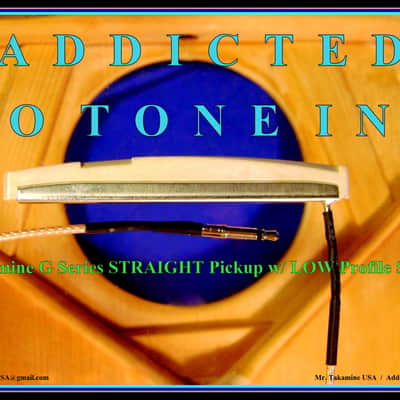

The innovative Takamine CP-100 pickup arrangement utilizes a U-shaped aluminum rail securing the pickup and saddle securely together for a snug fit inside the instruments saddle slot.

This configuration produces an articulate, well balanced string response when using a plectrum or playing finger style.

The pickup arrangement captures vibration not only from the string pressure but the energy produced from the soundboard resonance as well!

The CP-100 pickup is NOT a conventional under the saddle piezo pickup!

The CP100 will work with Nylon, Bronze and Nickel strings.

The CP100 was designed exclusively for Takamine “G” Series Instruments.

The integrated saddle is compensated so intonation is maintained up and down the fretboard.

IMPORTANT:

If you desire to lower your string action by adjusting the height of the saddle remove material from the TOP of the saddle not the BOTTOM.

If you modify the BOTTOM as you would a conventional saddle it will destroy the seating integration of the saddle and its interaction with the pickup element rendering it useless electronically.
