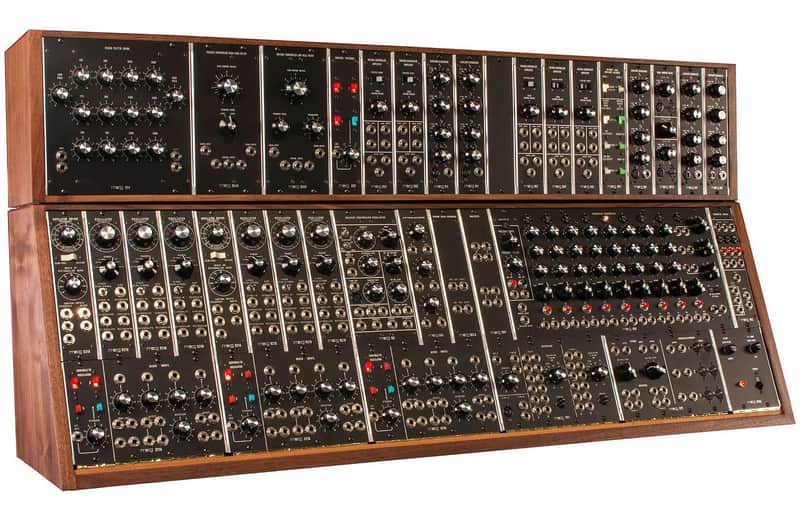

Moog Modular System 55 Synthesizer

SOLD

The Moog Modular System 55

Please Note: Payment for the Moog System 55 can only be accepted via Cashiers Check, Money Order, or Bank Wire Transfer.  No credit cards, please.

As you know, the Moog System 55 is a highly sophisticated and dynamic analog instrument comprised of 36 handcrafted modules and housed in 2 hand-finished solid walnut cabinets. This magnificent creation provides limitless sonic potential and inspiration, while delivering the depth and dimension of sound found only in a vintage Moog modular synthesizer. The System 55 comes equipped with the coveted 960 Sequential Controller for incorporating extensive rhythmic complexity and expanse into the creative process.

Faithfully Recreating the System 55

Over the course of 3 years, Moog Music set out to research and build a faithful recreation of the classic Moog modular System 55. Using all original documentation as well as circuit board and art files for every module, Moog Engineers have painstakingly recreated this incredible analog instrument.

Each System 55 is hand-built to its original 1974 Moog factory specifications and is a true recreation of the original. Individual modules are brought to life just as the originals were, by hand-stuffing and hand-soldering components to circuit boards, and using traditional wiring methods. Each module is then finished with a photo-etched aluminum panel, and placed in its new modular instrument.

This limited reissue of the Moog modular System 55 is built to order, and is available in highly limited quantities. Only 55 units will be made.

System 55 Modules

5x 902 Voltage Controlled Amplifiers
1x 903A Random Signal Generator
1x 904A Voltage Controlled Low Pass Filter
1x 904B Voltage Controlled High Pass Filter
5x 911 Envelope Generators
1x 911A Dual Trigger Delay
1x 914 Fixed Filter Bank
1x 921 Voltage Controlled Oscillator
2x 921A Oscillator Drivers
6x 921B Oscillators
1x 960 Sequential Controller
1x 961 Interface
1x 962 Sequential Switch
1x 992 Control Voltage Panel
1x 993 Trigger and Envelope Voltages Panel
1x 994 Dual Multiples Panel
1x 995 Attenuator
1x CP2 Console Panel
3x CP3A Console Panels
1x CP8 Console Panel
1x 350 Watt 120 VAC or 230 VAC Switch Selectable Power Supply

Included Patch Cabling

14x - 1' 1/4" TS cables
12x - 2' 1/4" TS cables
12x - 3' 1/4" TS cables
6x   - 4' 1/4" TS cables
4x   - 5' 1/4" TS cables
2x   - 1' S-Trigger cables
3x   - 3' S-Trigger cable
1x   - Y-cable S-Trigger

Weights and Dimensions (approximate)

Main Cabinet: Weight: 100 lbs., Dimension: 48 1⁄2" wide x 15 1⁄2" high x 14" deep
Upper Cabinet: Weight: 60 lbs., Dimension: 48 1⁄2" wide x 10" high x 8 1⁄2" deep

Shipping Weights and Dimensions:  2 Crates total:

Main Console: 140 lbs, 59.8" L x 18.8" W x 28.8" H
Expansion Cabinet: 100 lbs, 53.3" L x 13.3" W x 17.3" H
