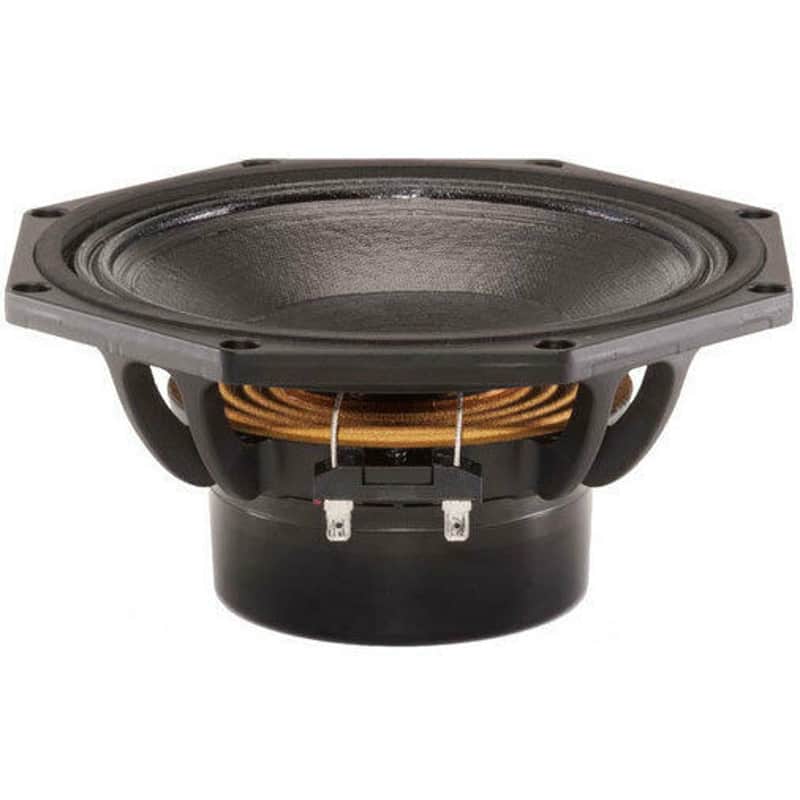

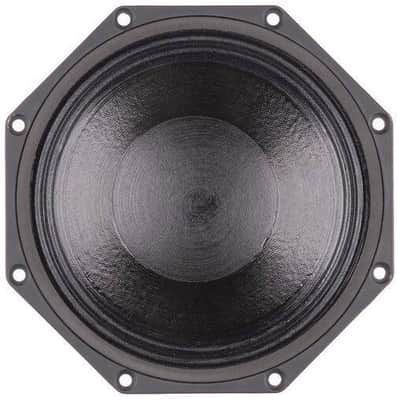

B&C 8NDL64 8" Neodymium Woofer 700 Watts Pro Mid-Bass Speaker 8-Ohm
This seller has not set a shipping cost for Estonia. Please contact them to ask about shipping.
Price€187.24
+ Shipping
Listed:over a month ago
Views:335
Saves:4
Offers:0
Brooklyn, NY, United States
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
B&C 8NDL64 8" Neodymium Woofer
- 700 W Continuous Power Handling
- 2.5 in (64 mm) Voice Coil Diameter
- Neodymium Inside Slug Magnet Material
Key Features
- 700 W continuous program power capacity
- 64 mm (2.5 in) copper voice coil
- 80 - 4000 Hz response
- 97 dB sensitivity
- Neodymium inside slug magnet assembly
- Shorting copper cap for extended HF response
- Ventilated voice coil gap for reduced power compression
- Nominal Diameter200 mm (8.0 in)
- Nominal Impedance8 Ohm
- Minimum Impedance7.2 Ohm
- Nominal Power Handling1350 W
- Continuous Power Handling2700 W
- Sensitivity397.0 dB
- Frequency Range80 - 4000 Hz
- Voice Coil Diameter64 mm (2.5 in)
- Winding MaterialCopper
- Former MaterialGlass Fibre
- Winding Depth14.0 mm (0.55 in)
- Magnetic Gap Depth8.0 mm (0.31 in)
- Flux Density1.25 T Parameters
- Resonance Frequency80 Hz
- Re5.4
- Qes0.25
- Qms10.91
- Qts0.25
- Vas9.6 dm3 (0.34 ft3)
- Sd220.0 cm2 (34.1 in2)
- ??1.88 %
- Xmax4.5 mm
- Xvar5.0 mm
- Mms28.0 g
- Bl17.5 Txm
- Le0.62 mH
- EBP320 Hz
- Overall Diameter225 mm (8.8 in)
- Bolt Circle Diameter210 mm (8.3 in)
- Baffle Cutout Diameter187.0 mm (7.4 in)
- Depth95 mm (3.74 in)
- Flange and Gasket Thickness10 mm (0.39 in)
- Air Volume Occupied by Driver1.5 dm3 (0.05 ft3)
- Net Weight2.8 kg (6.17 lb)
- Shipping Units1
- Shipping Weight3.25 kg (7.17 lb)
- Shipping Box255x255x150 mm (10.04x10.04x5.91 in)
- RCK008NDL648
