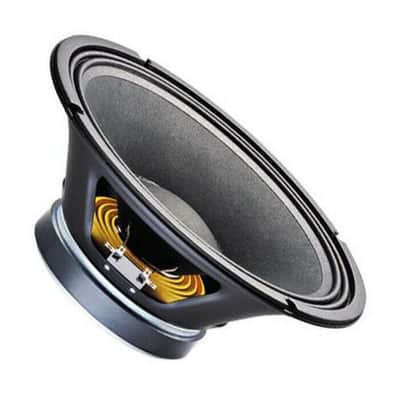

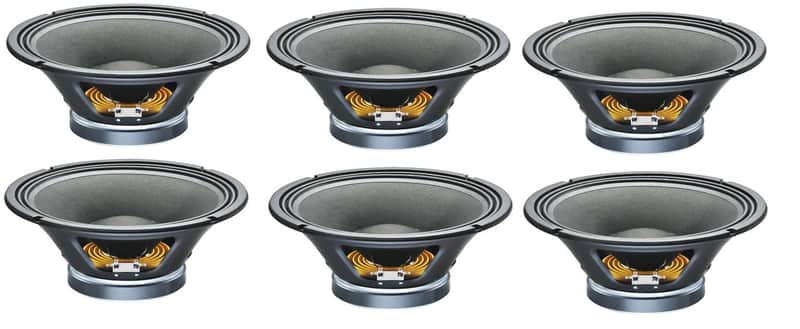

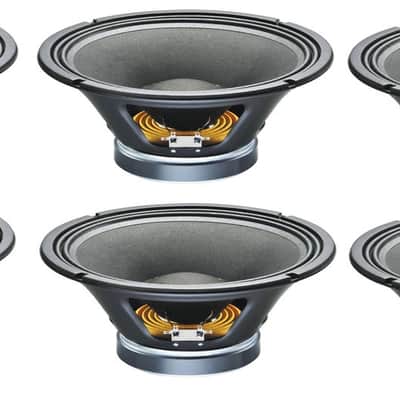

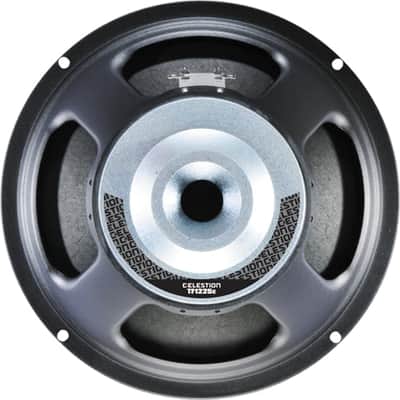

6x Celestion TF1225e 12" pressed steel chassis, ferrite magnet bass/mid driver 8 Ohm

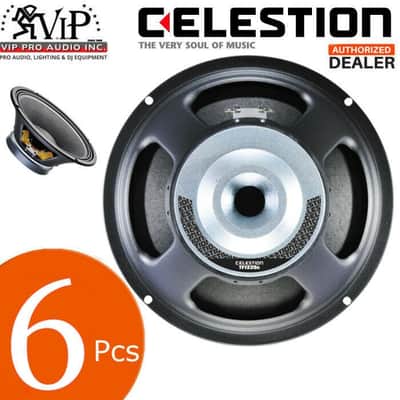

6pcs Celestion TF1225e 12" Professional Speaker 600W LF Pressed Chassis / Ferrite

Contact Us For Information,  215 Conklin Ave. Brooklyn NY 11236 Tel: 718 272-7228 / Se Habla Espanol
Authorized Dealer/ Brand New Item / In Stock!

Celestion TF1225e 12" Professional Speaker 300W

The Celestion TF1225e's flatwound voice coil improves its critical power handling and efficiency specifications. Copper ribbon wire is wound on a polyimide former, and the resulting improvement in electromagnetic qualities guarantees higher output, better thermal transfer, and extended high frequency response. The TF1225e will produce extended, high impact bass and superb midrange definition when used in professional sound reinforcement and stage monitor loudspeaker systems.

Product Specifications

• Nominal Diameter12"
• Power Handling (RMS)300 Watts
• Power Handling (max)600 Watts
• Impedance8 ohms

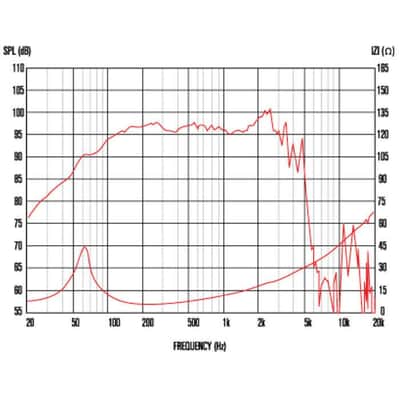

• Frequency Response50 to 3,000 Hz
• Sensitivity96 dB 2.83V/1m
• Voice Coil Diameter2.5"
• Magnet Weight50 oz.
•


Thiele-Small Parameters

• Resonant Frequency (Fs)61.2 Hz
• DC Resistance (Re)5.07 ohms
• Voice Coil Inductance (Le)1.1 mH
• Mechanical Q (Qms)4.8
• Electromagnetic Q (Qes)0.44
• Total Q (Qts)0.4
• Compliance Equivalent Volume (Vas)1.79 ft.³
• Mechanical Compliance of Suspension (Cms)0.13 mm/N
• BL Product (BL)15.41 Tm
• Diaphragm Mass Inc. Airload (Mms)53.24g
• Moving Mass Of Diaphragm (Mmd)46.31
• Maximum Linear Excursion (Xmax)3.5 mm

Materials of Construction

• Cone MaterialPaper / Kevlar
• Surround MaterialCloth
• Voice Coil Wire MaterialCopper
• Voice Coil FormerKapton® / Polyimide
• Basket / Frame MaterialSteel
• Magnet MaterialFerrite

Mounting Information

• Overall Outside Diameter12.17"
• Baffle Cutout Diameter11.14"
• Depth5.47"
• # Mounting Holes4

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

• Sealed Volume0.59 ft.³
• Sealed F3121 Hz
• Vented Volume1.45 ft.³
• Vented F365 Hz

Celestion TF1225e 12" Professional Speaker 300W

• BrandCelestion
• ModelTF1225e
• Part Number294-2080
• UPC739894532358
• Product Category
• Unit of MeasureEA
• Pro Woofers, Subwoofers & Midrange Speakers

• Weight10.95 lbs.
