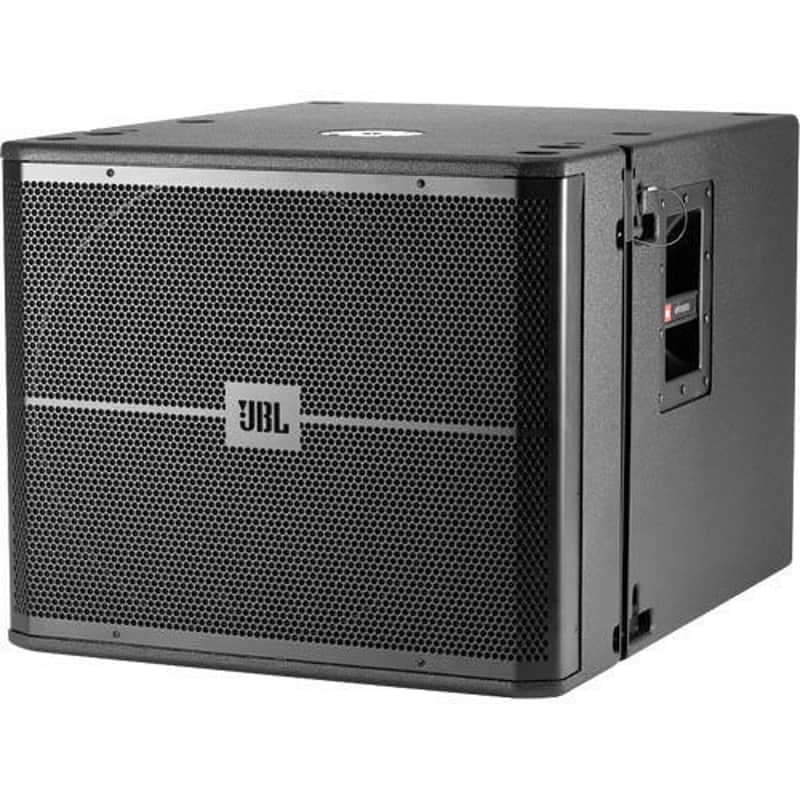

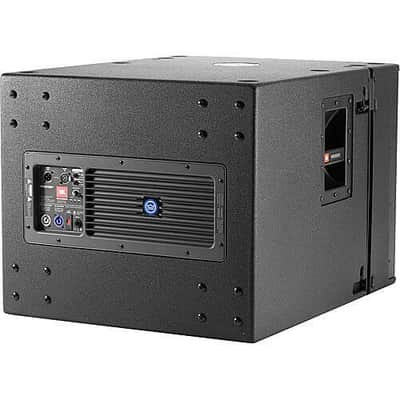

JBL VRX918SP 18 in. High Power Powered Flying Subwoofer

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

Features

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
• 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and
  light weight.
• Integral rigging hardware for simple connection of enclosures and optional array frame.
• 20 mm threaded pole socket for solid, secure satellite speaker mounting.
• Large port area for reduced distortion.

Specifications Power Rating

• 1500 Watts PeakLF: Dual-Bridged Technology™, Class D

Frequency Range

• 31 Hz – 220 Hz

Dimensions(H x W x D)

• 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)

Frequency Response

• 34 Hz – 220 Hz

Maximum Peak Output

• 126 dB SPL at 1m

Bandpass Nominal Impedance

• LF: 2 x 2 ohms

LF Driver

• 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet

Audio Input Connector

• XLR with loop through

User Controls

• Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.

Signal Processing

• DSP based, resident in Input Module

System Management

• DSP based limiters for mechanical and thermal protection

AC Power Operating Range

• 90-132 VAC or 216-264 VAC, 50/60Hz

AC Line Voltage

• User selectable: 120V/240V (-15%, +10%)

AC Input Connector

• Neutrik PowerCon (NAC 3MPA)

AC Loop Through Connector

• Neutrik PowerCon (NAC 3MPB)

AC Current Requirements

• 6A per system at 120V, 3A per system at 240V

Enclosure

• 18 mm birch plywood.

Suspension / Mounting

• Optional VRX-AF line-array frame kit or 10 mm forged eyebolts

Finish

• Black DuraFlex™ finish

Grille

• Powder coated, black, 16-gauge perforated steel with acoustically transparent foam

Net Weight

• 38.5 kg (85 lb)

Optional Accessories

• VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
