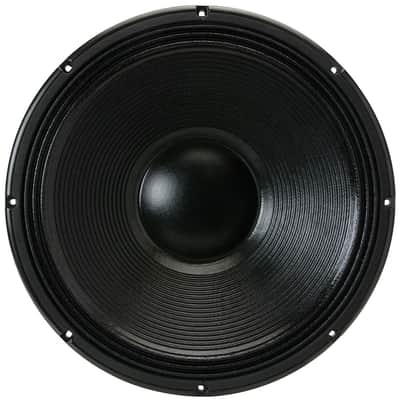

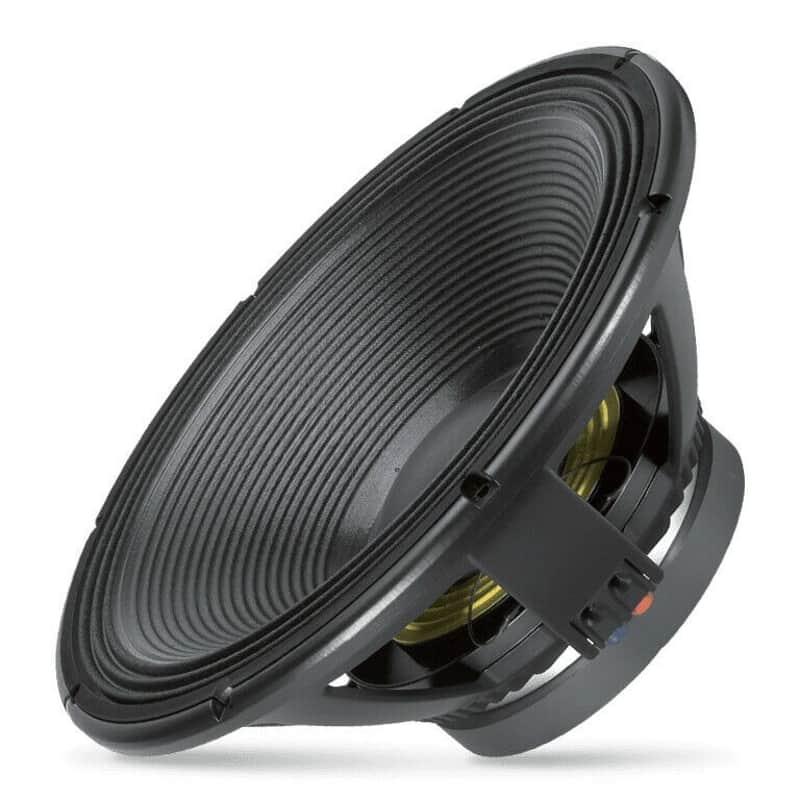

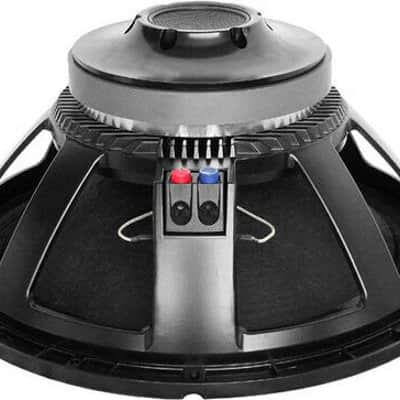

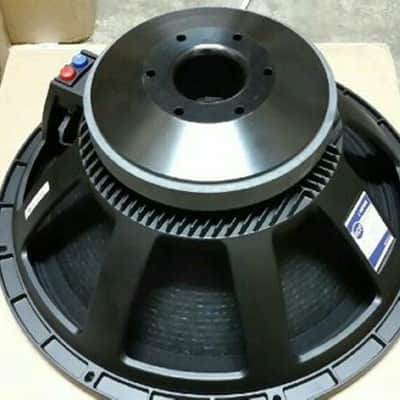

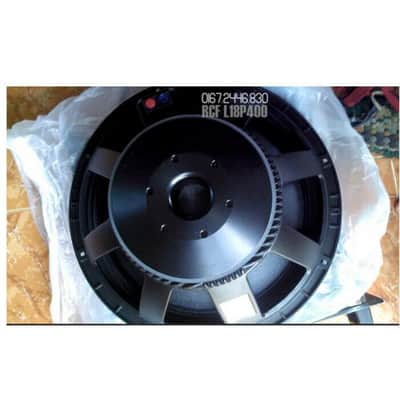

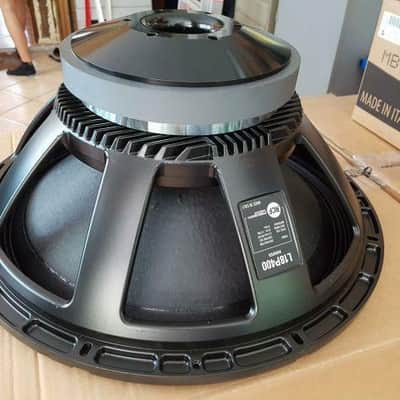

RCF L18P400 18" 2000W Sub-Woofer Professional DJ / Club Speaker
This seller has not set a shipping cost for Hungary. Please contact them to ask about shipping.
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
RCF L18P400 Professional DJ/Club 18" 2000W Sub-Woofer Speaker !
Successor to the legendary RCF L18P300, L18P400 subwoofer speaker features incredibly linear frequency response characteristics and extreme high power handling while generating the lowest harmonic distortion of any comparable 18" transducer within its application range.
The L18P400 uses a fiber-loaded cone assembly along with a high excursion triple roll, constant geometry surround.
A fully optimized T-pole design generates the minimum amount of flux modulation. The T-pole also features RCF Precision's spaced gap demodulation technology, which progressively brakes the voice coil, thereby providing a much smoother transition for the moving mass as it reaches its maximum excursion limits.
Also included is a forced air venting system for reduced power compression. Ideal for high quality professional bass reflex and bass-horn systems, the L18P400 is a popular replacement driver for EAW, Yorkville, Sonic, Martin Audio, and other subwoofer speaker systems.
PRODUCT SPECIFICATIONS
- Power Handling (RMS) 1000 Watts
- Power Handling (max) 2,000 Watts
- Impedance 8 ohms
- Frequency Response 25 to 1,000 Hz
- Sensitivity 97.5 dB 2.83V/1m
- Voice Coil Diameter 4"
THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs) 29 Hz
- DC Resistance (Re) 5.1 ohms
- Voice Coil Inductance (Le) 2.5 mH
- Mechanical Q (Qms) 7.60
- Electromagnetic Q (Qes) 0.29
- Total Q (Qts) 0.28
- Compliance Equivalent Volume (Vas) 12.01 ft.³
- BL Product (BL) 24.6 Tm
- Diaphragm Mass Inc. Airload (Mms) 200g
- Maximum Linear Excursion (Xmax) 8.8 mm
- Surface Area of Cone (Sd) 1220 cm²
MATERIALS OF CONSTRUCTION
- Cone Material Paper / Carbon Fiber
- Surround Material Cloth
- Voice Coil Wire Material Copper
- Voice Coil Former Fiberglass
- Magnet Material Ferrite
MOUNTING INFORMATION
- Overall Outside Diameter 18.30"
- Baffle Cutout Diameter 16.70"
- Depth 8.10"
- # Mounting Holes 8
OPTIMUM CABINET SIZE *
- Sealed Volume 2.93 ft.³
- Sealed F3 53 Hz
- Vented Volume 3.19 ft.³
- Vented F3 52 Hz
* Enclosure volume/F3s based on BassBox "optimum" calculations
