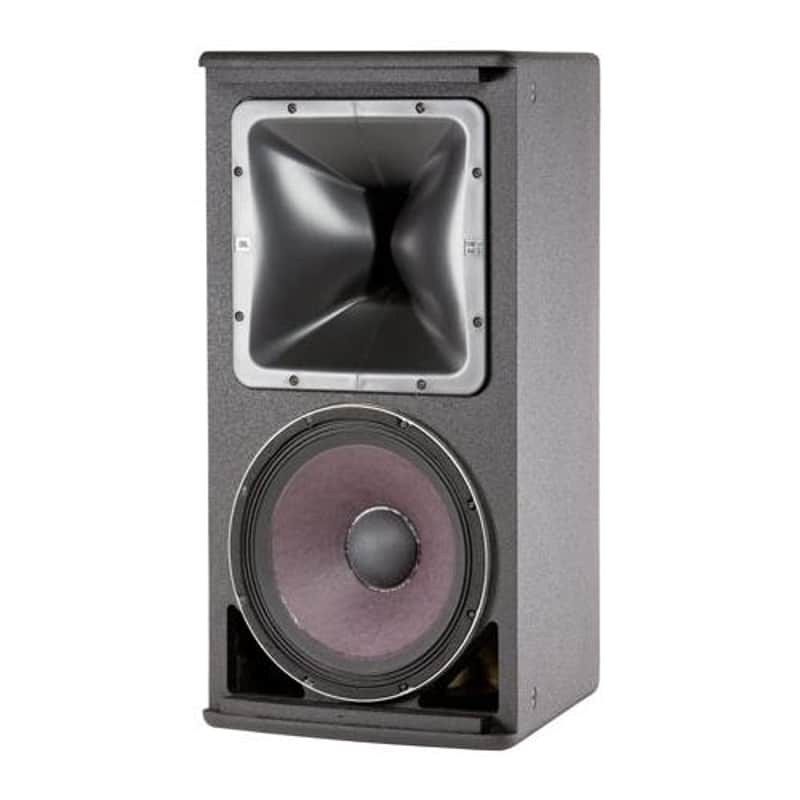

The AM5212/26 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300mm (12 ) low frequency driver and 2408H-1 high frequency 38mm (1.5 ) exit, 38mm (1.5 ) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 120deg. X 60deg. coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances array ability. The enclosure is constructed of multiply birch coated in JBL's rugged DuraFlex finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance. The AM5212/26 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications. Includes: JBL AM5212/26 2-Way Full Range Loudspeaker System with 12 Low-Frequency Driver - JBL 5 Year Limited Warranty Features: 120deg. x 60deg. Coverage 262H-1 Differential Drive Low-Frequency Driver 2408H-1 High-Frequency Compression Driver Large PT Progressive Transition waveguide for excellent pattern control and low distortion Rotatable waveguide for vertical or horizontal orientation Bi-Amp/Passive Switchable Specifications: Frequency Range: 37Hz to 20kHz (-10dB) Frequency Response: 43Hz to 18kHz (+/-3dB) Coverage Pattern: 120 x 60 deg. Directivity Factor (Q): 8.2 Directivity Index (DI): 9.1dB Crossover Modes: Bi-amp/Passive switchable Passive Crossover Frequency: 1.5kHz Transducer Power Rating (AES): LF: 400W (1600W peak), 2 hrs and 300W (1200W peak), 100 hrs HF: 40W (160W peak), 2 hrs Long-Term System Power Rating (IEC): Passive mode: 300W (1200W peak), 100 hrs Maximum SPL: Bi-amp mode: LF: 122dB-SPL cont avg (128dB peak) HF: 129dB-SPL cont avg (135dB peak) Passive mode: 121dB-SPL cont avg (127dB peak) System Sensitivity: Passive mode: 96dB SPL (1W at 1m) Low Frequency Driver: 1x JBL 262H-1 300mm (12 ) driver with 50.8mm (2 ) dual voice coil LF: Nominal Impedance: 8Ohms LF: Sensitivity: 97dB SPL High Frequency Driver: JBL 2408H-1, 38mm (1.5 ) exit compression driver, 38mm (1.5 ) voice coil HF: Nominal Impedance: 8Ohms HF: Sensitivity: 113dB SPL Waveguide: PT-H126HF-1 Enclosure: Trapezoidal with 15 degree side angles, 16mm (5/8 ) exterior grade 11-ply birch plywood Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware Finish: DuraFlex Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing Input Connector: NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (.375 ) spade lugs. Speakon in parallel with barrier strip for loop-through Environmental Specifications: Mil-Std 810; IP-x3 per IEC529 Applications: Performing Arts Facilities Theatrical Sound Design Auditoriums Worship Facilities Live Clubs Dance Clubs Sports Facilities Themed Entertainment Venues Dimensions (H x W x D): 711 x 369 x 458mm / 27.99 x 14.53 x 18.03 (Vertical Cabinet Orientation) Weight: 20.2kg / 44.53lbs
