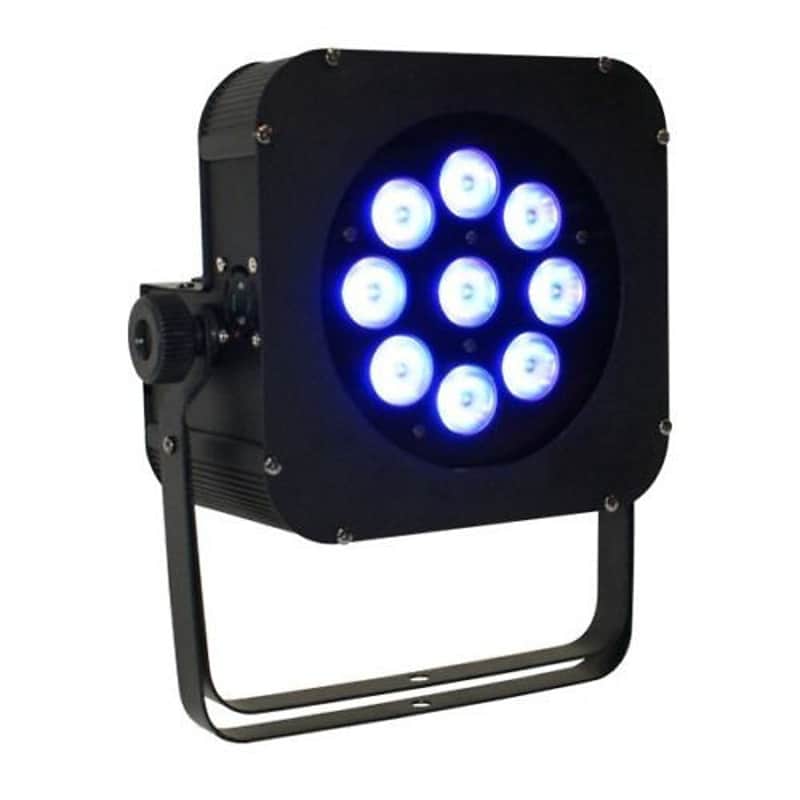

The Puck 3 Unplugged features all of the same great features as the the Puck 3NX with the addition of an internal rechargable, Field-replacable Lithium-Ion Battery System.
Redesigned from the ground up to be brighter, lighter, stronger and smarter than the original Puck3, the Puck 3 Unplugged builds on the original's runaway success and adds more of everything that made The Puck3 so popular! With about 10% more output thanks to optimized electronics and optics, quieter fans, and extra protection for the fixture's 9x 3-watt Edison Edixeon Tri-Color LEDs, the Puck 3 Unplugged offers a ton of features! Plus, it retains the DMX layout of the original Puck3 as well as its input/output setup for easy interoperability!
And, take full advantage of Blizzard's wiCICLE wireless DMX system without the need for external power thanks to the wiCICLE enabled DMX jacks! An innovative design provides power to the system directly from the fixture's DMX jack, meaning even fewer cords and less setup time.
An LED control panel and power daisy chain connectors make it flexible and perfect for uplighting, concerts, truss warming and virtually anywhere you need lots of color for notalotta green!
The Puck 3 Unplugged features 3 and 6-channel control modes which means it works great with any type of controller, including popular 3-channel easy controllers. Plus, the built-in 4 character/4 button LED control panel allows total control over the fixture, including sound active and standalone modes, display invert and service hour readout.
Once you compare it to other fixtures on the market, you'll realize that now more than ever... there is no comparison!
Features:
Superior color mixing via 9x 3-watt TRI-Color LEDs
Variable electronic strobe
Variable electronic dimmer
Built-in automated programs via DMX and master/slave
Built-in sound active programs
Full color mixing in standalone and master/slave
RGB Dimming (3-Channel) and extended (6-Channel) DMXmodes
Ultra Long-life intelion Lithium-Ion Battery System
Durable acrylic lens protector for added LEDprotection
4-Button LED control panel for easy programming
Light source: 9x 3-watt TRI-Color Edison Edixeon LEDs
Dual bracket for flexibility in mounting
Power outlet for fixture linking (MAX 3A @ 120VAC)
Ultra-quiet fan for cool operation all night long
wiCICLE Enabled functionality allows plug-and-play operationwith Blizzard's wiCICLE Brand Wireless DMX system
Specifications:
Length: 8.50 inches (215 mm)
Width: 5 inches (126.5 mm)
Height: 8.25 inches (210 mm)
Weight: 6.9 lbs (1.9 kg)
Operating Voltage: 90-230VAC, 50-60 Hertz
Fuse: 2A 250V
Power Consumption: 35W
LED: 9x 3-watt TRI-Color LED's 60K hrs.
Beam Angle: 25 degrees, 29 degree field
Luminous Intensity - 7,160 Lux @ 1m (Full White) - Red: 1,550 Lux @ 1m - Green: 2,250 Lux @ 1m - Blue: 2,930 Lux @ 1m
Max. Operating Temp.: 104 degrees F (40 degrees C)ambient
Protocol USITT DMX-512
DMX Channels: 3 or 6 (User Selectable)
Input: 3-pin XLR Male
Output: 3-pin XLR Female
Operation Modes: Standalone, Master/Slave, SoundActive, Color Preset, Standalone color mixing
Type/Rating: Intelion Field-replacable Lithium-Ion,24-Volt, 6 Ah.
Fixture: 2-year limited warranty.
Battery: 1-year limited warranty covering failure only.
