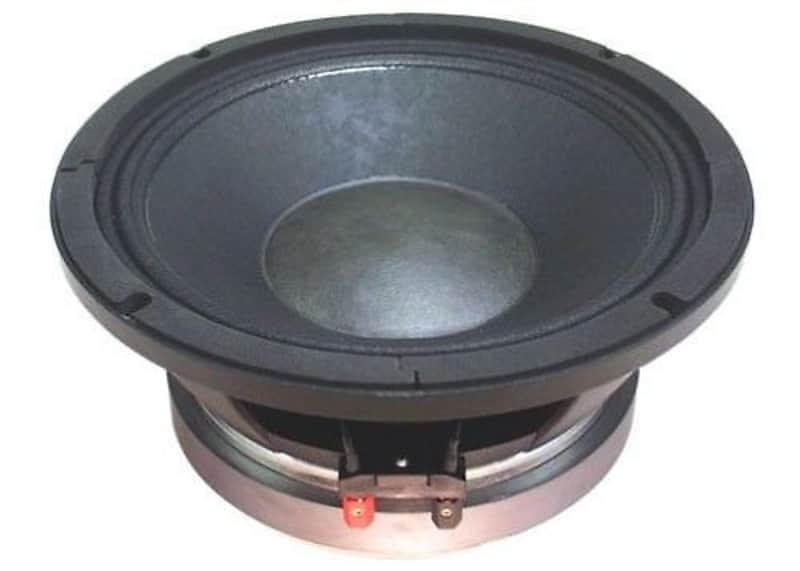

B&C 10MD26 B & C 10" Midbass Woofer Speaker
This gear has sold
See similar gear from other Reverb sellers
Our users rate Reverb
A very high efficiency 10" cone midrange, the B&C 10MD26 is an excellent choice for front horn loading up to 2.5 kHz as well as direct radiator applications. The 10MD26's 3" lightweight aluminum voice coil can withstand up to 350 watts RMS with little power compression.
Product Specifications
Nominal Diameter10"
Power Handling (RMS):350 Watts
Power Handling (max):700 Watts
Impedance:8 ohms
Frequency Response:80 to 4,000 Hz
Sensitivity:100 dB 1W/1m
Voice Coil Diameter3"
Thiele-Small Parameters
Resonant Frequency (Fs):76 Hz
DC Resistance (Re):5.8 ohms
Voice Coil Inductance (Le):1.2 mH
Mechanical Q (Qms):4.8
Electromagnetic Q (Qes):0.22
Total Q (Qts):0.21
Compliance Equivalent Volume (Vas):0.71 ft.³
BL Product (BL):19.6 Tm
Diaphragm Mass Inc. Airload (Mms):31g
Maximum Linear Excursion (Xmax):1.5 mm
Surface Area of Cone (Sd):320 cm²
Materials of Construction
Cone MaterialPaper
Surround MaterialPaper
Voice Coil Wire Material:Aluminum
Voice Coil Former:Fiberglass
Magnet Material:Ferrite
Mounting Information
Overall Outside Diameter 10.3"
Baffle Cutout Diameter 8.8"
Depth 4.9"
# Mounting Holes 4
