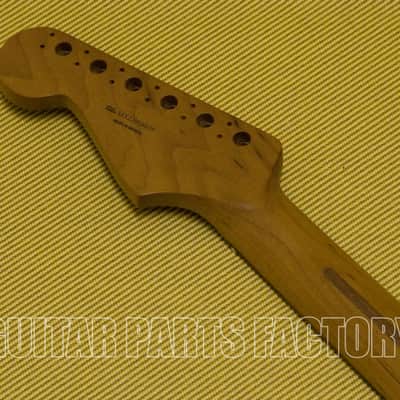

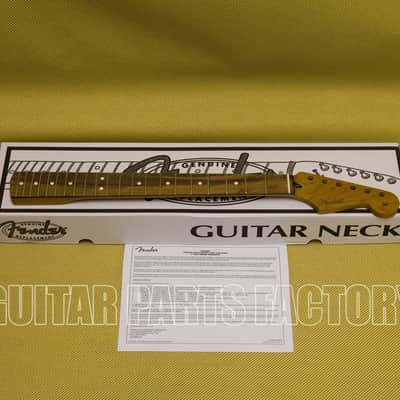

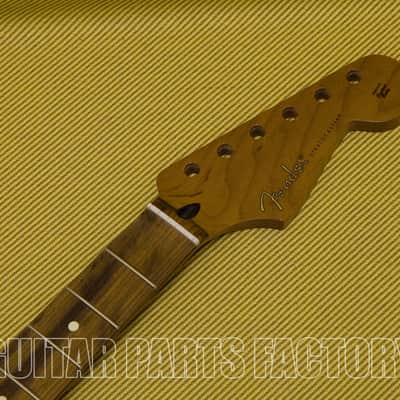

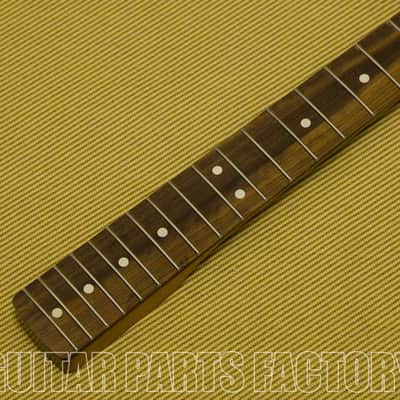

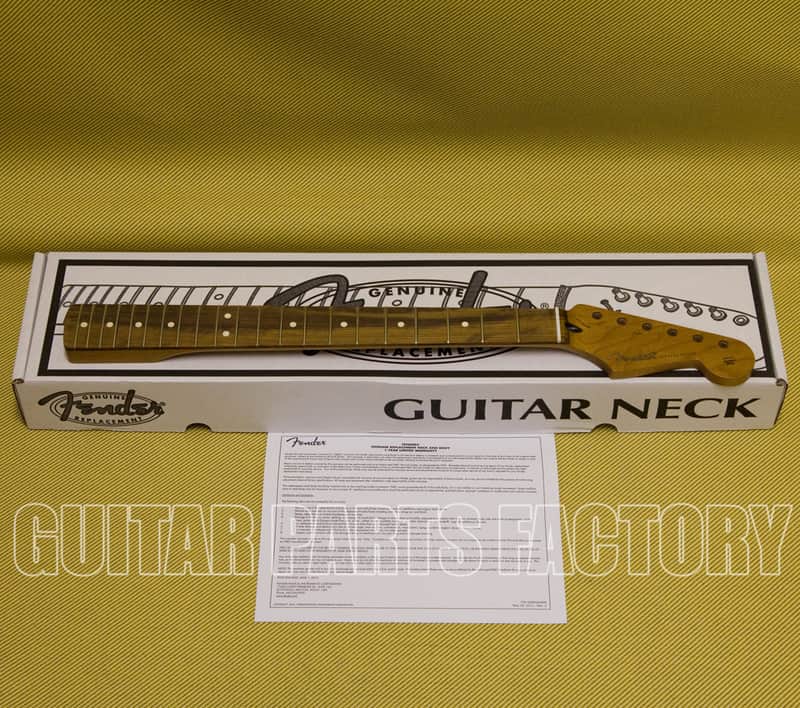

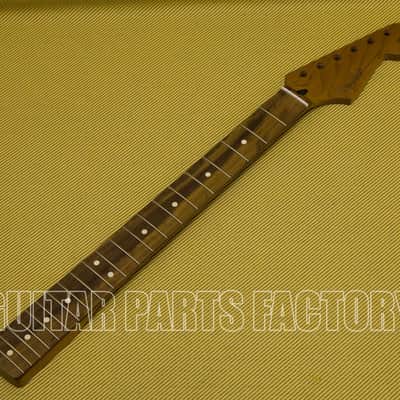

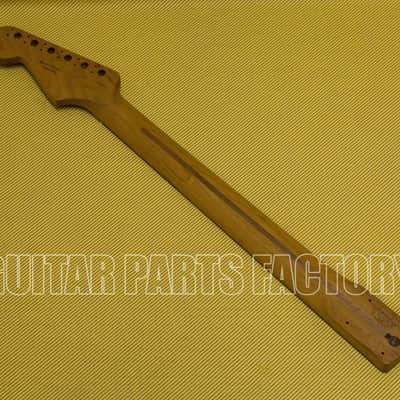

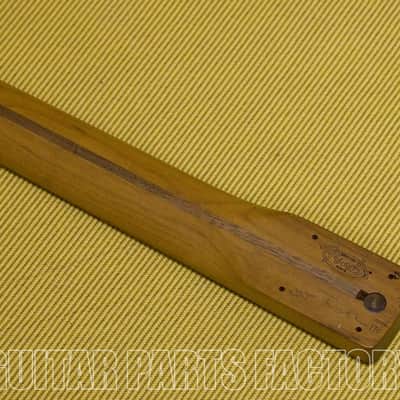

These are photos of the actual neck you will receive!

Genuine Fender Roasted Maple Stratocaster Neck, 9.5" Pau Ferro, C Shape
Part# 099-0503-920
Guitar Parts Factory is an authorized Fender/Squier dealer. There’s no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument’s voice. This genuine Fender Stratocaster neck is crafted at Fender's Ensenada, Mexico manufacturing facility. Featuring a comfortable "Modern C" shaped profile and 9.5" radius Pau Ferro fingerboard with 21 narrow-tall frets, this neck was designed for pure playability. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your Strat® authentic Fender feel, this replacement neck even sports our famous “spaghetti” logo on the headstock. FEATURES

• Roasted maple neck
• “Modern C”-shaped profile;
• 9.5” radius Pau Ferro fingerboard 21 narrow-tall frets;
• synthetic bone nut;
• Gloss urethane finish on headstock face; satin finish on back of neck;
• Modern-style truss rod adjustment

SPECS

• Style Modern
• Neck Shape Modern "C"
• Tuner Mounting Config Dual Guide Pin

MATERIALS

• Fingerboard Material Pau Ferro
• Neck Material Roasted Maple
• Nut Material Synthetic Bone
• Position Inlays White Dot
• Neck Finish Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
• Truss Rod Nut 3/16" Hex Adjustment
• Truss Rod Standard

MEASUREMENTS

• Fingerboard Radius 9.5" (241 mm)
• Scale Length 25.5" (648 mm)
• Nut Width 1.650" (42 mm)
• Number of Frets 21
• Fret Size Narrow Tall
• Neck Thickness 1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
• Peg Hole Diameter .397" (10.08 mm)
