(PAIR) Splay Array Loudspeaker Technologies SA85 Ultra-High-Performance Pro-Audio Speaker System DEMO Blowout!

New 2020 SA85 Line-Array/Point-Source Synergy Loudspeaker system!

Dirt-Cheap Blowout!

Below manufacturer cost!

We're closing our shop, everything must go!

We've tried to get things going again but due to health reasons and the growing overhead, have decided to close the doors to our physical shop location and work mobile. Our loss is your gain!

Visit our Reverb store and learn more about us!

THIS LISTING IS FOR ONE PAIR OF DEMO SA85 SPEAKER COLUMNS!

The SA85 is designed to operate as a bi-amped mid-hi frequency system from 150Hz to 28k!

Crossover point 4k 1600-watts rms mid-freq + 200-watts rms high-freq recommend.

Blowout pricing!

THESE ARE NEARLY NEW, THEY WERE USED AS DEMOS AT OUR SHOP.

7-years of extensive research and engineering comes to life in the SA85!

As with most of our product line, just let us know how many you need and we'll be glad to list a package deal for you!

Splay Array Loudspeaker Technologies SA85 Overview

The SA85 is a loudspeaker concept by Splay Array Loudspeaker Technologies that is the result of exhaustive research studying a vast combination of tried and proven acoustical technologies in order to identify the best technologies to complement each specific parameter of the overall audio spectrum. By combining these technologies in a well-engineered and efficient manner, we've created a synergy between these technologies that make the SA85 one of the most versatile, best-sounding and highest SPL systems of it’s size and weight available on the market today!

Features of the SA85

*Line Array/Point Source Combination Technology

*Very Efficient yet Very High Power Handling

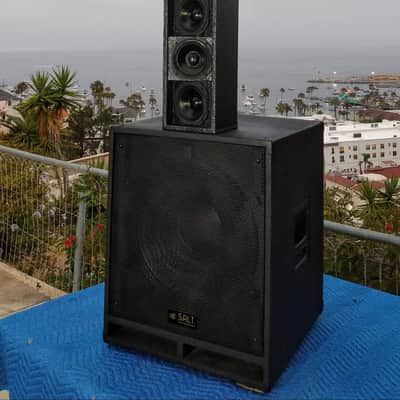

*Designed to pair with up to four SA118p subs per SA85

*Physically Time Aligned

*Proprietary “In The Round” High-Frequency Waveguide Horn Technology

*Splay Array (Speakers splayed 10-degrees off-center) to Result in 140-degrees of Horizontal Coverage With 120-degree Sweet Spot!

*Extended Bandwidth Transducers

*Very Smooth, Non-Fatiguing audio reproduction

*Very High Rejection To Feedback

*Audio Energy High-Frequency Manifold Technology

*Extreme Efficiency Requiring Less Power for More Sound Pressure Level

*Capable of Extremely High Continuous Output Levels

*Extremely Small Footprint (for improved sightlines and easy transport)

*Single Unit Mid/High Frequency Solution Eliminating the need for Inner-Fills and Delay Speakers

*Acoustically Correct Driver Configuration Resulting In Consistent Sound reproduction across a 120-degree horizontal axis (6dB down at 140-degrees) and from the near to long throw

*One SA85 can keep up with up to four SA118p super-subs or eight typical professional series 18" subs!

Splay Array Loudspeaker Technologies SA85 Column Array Specs:

1600-Watts RMS Continuous (conservatively-rated) / 4000-Watts Program (Bi-Amped Total)

134dB Continuous / 138dB Peak

140-degrees Horizontal Coverage

180Hz-30kHz Very Consistent Response across the entire 120-degree horizontal axis

4-ohm Low Freq / 16-ohm High Freq

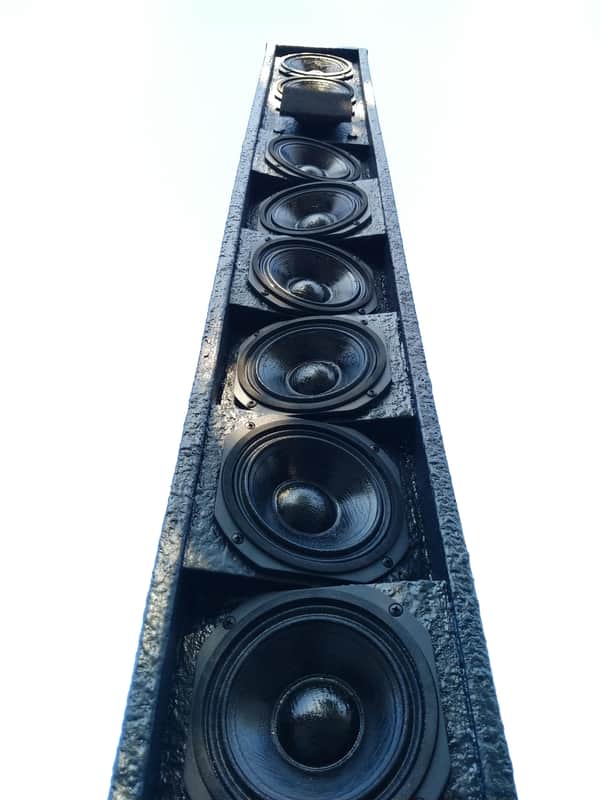

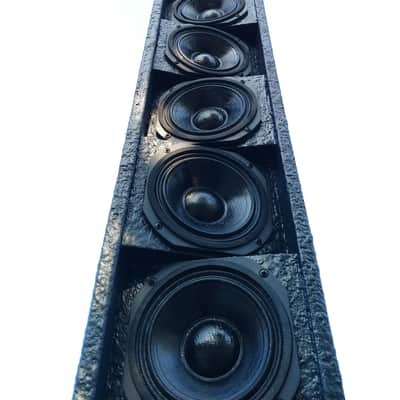

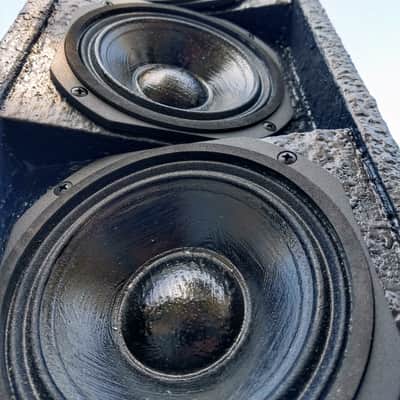

qty= (8) 5” High Efficiency 225-watt RMS Neodymium Drivers w/ 1.5" VC & Weather/UV Treated Cone

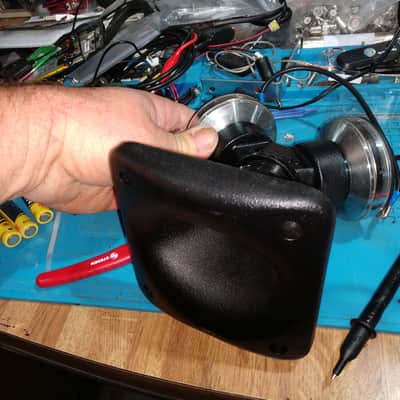

qty= (2) Neodymium Ring Radiator Compression Drivers on a 2 to 1 manifold

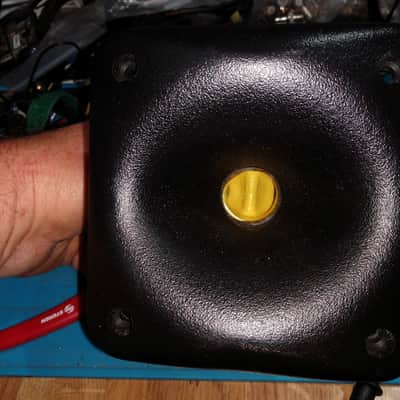

Proprietary “In The Round” High-Frequency Wave-guide

Raptor Line Covered Russian Birch with Composite Honeycomb Sandwich Construction

Acoustically Transparent Foam Backed Perforated Metal Grill

Two Strap Handles and Four Non-Marking Rubber Feet

Satellite Adapter Pole Socket Located on Bottom of Cabinet

dBL 2200-watt RMS class-D DSP amplifier module.

H=50.5” x W=7.5” x D=7” 58-LBS

Warehouse Direct: $4999.99 ea.

Need more than one?

Contact us, tell us what you need and we will list a package deal for you.

These are available for pick-up in Lake Havasu City, Arizona

Engineering Office - Lake Havasu City, Arizona

Production/Assembly/Warehouse - Pomona, CA. 91768
