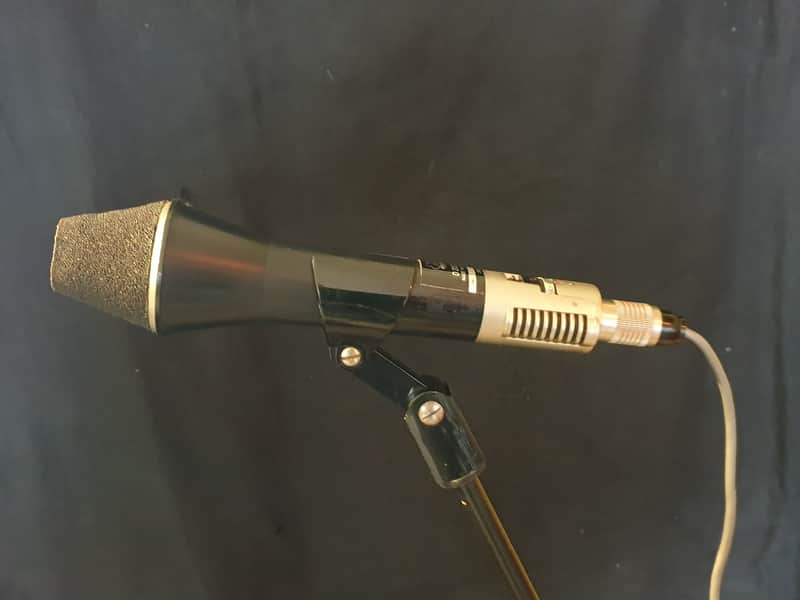

AKG D202 CS dual capsule dynamic microphone

AKG D202 CS in full functional state. Absolute killer on percussion. Comes with XLR to kleintuchel cable.

The AKG D202 was the first double system dynamic cardioid microphone produced by AKG in the 1970s used in recording and broadcast studios, film sound stages and sound-reinforcement applications throughout the world.

AKG D202 Dynamic microphone features.

• Robust sintered bronze grille causes no loss of sensitivity
• Compensating windings against stray magnetic field interference
• Rear sound entry slots with in built windshield and antiroll bar
• Available with DIN and Cannon connections

Was available in 3 different models: D202E1, D202CS & D202 ES.

AKG D202 Dynamic microphone Tech Spec.

• Type: Dynamic pressure gradient receiVer in two-way cardioid system.
  Separate high and low frequency circuits
• Frequency Response:
  D 202E1: 20 . . . 20000 Hz
  D 202CS/ES; 20. . . 18000 Hz
• Tolerance within: 202E1: max. :+/- 2 db
  D 202CS/ES: max. 2.5 db. at 1 kHz max. +/- 1 db
• Microphone Rating at 1000 Hz (sensitivity): 0.16 mV/u bar (-76 db)
• Impedance: at 125 Hz: 200 ohms +/- 20%
  at 1000 Hz: 300 ohms +/- 20%
  at 10000 Hz: 210 ohms +/- 20%
• Min Actual Load impedance >500 ohms
• Directional Characteristic: Cardioid (independent of frequency response)
• Weighted Noise Level: 0.2u veff (Filter CCITT-C/DIN 45 405)
• unweighted Noise Level: 0.2u veff
• Max.Sound Pressure Level at a distortion of 0,5% at 1000 Hz: 500u bar (128 SPL)
• Highpass switch at 50Hz (-7dB and -20dB)
