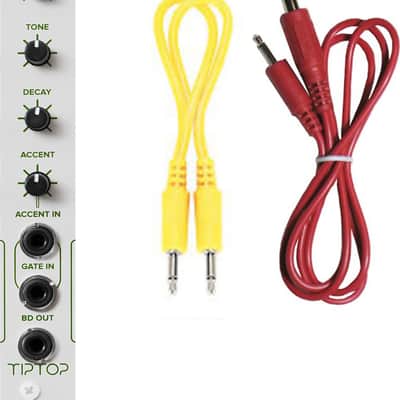

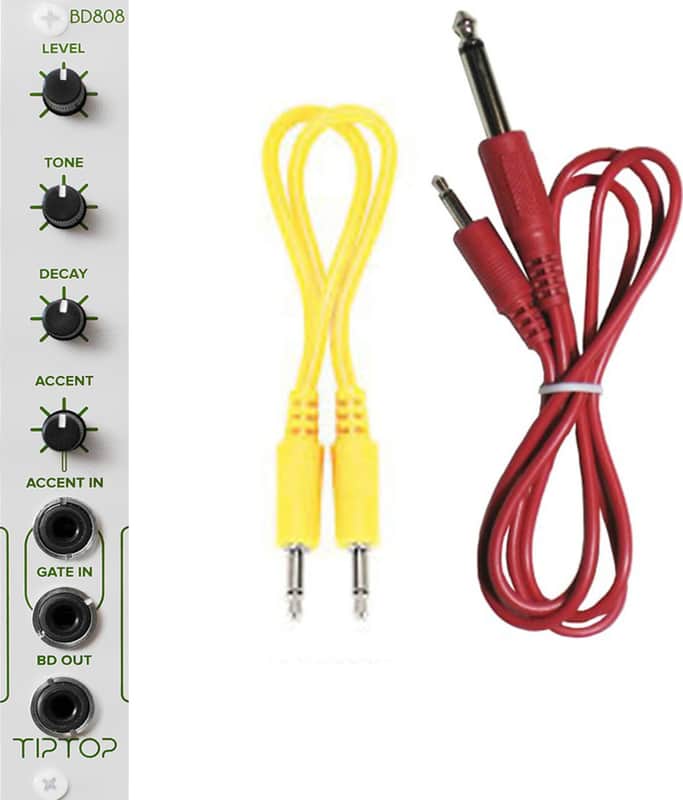

Introducing the BD808, part of Tiptop's new series of drum modules that brings analog percussion into the modular synth world, instantly turning your system into a self-contained music machine. It's small size, minimally discrete design, and modern production methods have allowed tiptop to bring the world's most famous bass drum sound generator back into production at a very low cost. The real thing is here again.The BD808 is Roland's TR-808's bass drum circuit adapted for use in eurorack modular synthesizer format and was tested to sound like a fresh machine coming out of the assembly line back in the 80's. The adaptation to modular format has allowed tiptop to add some special features such as independent accent levels, a high-powered gain stage, dual input-pulse-shaper and extended decay- all this without compromising the original signature sound of the TR-808.

Product Features

• Power: +12v@13ma and -12v@6ma
• Size: 4 hp / 1.4" deep

Attributes

• Type (X): Bass Drum Generator
• Color (X): Silver

Included Items

Introducing the BD808, part of our new drum module series that brings the iconic analog percussion of the Roland TR-808 into the modular synth world. This compact, minimalist module is cost-effective due to modern production methods, reviving the renowned bass drum sound. The BD808 adapts the TR-808’s Bass Drum circuit for Eurorack format, retaining the classic 80’s sound while adding new features. These include an independent Accent level, a high-powered gain stage, dual input pulse-shaper, and extended decay. The integrated high-powered gain stage can produce signals up to 20Vpp, allowing for a range of harmonized bass drum sounds from sharp attacks to distorted tones. The dual pulse-shaper circuit ensures stable sound from various pulse sources, making integration into your modular setup seamless. These enhancements unleash the power of true analog drums, delivering impactful bass sounds.

Attributes

• Color: White

Technical Specifications

• Type: Synth Module
• Inputs: 1 x 1/8" (accent), 1 x 1/8" (gate)
• Outputs: 1 x 1/8"
• Processing Type: Analog
• Power Supply: Requires Eurorack Case and Power Supply
• HP Size: 4HP

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Yellow

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Red

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"
