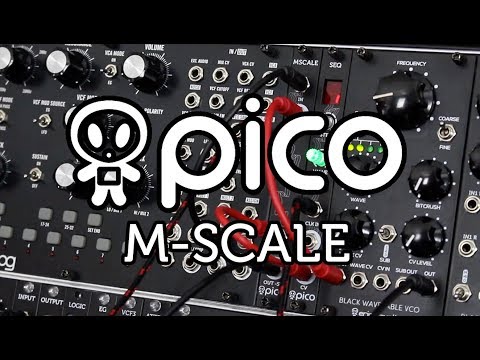

Those, who own Moog Mother 32 know, that it requires -5V - +5V on 1V/oct input to operate in full range, while the eurorack standard is 0V - +10V. So, to control Moog Mother 32 from a eurorack sequencer you need to bias a sequencer output for 5 volts down. And vice versa, Moog Mother 32 sequencer outputs -5V - +5V on 1V/oct output, and, if you wish to control some eurorack VCO from Moog Mother 32, you need to bias it 5 volts up. This is exactly what MSCALE does: it has two sections, upper one adds 5V to the input voltage, other subtracts 5V form the input voltage. Of course, the module is not limited for use with Moog Mother 32 only. You can use it as a regular eurorack precision voltage scaler. Features: Precision scaler to adapt Moog Mother 32 1V/oct to Moog to eurorack section Eurorack to Moog section High precision, high temperature stability Skiff friendly, compact design Dimensions 3 HP 25 mm deep Current Draw 6 mA +12V 6 mA -12V

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • Pico MScale
Categories
Synth Module Function
  • Controller
Modular Synth Format
  • Eurorack
Horizontal Pitch
  • 3HP
