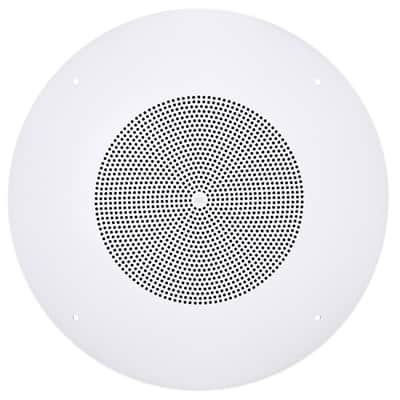

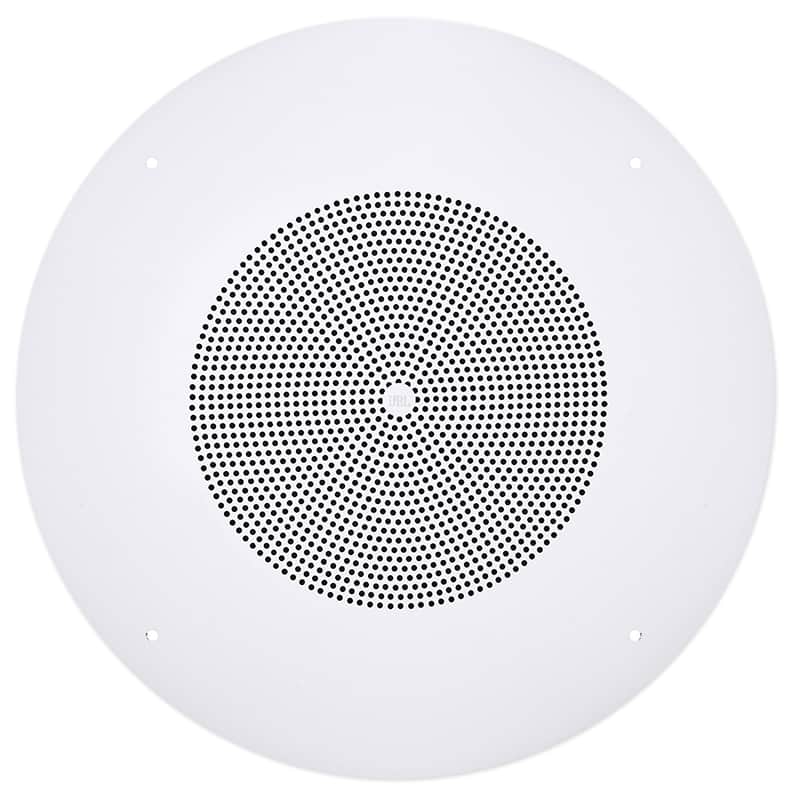

JBL CSS8008 8" Commercial 70V/100V 5w Ceiling Speaker 4 Restaurant/Bar/Cafe

Authorized JBL Dealer!

Description:

200 mm (8 in) Commercial Series Ceiling Speakers
JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Features:

• JBL CSS8008 8" Commercial 70V/100V 5 Watt Ceiling Speaker for Restaurant, Stores, etc.
• Driver Size: 200mm (8") Dual Cone
• Driver Sensitivity: 96 dB
• Frequency Range: 55 Hz - 16 kHz
• Coverage: 120°
• Driver Continuous Power Handling: 15 Watts
• 100V Taps: 5W, 2.5W, 1.3W
• 70V Taps: 5W, 2.5W, 1.3W, 0.7W
• 25V Taps: 5W, 2.5W, 1.3W, 0.7W

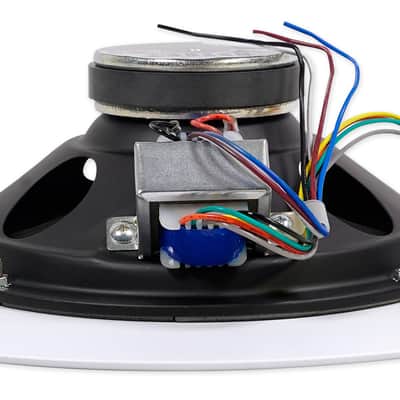

• Transformer Insertion Loss: 1.5 dB Maximum
• Transformer Connection: Bare Wire
• Motor Mass: 200 g (7 oz.)
• Matching CSS Backcan: CSS-BB8
• Bolt Mounting Circle to Backcan: 4 points on 11.25" diameter
• Cutout Diameter (Open-Back): 216 mm (8.5")
• Cutout Diameter (In CSS-BB Backcan): 295 mm (11.7")
• Depth (Behind Grille): 71 mm (2.8")
• Grille Diameter: 327 mm (12.9")
• Product Weight: 2.8 Lbs.

for the Installation Guide
