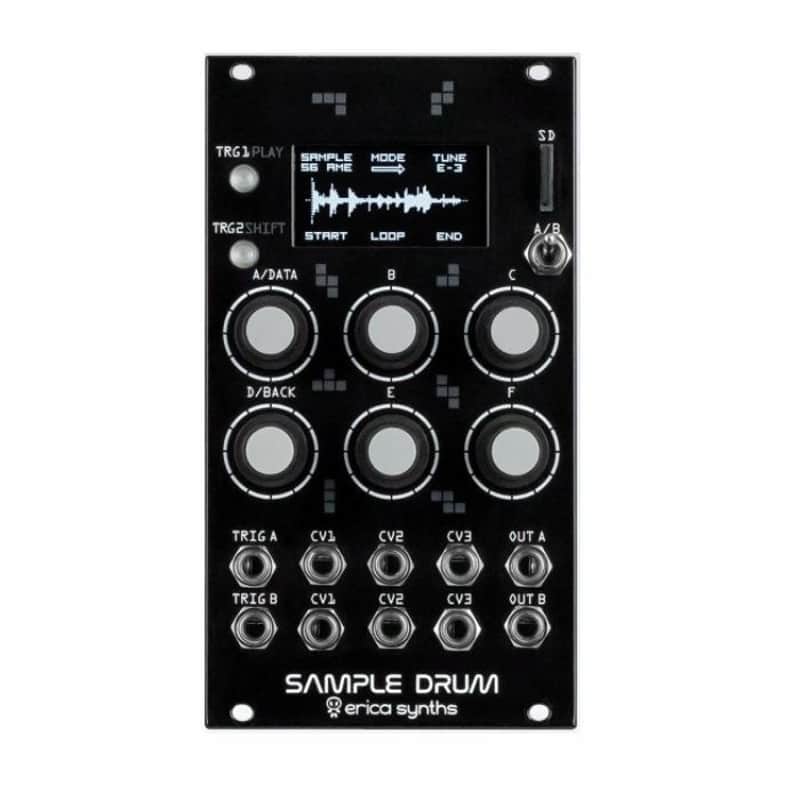

Performance oriented Sample Drum brings you two independent drum sounds or loops with plenty of manual and CV controlled parameters. Samples are stored on the microSD card, and OLED screen makes working with samples instant and easy. Sample Drum allows you to slice up loops directly in your modular system and rearrange them to taste. For processing, there are tuning functions (including 1 v/octave pitch tracking) and virtual VCAs plus AD envelopes. Thanks to the module's dual-channel concept, two loops can be combined. It is also possible to load one-shot samples instead of entire rhythms, of course. A total of six CV inputs guarantees lively results. Sample Drum is composed of two identical audio players. WAV files (including cue points) are fed to the module via a micro SD card. Loops can be cut into several sections using the Data, Start and End potentiometers. The resulting slices may be played back in any order imaginable. A tune control allows real-time pitch changes. Additionally, there is a virtual VCA plus AD envelope per slice. - But that's not all! There are three CV inputs per channel, which can be routed to any parameters. It is even possible to play sounds according to the 1 v / octave standard. Results are emitted via one output per player. Dimensions 14 HP Current Draw 95 mA +12V 2 mA -12V
