Manufacturer Description:

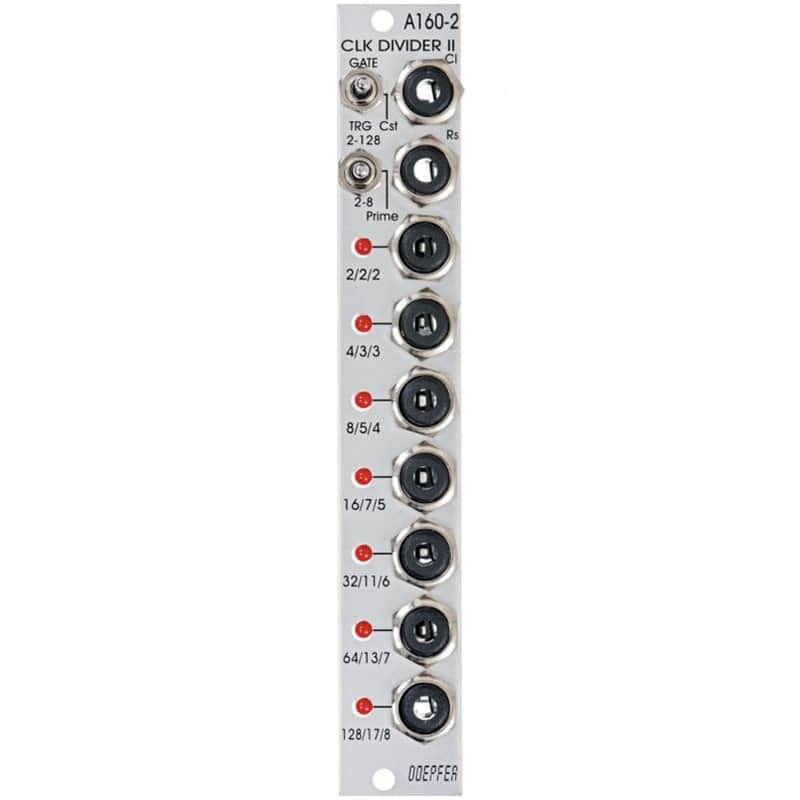

Module A-160-2 is an enhanced version of the standard clock divider
A-160. The module is a frequency divider for clock/trigger/gate signals,
designed to be a source of lower frequencies, particularly for rhythm
uses. The Clock input will take any digital signal from, eg., an LFO,
MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you
have access to three sets of seven different sub-divided clock signals,
from half the clock frequency down to 1/128. The low/high levels of the
output signals are 0V and about +10V. The A-160-2 also has a reset
input. Whenever a reset signal is sensed, all outputs are set to certain
levels which depend upon the selected mode.

These are the most important features of the module:

Three different sets of dividing factors, selected by a three-position switch at the front panel:

power of two: 2, 4, 8, 16, 32, 64, 128

prime numbers: 2, 3, 5, 7, 11, 13, 17

integer: 2, 3, 4, 5, 6, 7, 8

Two output modes, selected by a two-position switch at the front panel:

Gate mode: outputs act like the outputs of typical binary dividers

Trigger mode: in this mode the outputs are AND-wired with the
clock signal (i.e. the clock pulsewidth affects the pulsewidth of the
outputs)

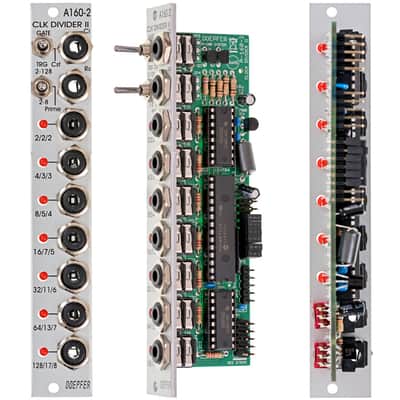

Clock edge type selected by a jumper on the pc board:

positive: the rising edge of the clock signal triggers the state change of the outputs

negative: the falling edge of the clock signal triggers the state change of the outputs

Reset behaviour by two jumpers on the pc board:

level triggered: the level at the Reset input triggers the Reset

edge triggered: the edge of the signal at the Reset input triggers the Reset

positive: a high level (> 2.5V) or the rising edge at the Reset input triggers the Reset

negative: a low level (< 1 V) or the falling edge at the Reset input triggers the Reset

Output polarity selected by a jumper on the pc board:

positive: non-inverted outputs

negative: all seven outputs are inverted*This module is NOT compatible with the A-161*
