Retrovibe Stinger '77 Classic MM Stingray Bass EQ pre-amp 2 band pre-EB circuit

Brand New
$99.27
+ $25.90 Shipping
3 in stock
Watch this listing to get price drop alerts

14-Day Return Policy

Enjoy peace of mind with your new gear

Shipped From
Retrovibe Guitars
Bath, United Kingdom
90
Sales
100+
Joined Reverb
2016
Preferred Seller
Quick Shipper
Reverb Protection

Buy with Confidence – Reverb Protection has you covered

  • Live support from an expert team of musicians
  • Simple and straightforward returns
  • A safe community for finding the gear you want

About This Listing

NEW FEATURES: 16mm pots for fitting in smaller builds. Centre detent on treble boost/cut pot.

This circuit is based on the classic 2-band EQ circuit fitted to the original pre-Ernie Ball Musicman Stingray basses. It is powered by a 9V battery (not supplied) and all components you need are wired up and ready to go. Just connect your pickup and you are away.

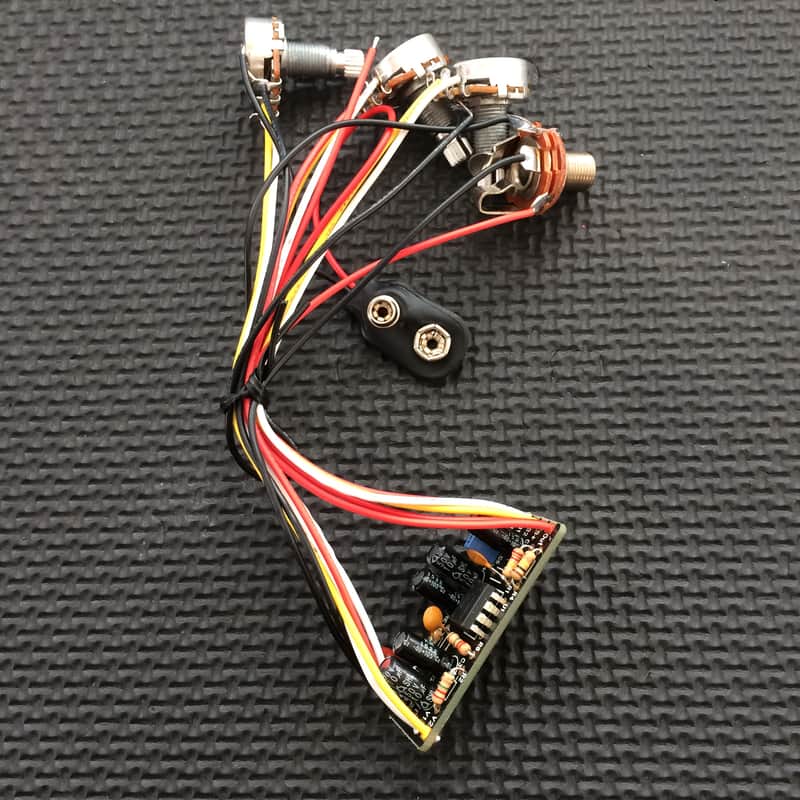

The controls are Volume, Treble cut/boost and Bass boost as per the original. All pots are pre-wired as is the jack socket which also acts as a switch to turn the pre-amp off when no cable is connected - just like the original.

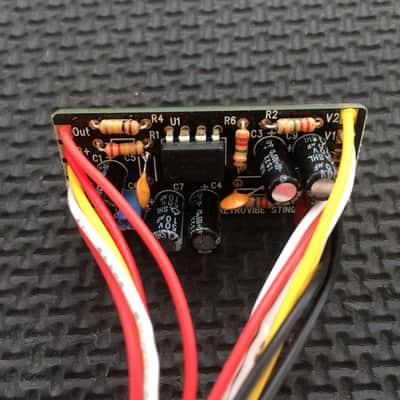

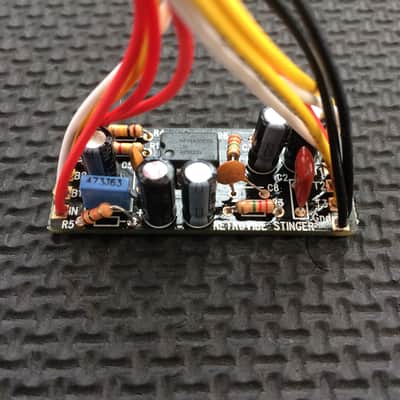

The circuit itself measures just 48mm x 20mm and all pots are small, 16mm to allow the Stinger to be fitted in smaller cavities.

Precise cut and boost figures are hard to specify for this pre-amp. As many of you will know it is suspected that Leo Fender chose to produce a pre-amp which gave a distinctive tone rather than smooth cut and boost curves. This circuit was produced to precisely reproduce that classic Stingray tone and I am certain you will not be disappointed with it!

I have attached the circuit diagram for the pre-amp so if you want to build one yourself you can do so, however, I suspect you'll find it quicker and easier to buy one from me!

I have fitted this circuit into several of my basses and the tone is fabulous. You can dial up a huge range of sounds with real fat bottom end and whip-cracking treble. The biggest surprise to me was how well it worked on my fretless which now really sings.

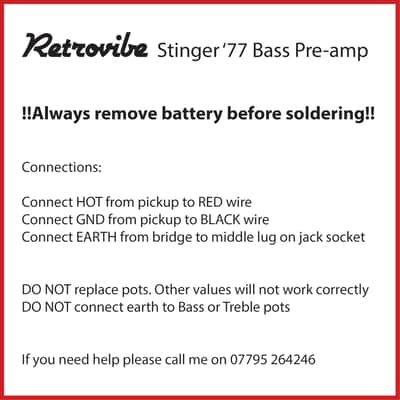

To install the circuit simply connect the Black wire from the Stinger to the earth connection from your pickup, then the Red wire from the Stinger to the hot (+ve) connection from your pickup.

Please note: the control pots used are very specific, non-standard values. You cannot connect the existing pots from your bass to this circuit and expect it to function correctly. Use the pots supplied, that's why they are there!

The Stinger '77 is fitted as standard on the Retrovibe EVO Davie504 Signature model and you can hear a range of the tones in the linked video.
