Factory sealed

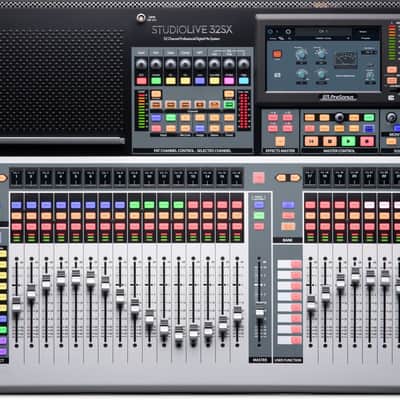

Loaded with the processing power, studio-grade audio quality, and flexible routing options that made StudioLive mixers famous, the StudioLive 32SX is the perfect compact 32-channel digital mixing solution. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32SX digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors—including 4 stereo reverberation systems, and Fat Channel plug-in models on every input and mix. The low profile of the StudioLive 32SX makes it an ideal solution for any mixing environment where desk real estate is at a premium. The split-fader workflow lets you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. With 32 XMAX mic preamps and 16 balanced mix outputs, the StudioLive 32SX packs connectivity and power into an efficient use of space.

Computer system requirements:

Below are the minimum computer-system requirements for UC Surface, QMix-UC, and Studio One®.

Mac

• macOS® 10.11 or higher (64-bit only)
• Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
• 4 GB RAM (8 GB or more recommended)

Windows

• Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
• Intel Core 2 Duo (Intel Core i3 or faster recommended)
• 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

• USB 2.0 port
• Internet connection
• Internal or external 7200 RPM storage drive highly recommended
• 30 GB hard disk space
• Monitor with 1366x768 resolution

iOS

• iOS 10 or later
• iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)

Android

• Android™ 5.0 (Lollipop) or later
• Android smartphone (QMix-UC)
• Android tablet (8-inch) with 1024x768 resolution (UC Surface)

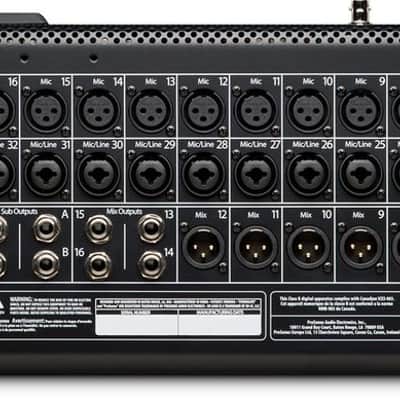

Technical Specifications Mi crophone Preamplifier

Input Type

XLR Female, balanced

Frequency Response to Main Output (at unity gain) 20-20 kHz, ±0.5 dBu

Input Impedance 1 kΩ

THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) 94 dB

Common Mode Rejection Ratio (1 kHz at unity gain) 65 dB

Gain Control Range (±1 dB) 0 dB to +60 dB

Maximum Input Level (unity gain) +12 dBu

Phantom Power (±2 VDC) 48 VDC, switchable per channel

Line Inputs

Type ¼” TRS Female, balanced

Frequency Response to Main Output (at unity gain) 20-20 kHz, ±0.5 dBu

Input Impedance 10 kΩ

THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) 94 dB

Maximum Input Level +18 dBu

Tape Inputs

Type RCA Female, unbalanced (stereo pair)

Maximum Input Level +12 dBu, ±0.5 dBu

XLR Outputs

Type XLR Male, balanced

Maximum Output Level +24 dBu, ±0.5 dBu

Output Impedance 100Ω

Line Outputs

Type ¼” TRS Female, balanced

Maximum Output Level +18 dBu, ±0.5 dBu

Output Impedance 100Ω

Tape Outputs

Type RCA Female, unbalanced (stereo pair)

Maximum Output Level +18 dBu, ±0.5 dBu

Output Impedance 100Ω

Headphone Output

Type ¼” TRS Female, active stereo

Maximum Output 100 mW/ch. @ 60Ω load

Frequency Response 20 Hz – 20 kHz (± 0.5 dB)

THD+N 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd

S/N Ratio 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk

Input to Output -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Adjacent Channels -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Digital Audio and Control

ADC Dynamic Range 115 dB (A-wtd, 48 kHz)

DAC Dynamic Range 115 dB (A-wtd, 48 kHz)

USB Recording Port USB 2.0, Type-B

AES/EBU Output XLR Male

Network Control Port RJ-45

AVB Audio Network Port Locking XLR Ethernet

Internal Processing 32-bit, floating point

Sampling Rate 48 kHz, 44.1 kHz

A/D/A Bit Depth 24

Reference Level for 0 dBFS +18 dBu

Total System Latency 1.9 ms (local routing, analog in-analog out, all processing active)

Clock

Jitter <20 ps RMS (20 Hz - 20 kHz)

Jitter Attenuation >60 dB (1 ns in, 1 ps out)

Power / Environmental

Connector IEC

Input-Voltage Range 90 to 230 VAC (±10%)

Power Requirements (continuous) 85W

Recommended Ambient Operating Temperature 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit

Physical

Height 6.51” (165.36 mm)

Width 25.98” (659.81 mm)

Depth 22.97” (583.84 mm)

Weight 30 lbs. (13.6 kg)
