Audio Technica - ATW-1701 - System 10 Portable Camera-Mount Digital Wireless System includes the AT

For more information on Audio-Technica pricing and bundling options please use the ‘Message Seller’ button on this listing. We love to hear from our customers.

With its compact, portable design, the System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between, the receiver features multiple mounting options to accommodate variety of cameras and recording devices.

Like all of the products in the System 10 wireless family, the Camera Mount provides three levels of diversity assurance: frequency, time and space. Instantaneous channel selection, sync and setup make the Camera-Mount extremely easy to use, while its digital 24-bit/48 kHz wireless operation provides the ultimate in sound quality and dependable performance. Also, as the receiver operates in the 2.4 GHz range, it remains completely free from TV interference at all times.

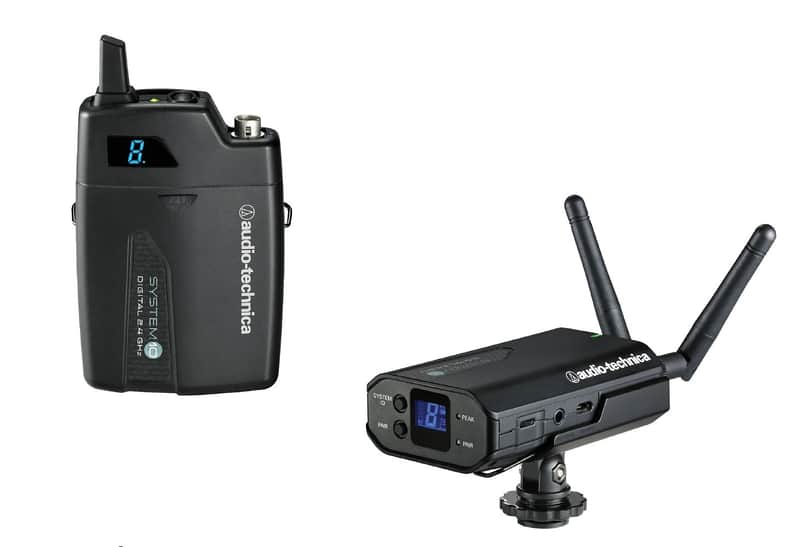

Available in handheld, lavalier and body-pack configurations, each System 10 Camera-Mount wireless system includes camera shoe mount in addition to the receiver and transmitter.

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance


• Operates in the 2.4 GHz range completely free from TV interference


• Ultra compact receiver size with multiple mounting options


• Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices


• Internal rechargeable 12-hr battery


• Separate headphone port and volume control for local audio monitoring


• Multi-pairing function to link single receiver with up to eight body-pack or handheld transmitters


• Three levels of diversity assurance: frequency, time & space


• Automatic frequency selection for seamless, interference-free operation


• Extremely easy operation with instantaneous channel selection, sync and setup

OVERALL SYSTEM SPECIFICATIONSOperating Frequencies2.4 GHz ISM bandDynamic Range>109 dB (A-weighted), typicalTotal Harmonic Distortion<0.05% typicalOperating Range30 (100') radius, 60 (200') diameter typical
Open range environment with no interfering signalsOperating Temperature Range0 to +40 (32 to 104 F)
Battery performance may be reduced at very low temperaturesFrequency Response20 Hz to 20 kHz
Depending on microphone type

RECEIVER SPECIFICATIONSReceiving SystemDiversity (frequency/time/space)Maximum Output Level3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: dBVPower Supply100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
BatteryInternal Battery: 3.7V rechargeable Li-ion batteryBattery Life12 hours
Depending on environmental conditions

Battery Charging Time: hours 30 minutes
Depending on environmental conditions

Charging Temperature Range: C to +35 (41 to 95 F)
Dimensions56.0 mm (2.20") x 91.4 mm (3.60") x 27.8 mm (1.09") D
Net Weight105 grams (3.7 oz)Accessories IncludedTwo antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable

BODY-PACK TRANSMITTER SPECIFICATIONSRF Power Output10 mWSpurious EmissionsFollowing federal and national regulationsInput ConnectionsFour-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9VBatteriesTwo 1.5V AA
not includedBattery Life>7 hours (alkaline)
Depending on battery type and use patternDimensions70.2 mm (2.76") x 107.0 mm (4.21") x 24.9 mm (0.98") DNet Weight100 grams (3.5 oz)
without batteries
