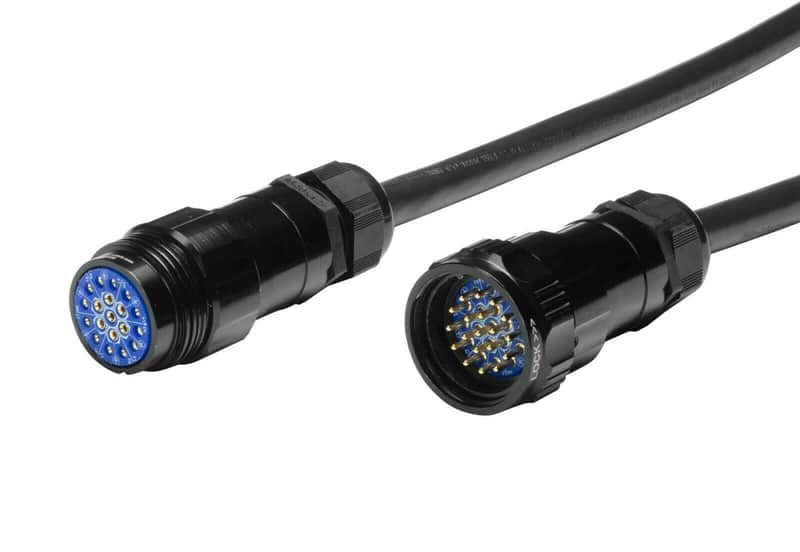

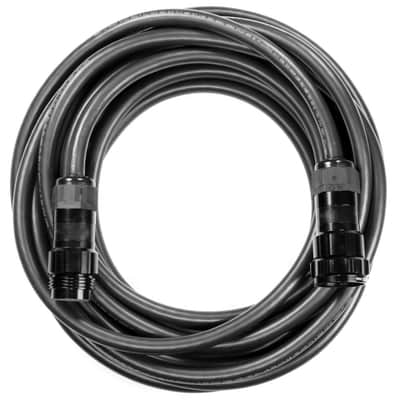

Elite Core Audio SOCO Socapex 19 Pin Lighting Power Extension Cable Phase3 SHOWSAFE series 50 ft

This Listing Is For A Brand New Elite Core SOCO Socapex 19 Pin Lighting Power Extension Cable Phase3 SHOWSAFE series 50 ft

These cables are hand built in the USA

SocapexConnectors:
Phase3 SHOWSAFE series (STD)

• UL Approvedto UL1977 Standard
• Amphenol Socapex SL419 Compatible
• 19 Pin connectors are all rated 25A
• Multi-point Gold Plated Contacts
• M40 metric cable glands for multicore socapex cable pinout (bush sizes10-32mm)
• Socapex Breakout Wire sizes from 12 to 14 AWG (1.5-2.5mm)
• IP67 ingress protection when mated
• Temperature Rating -55oC to +125oC
• Voltage Rating 600 VAC, 700 VDC max
• FMLB Earth contacts
• ROHS Compliant

Cable Description:
A Twelve (12) Gauge -- Fourteen (14) Conductor -- Bare Copper with PVCInsulation, Reverse Planetary Laid, Rugged, Oil Resistant, PVC Jacketed, HighlyFlexible Multi-Conductor Cable.

ConductorData:
Material Bare Copper
Gauge 12 AWG
Stranding 65 x 30
Insulation Data:
Material Polyvinylchloride
Nominal Wall Thickness .022”
Diameter (primary) .130”

Cabling Data:
Number of Conductors 14
Conductor Identification Cond. 1 Red, No Number
Cond. 2 - 12 White, Black Number
Cond. 13 Green
Cond. 14 Green with Yellow Stripe
O/A Tissue Tape
Conductor Arrangement Is Directly Compatible with Phase 3, Socapex and Veam VSC19 Pin Connectors.

Jacket Data:
Material Polyvinylchloride (Oil Resistant)
Color Black
Markings White Lettering
Nominal Wall Thickness .080”
Diameter (OD) .738”

Product Ratings:
Wt. / M feet Nominal 535 lbs./ 1M feet (.53 lbs./ft.)
Temperature Range -20°C to 105°C / 90°C / 75°C
Voltage 1000 Volts / 600 Volts

Approvals:
UL Approval TC-ER 90C DRY 75C WET 600V, UR AWM STYLE 20886 1000V 105C
CSA Approval cUR AWM I/II A/B 105C 600V FT4
RoHS RoHS Compliant
REACH REACH 2007 Compliant
