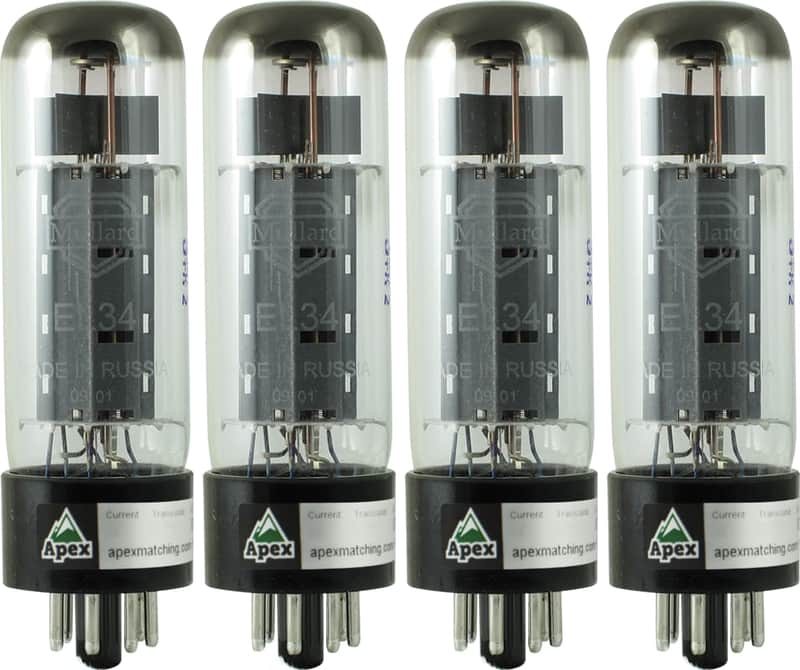

EL34, Mullard Reissue, Matched Vacuum Tube, Apex Matched Quad

Premium high-voltage power pentode. An extremely faithful reissue of the XF2 Mullard EL34 from the 1960s.

• Special grid windings give a unique sound for both guitar and hifi
• Perfect power tube for Dynaco ST-70 or vintage Marshalls, Hiwatt or other British Amps
• 6CA7 equivalent

These tubes are Apex® Matched.

Product Measurements

Diameter: 32 mm
Height: 111 mm
Min. Heater current: 1.35 A
Max. Heater current: 1.65 A
Min. Plate Current: 80 mA
Max. Plate Current: 120 mA
Min. Second grid current: 10 mA
Max. Second grid current: 20 mA
Min. Output Power: 8.5 W
Min. Slope of characteristic: 9.5 mA/V
Max. Slope of characteristic: 15 mA/V
Distortion factor: 13.5%
Min. Cathode - heater insulation resistance: 2.0 MΩ
Min. Filament voltage: 5.5 V
Max. Filament voltage: 7.0 V
Max. Cathode - heater voltage: ± 100 V
Max. Power dissipation at the plate: 25 W
Max. Power dissipation at the second grid: 8 W
