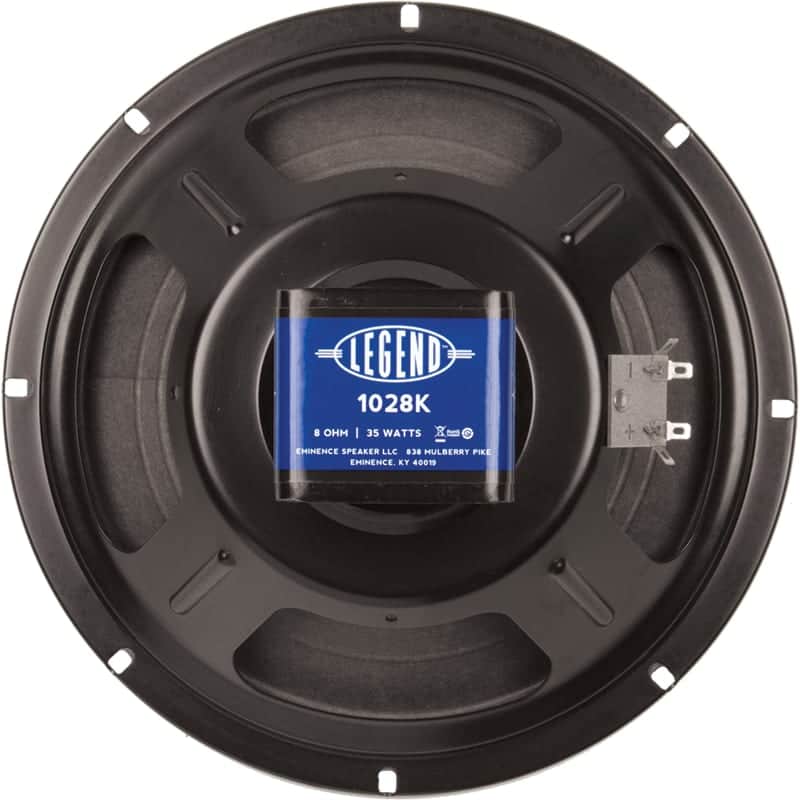

Lead/rhythm guitar 10" speakeR. Vintage American tone with moderate, but tight, percussive lows and extended highs

Product Measurements

Diameter: 10 in.
Nominal Basket Diameter: 10 in.
Nominal Impedance: 8 Ω
Power Rating: 35 W
Resonance: 95 Hz
Usable Frequency Range: 100 Hz - 5 kHz
Sensitivity: 97.4 dB
Magnet Weight: 6 oz.
Gap Height: 6.4 mm
Voice Coil Diameter: 1 in.
Resonance Frequency (ƒS): 95 Hz
D.C. Resistance (Re) : 5.8 Ω
Coil Inductance (le): 0.51 mH
Mechanical Q Factor (QMS): 17.96
Electrical Q Factor (Qes): 1.61
Total Q Factor (QTS): 1.47
Equivalent Acoustic Volume (VAS): 31.5 liters
Peak Diaphragm Displacement Volume (vd): 72.4 cm3
Mechanical Compliance (CMS): 0.19 mm/N
Force Factor (BxL): 5.7 Wb/m
Mechanical Moving Mass (MMS): 15 g
Efficiency Bandwidth Product (ebp): 59
Linear Displacement, maximum (XMAX): 2.1 mm
Surface Area Of Cone (sd): 344.9 cm2
Recommended Enclosure Volume, sealed: Acceptable
Recommended Enclosure Volume, vented: Acceptable
Driver Volume Displaced: 0.77 liters
Overall Diameter: 256.8 mm
Baffle Hole Diameter: 9.13 in.
Front Sealing Gasket: Yes
Mounting Hole Diameter: 5.6mm
Mounting Hole Bolt Circle Diameter: 243.8 mm
Depth: 4.8 in.
Coil Construction: copper voice coil
Coil Former: Polyimide former
Magnet Composition: Alnico magnet
Core Details: Non-vented core
Basket Material: Pressed Sheet Steel
Cone Composition: Paper cone
Cone Edge Composition: Paper cone edge
Dust Cap Composition: Solid composition felt dust cap
