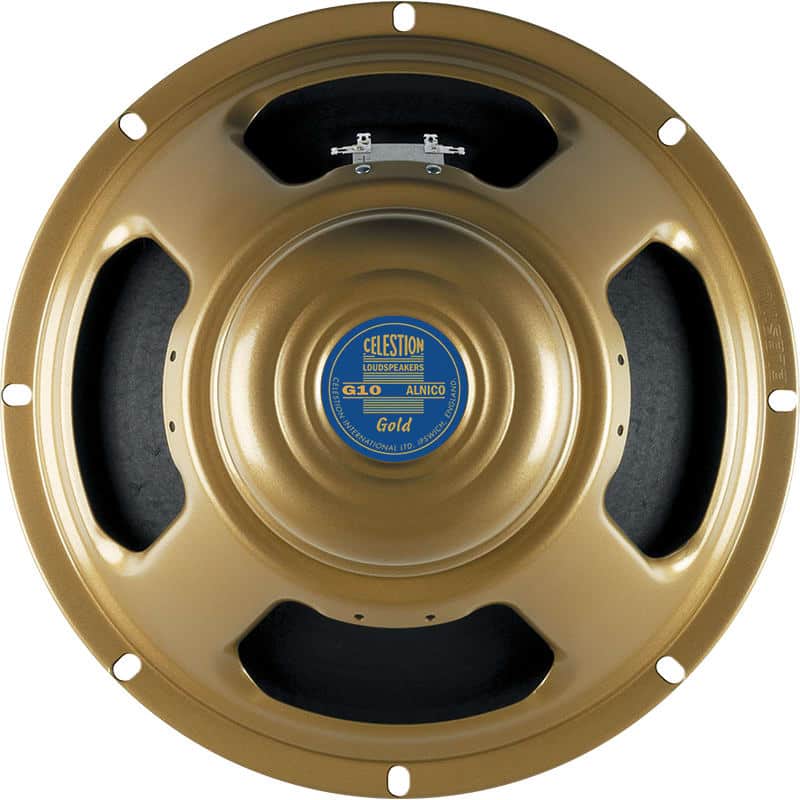

The G10 Gold is the ultimate 10" speaker, blending unmistakable Alnico class with a rich low-end, creamy midrange and vintage chiming top-end. Springy, warm, revealing and highly expressive, it can be used singly or in pairs to add a classy sheen to any amp, or in a 4x10 configuration for higher volume depth, warmth and shimmer, with less of the boom associated with 4x12 cabinets.

Product Measurements

Voice Coil Diameter: 1.75 in.
Magnet Weight: 33 oz.
Nominal Diameter: 10 in.
Power Rating: 40 W
Nominal Impedance: 8 Ω
Sensitivity: 98 dB
Chassis Type: Pressed steel
Voice Coil Material: Round copper
Magnet Type: Alnico
Frequency Range: 80 Hz - 6,000 Hz
Resonance Frequency (ƒS): 80 Hz
D.C. Resistance (Re): 8 Ω
Diameter: 10.0 in.
Overall Depth: 135 mm
Magnet Structure Diameter: 119 mm
Cut-out Diameter: 9.0 in.
Mounting Hole Diameter: 6.5 mm
Mounting Slots: 8
Mounting Hole Bolt Circle Diameter: 244 mm
