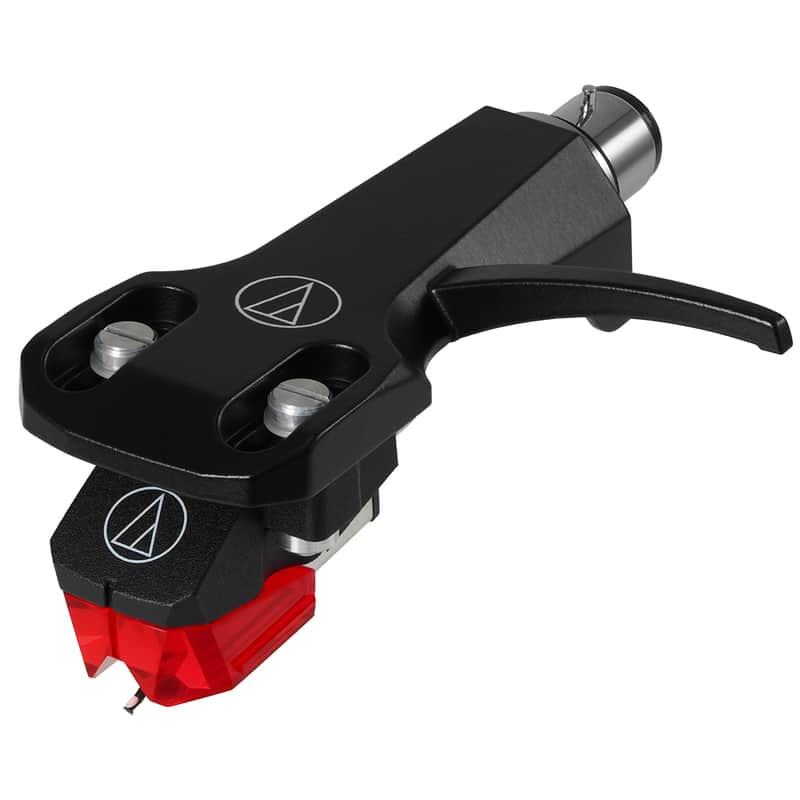

Audio Technica AT-XP5/H Headshell / Cartridge Combo Kit

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.

• 0.3 x 0.7 mil elliptical bonded stylus tip
• Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
• 5.5 mV high-level output
• Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
• Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
• Design offers maximum visibility of the stylus tip
• Great tracking and channel separation for high-fidelity sound
• Universal ½"-mount headshell for 4-pin turntable cartridges
• Frequency Response: 20-18,000 Hz
• Channel Separation: 20 (dB at 1 kHz)
• Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
• Stylus Construction: Bonded round shank
• Recommended Load Impedance: 47,000 ohms
• Output: 5.5 mV (1 kHz, 5 cm/sec.)
• Channel Balance: 2.0 dB (1 kHz)
• Stylus Shape: 0.3 x 0.7 mil elliptical
• Cantilever: Carbon fiber-reinforced ABS
• Mount: Half-inch
• Replacement Stylus: ATN-XP5
• Coil impedance: 6.7 k ohms (1 kHz)
• DC resistance: 990 ohms
• Recommended load capacitance: 100 to 200 pF
• Vertical tracking angle: 20°
• Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
• Weight (cartridge): 6.2 g (0.22 oz)
• Dimensions (cartridge and headshell): 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
• Weight (cartridge and headshell): 15.6 g (0.55 oz)
• Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver

  MPN: AT-XP5/H
