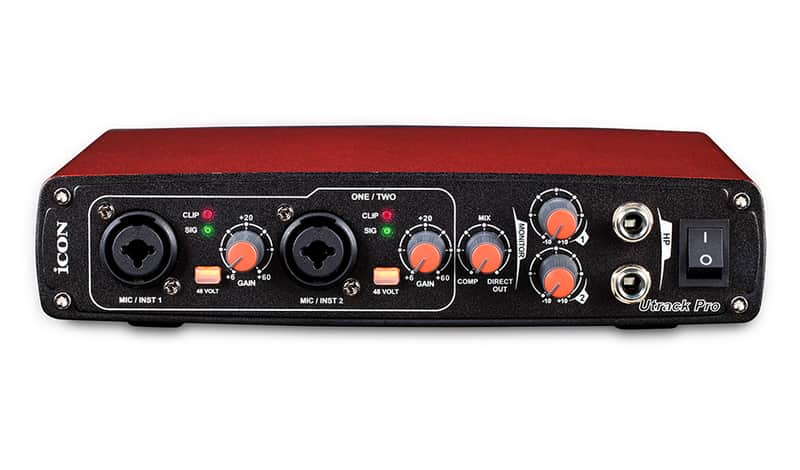

iCon Utrack Pro - USB Audio Interface w/ 2 Mic Preamps

Utrack Pro 4x4 analog balanced I/O, has dual mic/instrument preamp with gain control, LED metering, phantom & input gain control. Two analog inputs & four analog outs are 1/4” TRS. S/PDIF I/O on RCA connectors. Two headphone outs w/volume control. Rugged aluminum construction and compatible with Mac OS X, Windows XP, Vista, Windows 7.

• 4 x 4 analog balanced I/O
• Dual microphone/instrument preamps with gain controls, LED metering, phantom power and input gain
• Two analog inputs and four analog outputs on 1/4″ TRS jacks
• S/PDIF I/O on RCA coaxial connectors
• Supports sampling rates from 44.1Hz to 192KHz
• Two headphone outputs with assignable source and individual volume control
• Hardware Direct / PC Monitoring Adjustment knob
• Supports Direct Sound, WDM, ASIO and GIGA studio
• Compatible with Mac OSX (Intel CPU) and Windows XP, Vista (32bits), Windows 7 (32-bit/64-bit) ,Windows 8 (32-bit/64-bit)
• Full duplex,simultaneous record/playback
• Rugged aluminum construction

·         Mic/Inst Inputs 1/2 (Balanced; at Minimum Gain)

·         Frequency Response     22Hz to 22kHz (+/-0.1dB)

·         Dynamic Range 100dB, A-weighted

·         Signal-to-Noise Ratio     -100dB, A-weighted

·         THD+N <0.0061% (-90dB)

·         Crosstalk             -100dB @ 1kHz

·         Maximum Input level     -3.8dBu, typical

·         Input Impedance             Inst in: 500K Ohms, typical

·         Input Impedance             Mic in: 1.8K Ohms, typical

·         Adjustable Gain               > 50dB

·         Total Gain Range             +54dB

·         Line Inputs 3/4 (TRS)

·         Frequency Response     22Hz to 22kHz (+/-0.1dB)

·         Dynamic Range 100dB, A-weighted

·         Signal-to-Noise Ratio     -100dB, A-weighted

·         THD+N <0.0061% (-90dB)

·         Crosstalk             -100dB @ 1kHz

·         Nominal Output Level   Balanced:+4dBu, typical

·         Nominal Output Level   Unbalanced: -10dBv, typical

·         Maximum Output Level               Balanced: +10.2dBu, typical

·         Maximum Output Level               Unbalanced: +2.0dBV, typical

·         Input Impedance             10K Ohms, typical

·         Line Outputs 1-4 (TRS)

·         Frequency Response     22Hz 22kHz (+/-0.1dB)

·         Dynamic Range 102dB, A-weighted

·         Signal-to-Noise Ratio     -102dB, A-weighted

·         THD+N <0.003% (-90 dB)

·         Crosstalk             -100dB @ 1kHz

·         Nominal Output Level   Balanced: +4dBu

·         Nominal Output Level   Unbalanced: -10dBV

·         Maximum Output Level               Balanced: +10.2dBu, typical

·         Maximum Output Level               Unbalanced: +2.0dBV, typical

·         Output Impedance         150 Ohm

·         Load Impedance             600 Ohm minimum

·         Headphone Output 1 & 2 (at Maximum Volume; Into 100 Ohm load)

·         Frequency Response     22Hz to 22kHz (+/-1dB)

·         Power into Ohms             90 mW into 100 Ohms

·         THD+N <0.06% (-66dB)

·         Signal-to-Noise Ratio     -90dB, A-weighted

·         Max Output Level into 100 Ohms             +2.0dBV, typical

·         Output Impedance         75 Ohm

·         Load Impedance             32 to 600 Ohms

·         General

·         Weight 1.58kg (3.48lbs)

·         Dimensions       225 x 200 x 55 mm

·         Dimensions       8.9” x 7.9” x 2.2”

NOTE TO MAC OSX 10.11 EL CAPITAN USERS: Due to a change in the OSX core audio functionality, ICON USB audio devices are currently not compatible with OSX 10.11 El Capitan. We are working diligently to repair this issue, and hope to arrive at a solution soon. In the mean time, please remember that ICON audio interfaces are still class compliant with previous OSX versions.

If you would like to join our El Capitan beta test team to receive OSX 10.11 drivers as soon as they become available, please sign up using the , and indicate that you would like to join the beta test team. We are very sorry for the inconvenience.

OS Compatability:

iOS 7-11               No

Mac OS 10.8(Intel CPU/32-bit)   Yes

Mac OS 10.8(Intel CPU/64-bit)   Yes

Mac OS X 10.9   Yes

Mac OS X 10.10 Yes

Mac OS X 10.11 No

Mac OS X 10.12 No

Windows XP (32-bit)       Yes

Windows XP (64-bit)       Yes

Vista (32-bit)     Yes

Vista (64-bit)     Yes

Windows 7 (32-bit)         Yes

Windows 7 (64-bit)         Yes

Windows 8 (32-bit)         Yes

Windows 8 (64-bit)         Yes

Windows 8.1 (32-bit)     Yes

Windows 8.1 (64-bit)     Yes

Windows 10 (32-bit)       Yes

Windows 10 (64-bit)       Yes
