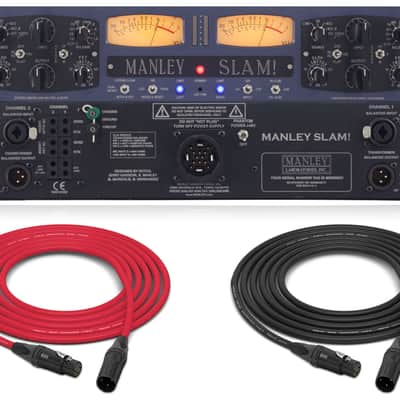

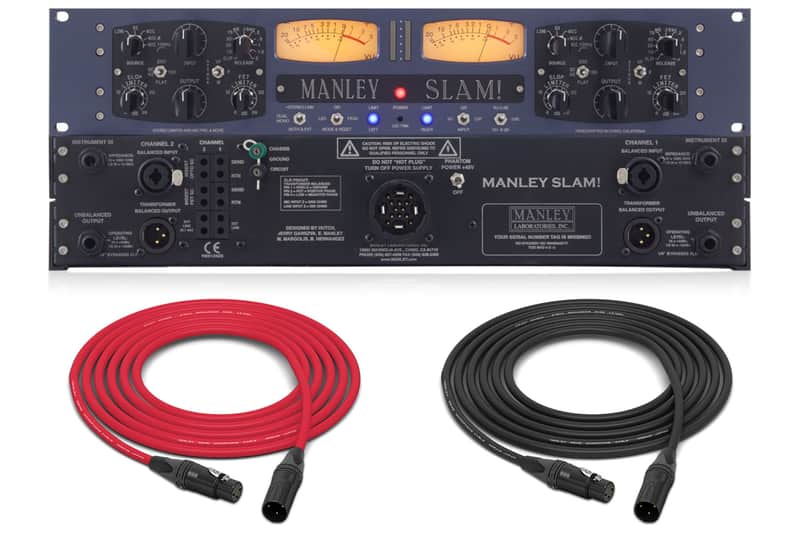

Manley Labs Slam! Stereo Limiter + Mic Pre (Mastering Version)

BRAND NEW MANLEY LABS SLAM! STEREO LIMITER + MIC PRE (Mastering Version)

2-YEAR WARRANTY |  PRO AUDIO LA IS AN AUTHORIZED DEALER

• Input tubes: 2 x 12AT7A NOS GE specially selected by Manley Labs for low-noise and stable bias

• Output tubes: 2 x 6414W NOS USA dual triodes

• I/O: Manley transformer coupled balanced inputs and outputs

• Micpre: Selectable 48V phantom power and phase reverse

• Gain: 60dB max Micpre, 43dB max DI, 20dB max

• Input impedance: 2000Ω Micpre, 1MegΩ DI

• FET Limiter: Attack: approx. 100μS; Release: 10mS to 2Sec; Ratio: better than 20:1

• ELOP Limiter: Attack: approx. 10mS for 6dB GR; Release: 2.5 Sec; Ratio: 10:1

• Frequency response: 5Hz to 60KHz

• Maximum output: +32dBm, +30dBm (into 1KΩ load)

• THD+N: <.05% @ 1KHz •  Dynamic Range: 115dB typical

• Output impedance: 200Ω

• Outboard power supply: factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.

• Operating mains voltage: changeable with power transformer re-wiring via switch and fuse value change.

• Mains voltage frequency: 50~ 60Hz •  Size: 19” X 12” X 3.5” (occupies 2u)

• Shipping weight: 25 lbs.

• BUYERS SHOULD CONTACT US TO CONFIRM CURRENT AVAILABILITY
