Doepfer a-190-5: Polyphonic USB/Midi-to-CV/Gate Interface

Brand New
$370
+$7.50Shipping
As low as $33/month with
1
4 in stock
Watch this listing to get price drop alerts
Shipped From
NOISEBUG
Pomona, CA, United States
4,352
Sales
6000+
Joined Reverb
2016
Preferred Seller
Quick Responder

Find More on Reverb

Sell Yours NowWhat is this?Anyone can sell on Reverb. List your item today to get it in front of thousands of eyes, quickly and easily.
Reverb Protection

Buy with Confidence – Reverb Protection has you covered

  • Live support from an expert team of musicians
  • Simple and straightforward returns
  • A safe community for finding the gear you want

About This Listing

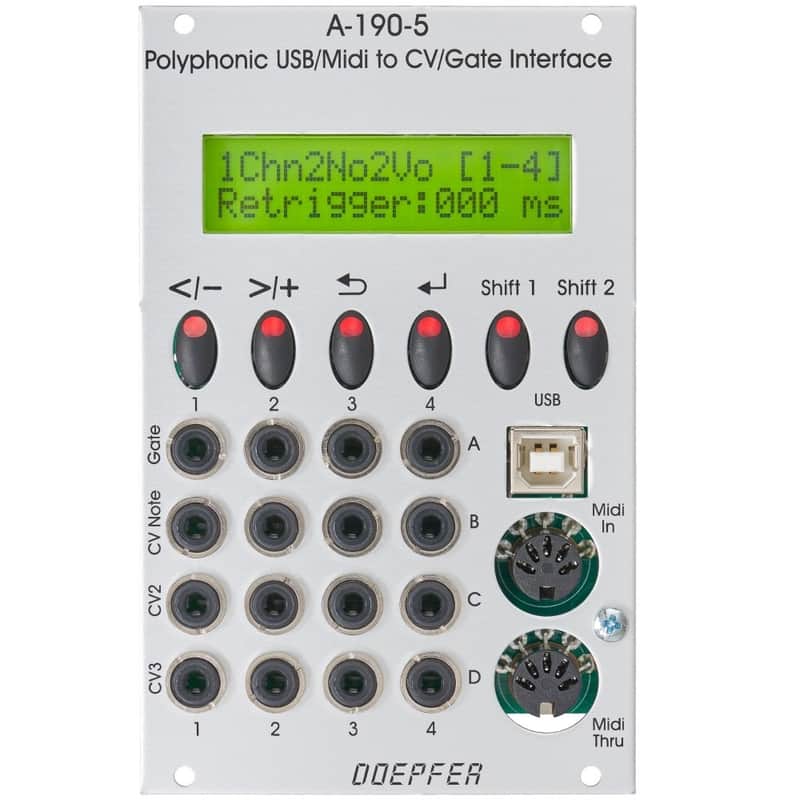

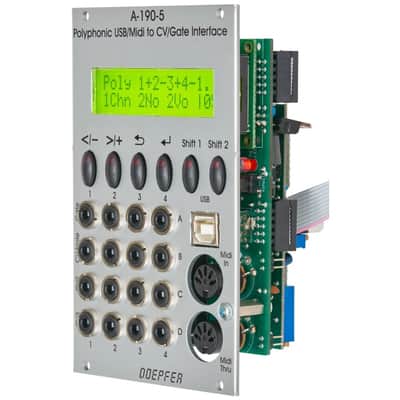

Module A-190-5 is a four voice Midi/USB to CV/Gate interface. For each voice a pitch control voltage (CV1, 1V/octave standard to control VCOs), a gate output (to control envelope generators) and two additional control voltages (CV2, CV3) are available. The two additional CV outputs can be controlled by Midi velocity, volume, modulation, pitch bend, after touch or free assignable Midi controllers.

These modes are planned (without obligation):

  • four voice monophonic (i.e. to control four monophonic voices by four succeeding Midi channels)
  • four voice polyphonic (i.e. to control four monophonic voices by one Midi channel) with several sub-modes (e.g. rotating / non-rotating)
  • two voice polyphonic (i.e. to control two monophonic voices by one Midi channel)
  • unisono

The mode is selected by means of momentary switches and is shown in the LC display. Certain parameters of each mode can be edited (e.g. the midi channel(s), the midi reference note for 0V CV, assigned controllers for CV2 and CV3). The parameter values (e.g. midi channels) are shown in the display and can be modified by means of the momentary switches. In Play mode the LEDs of the first four switches display the gate states.

Product Specs

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.learn more
